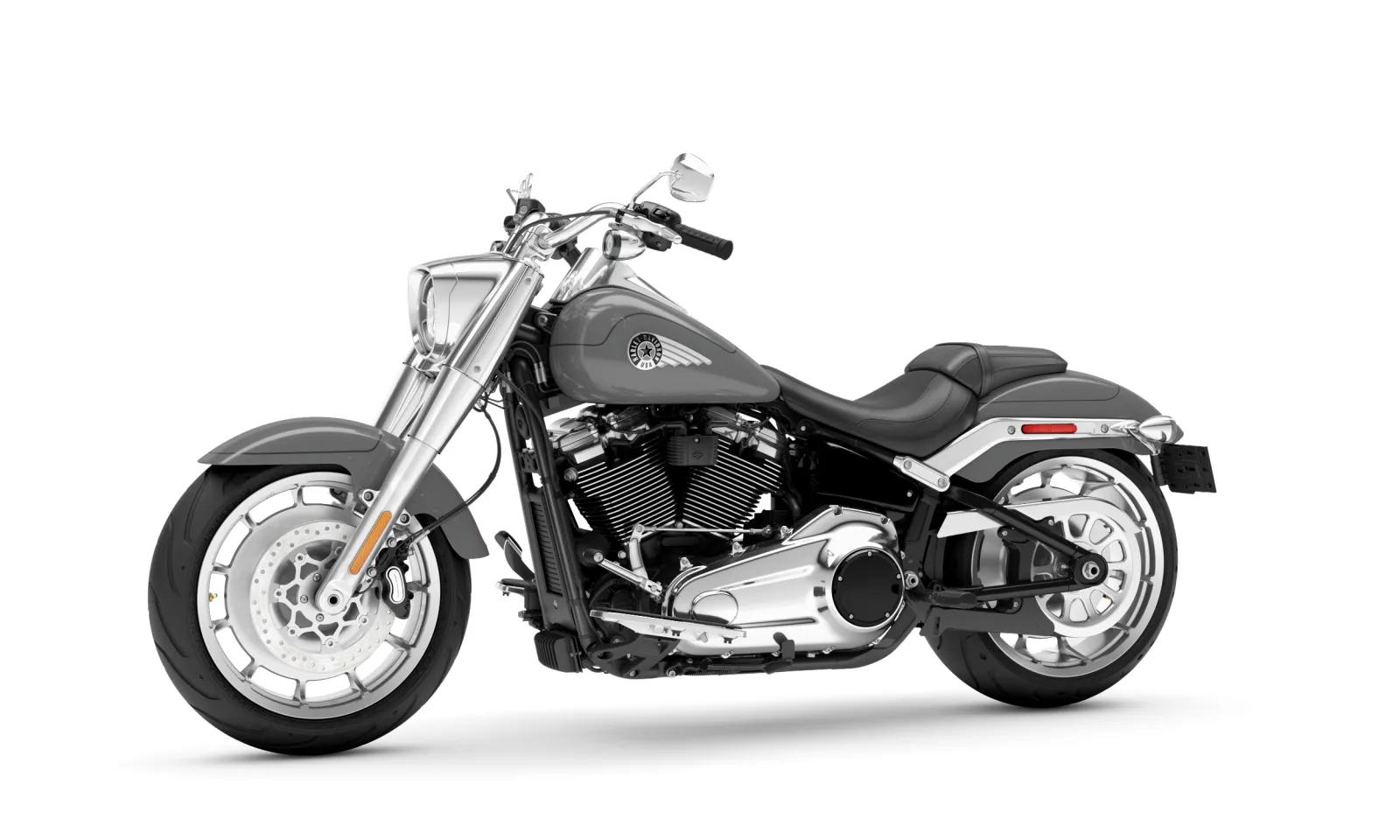

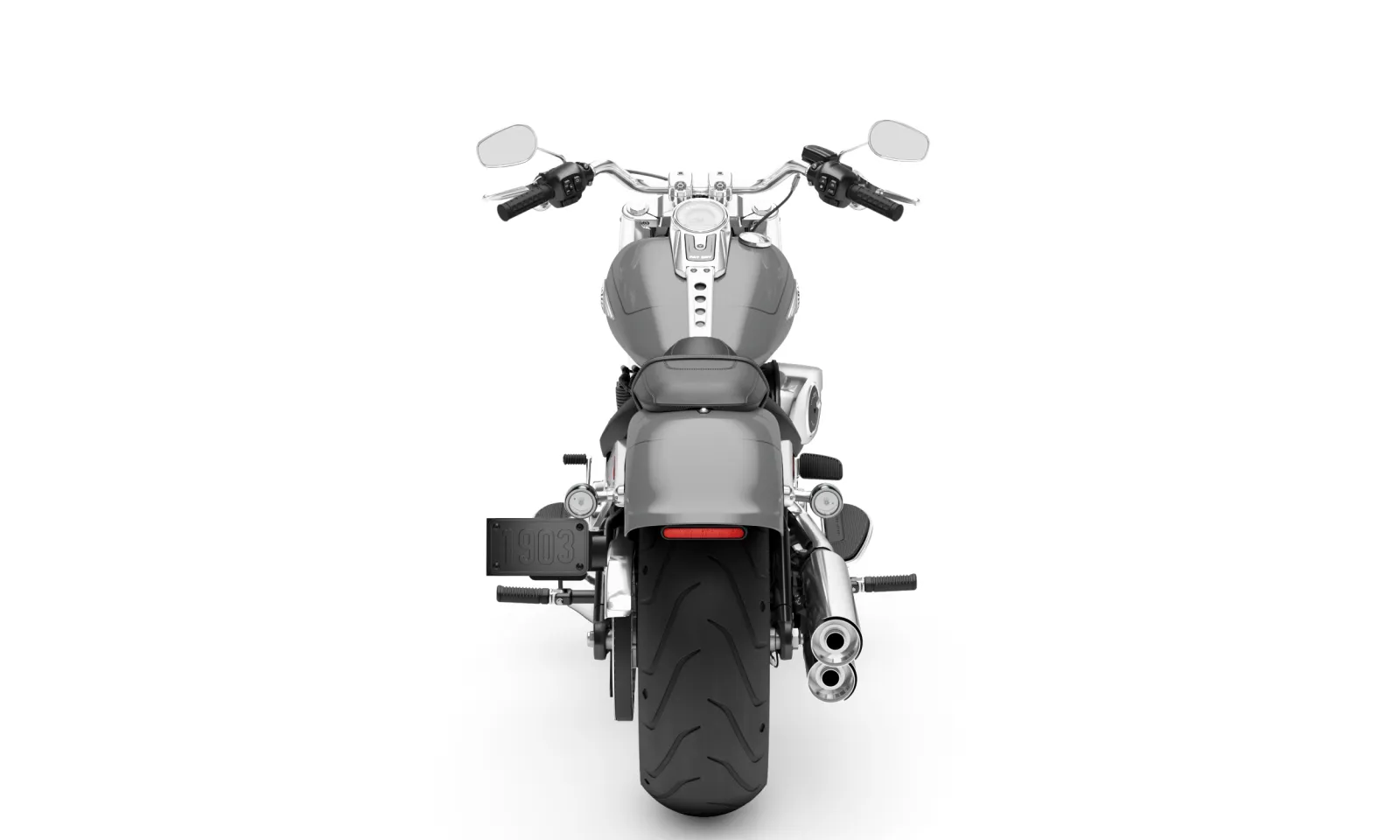

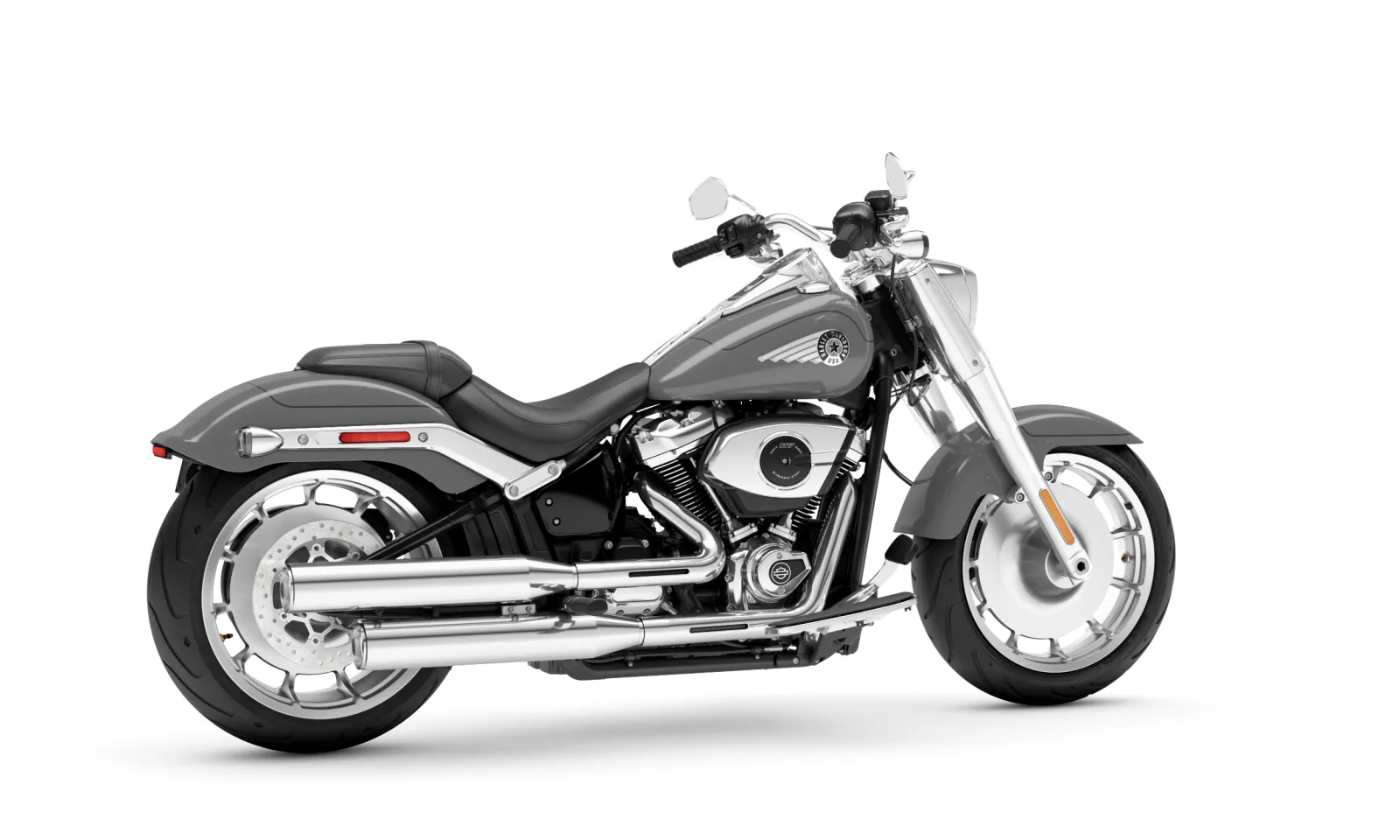

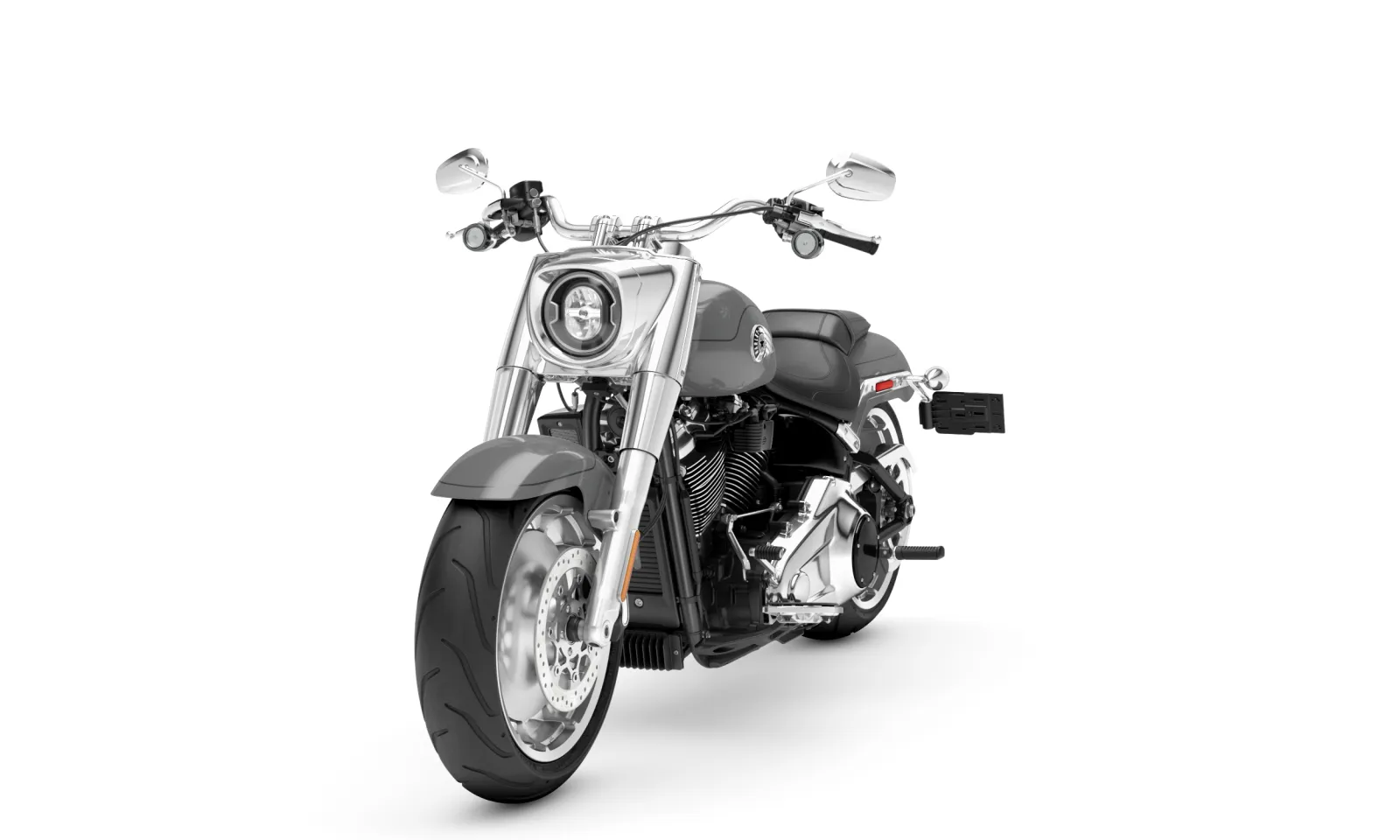

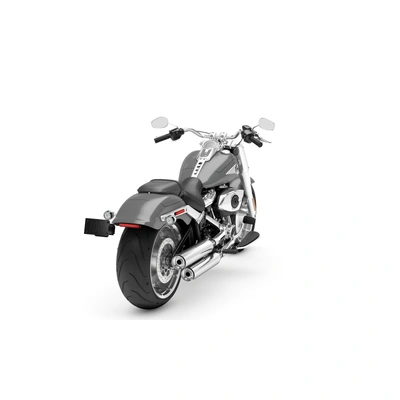

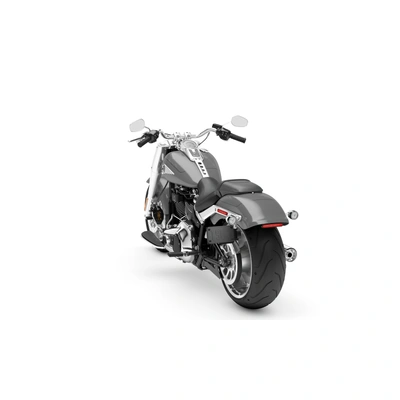

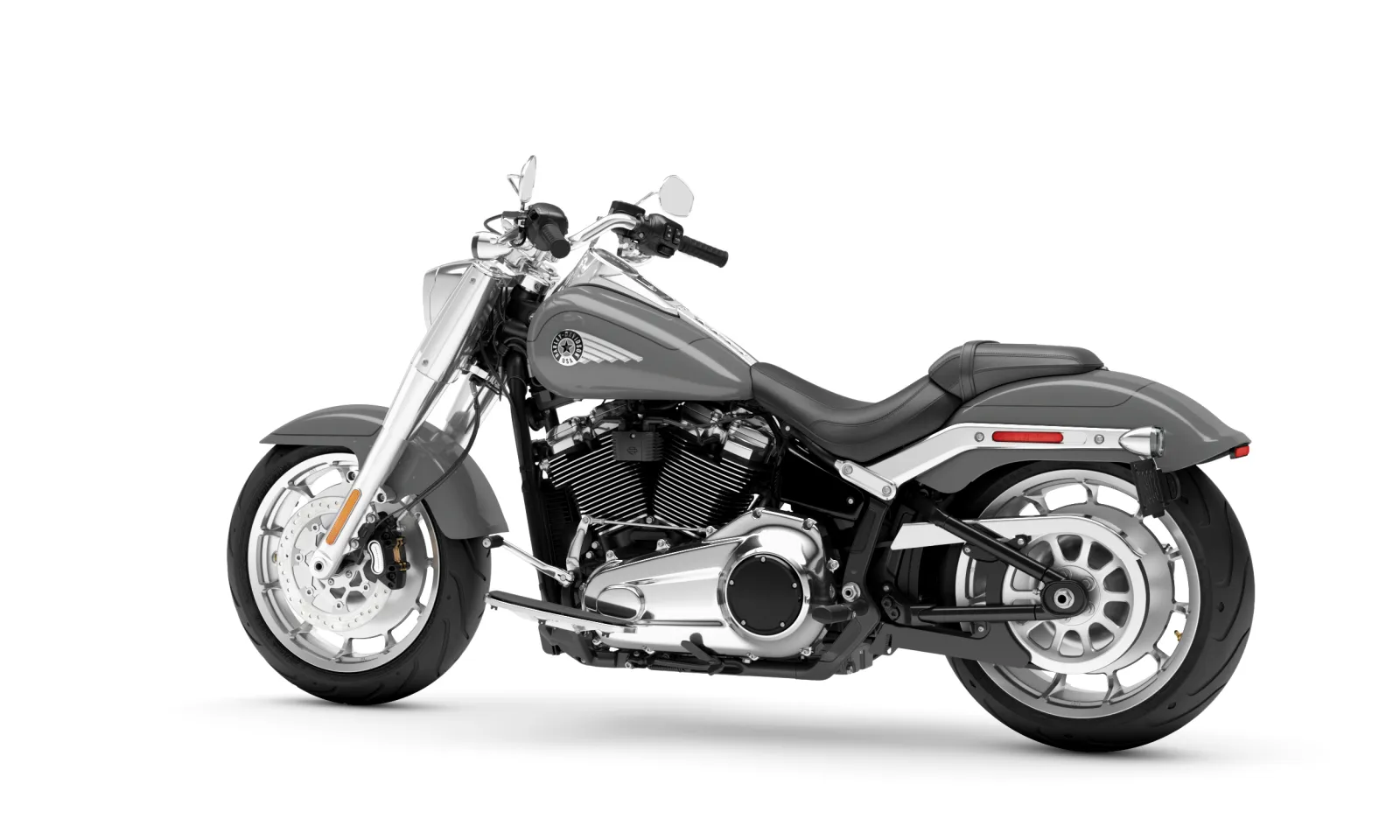

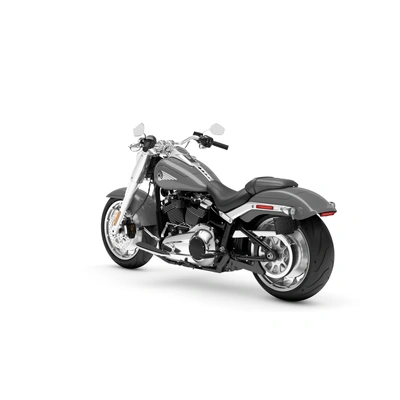

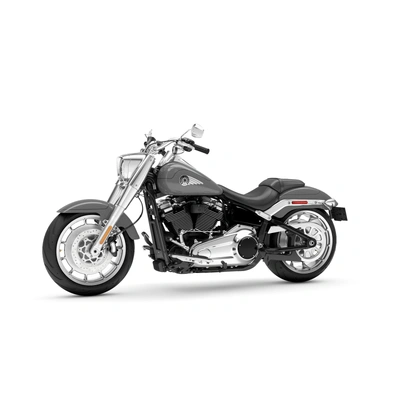

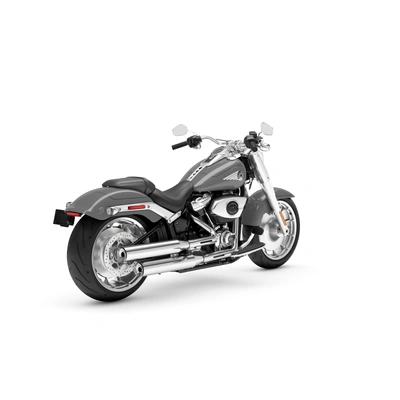

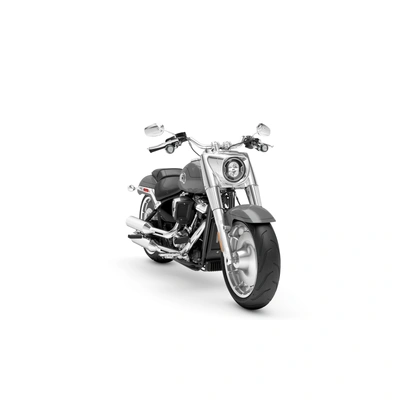

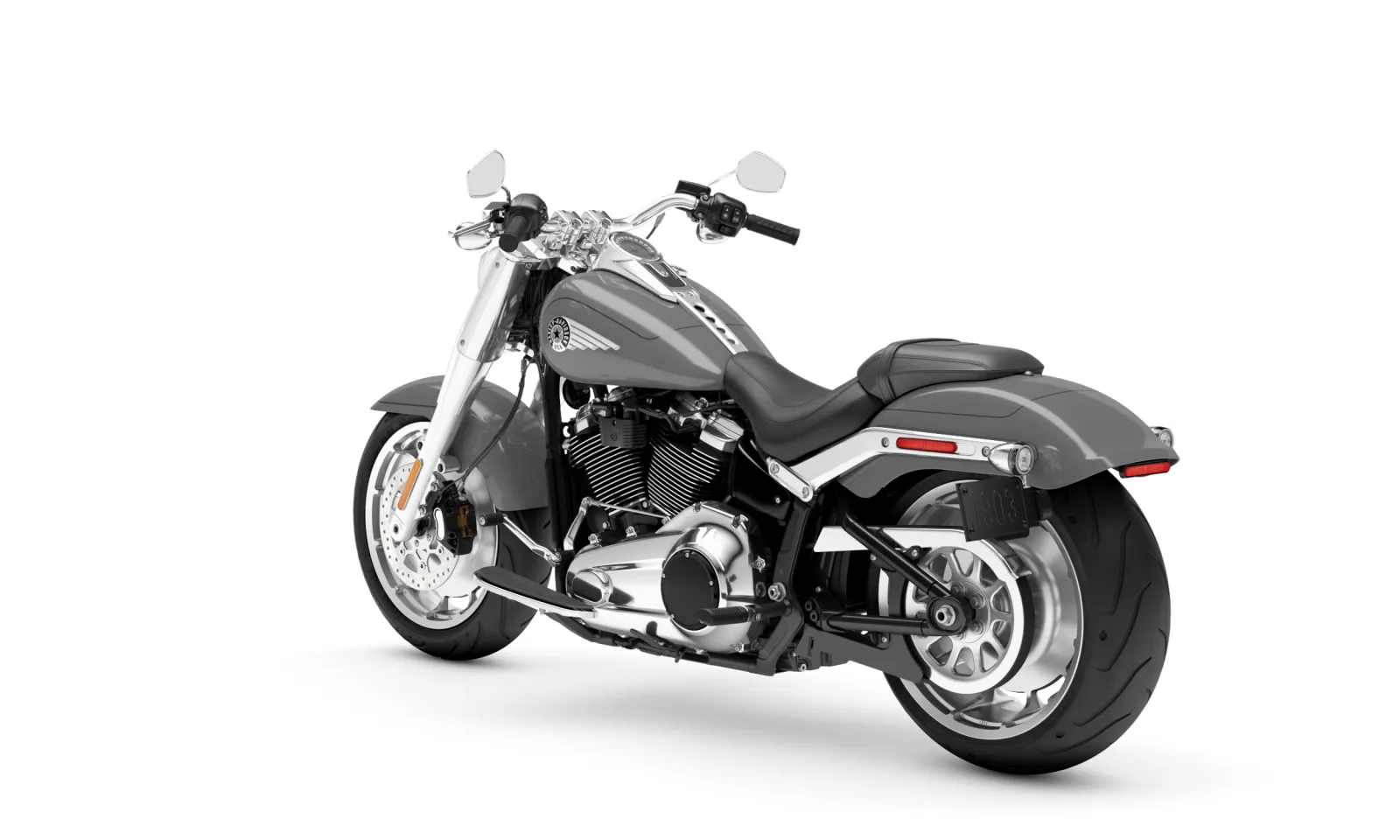

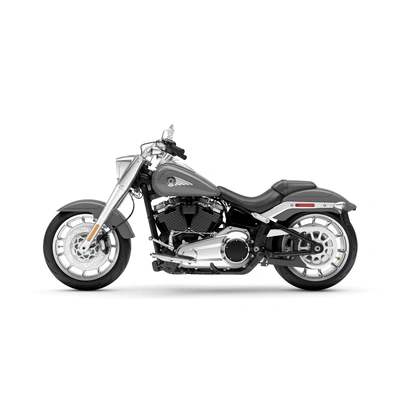

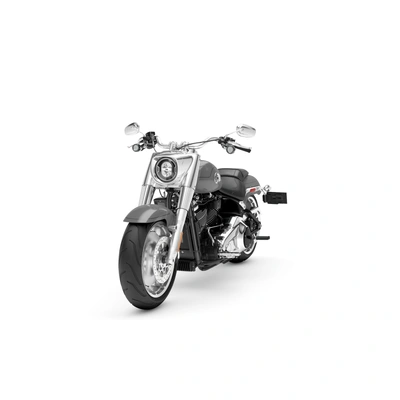

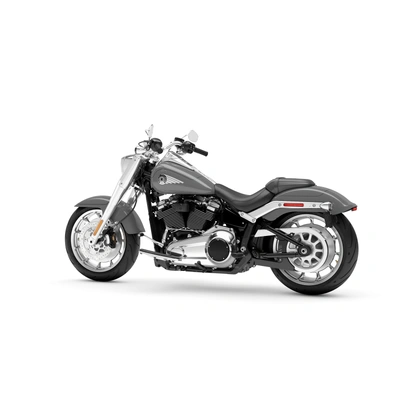

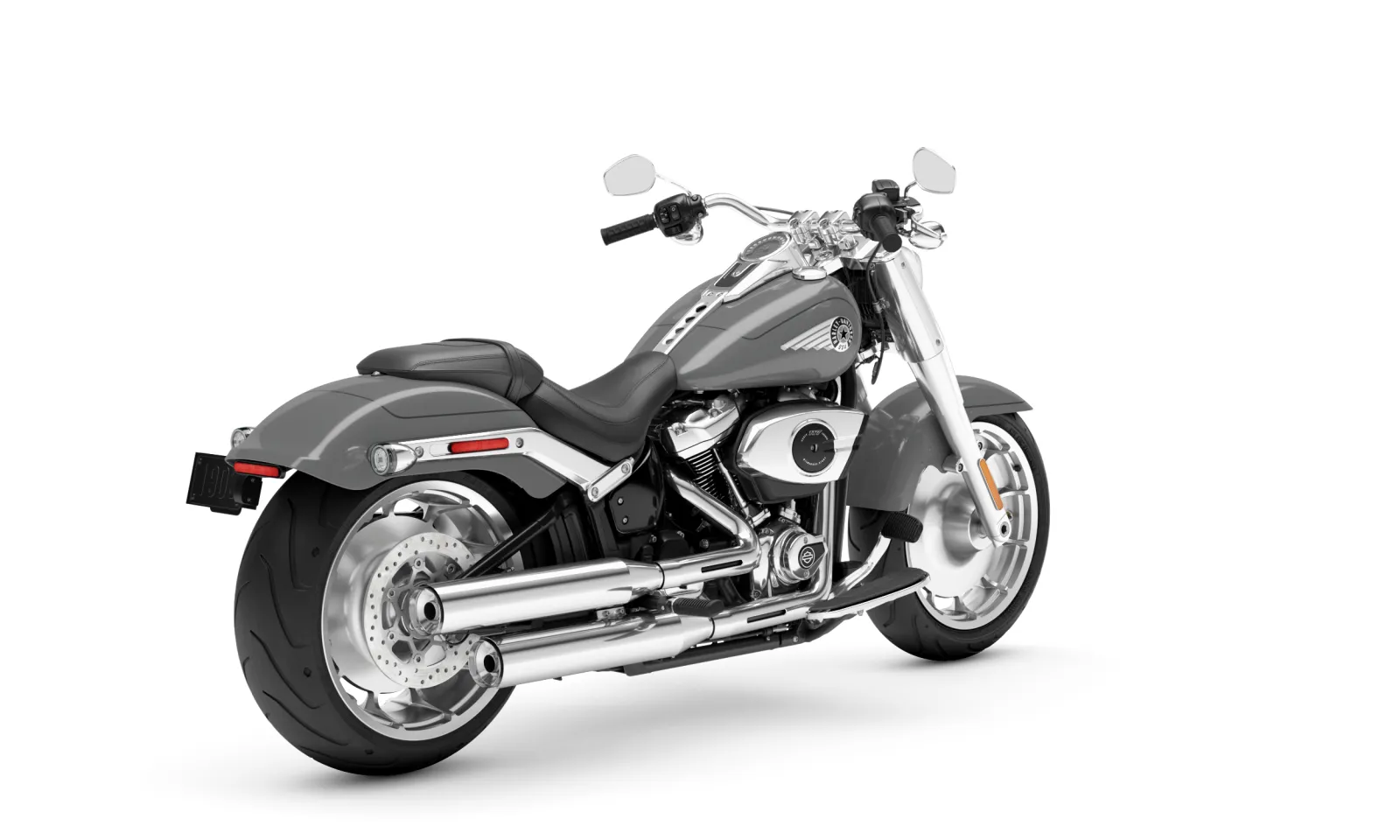

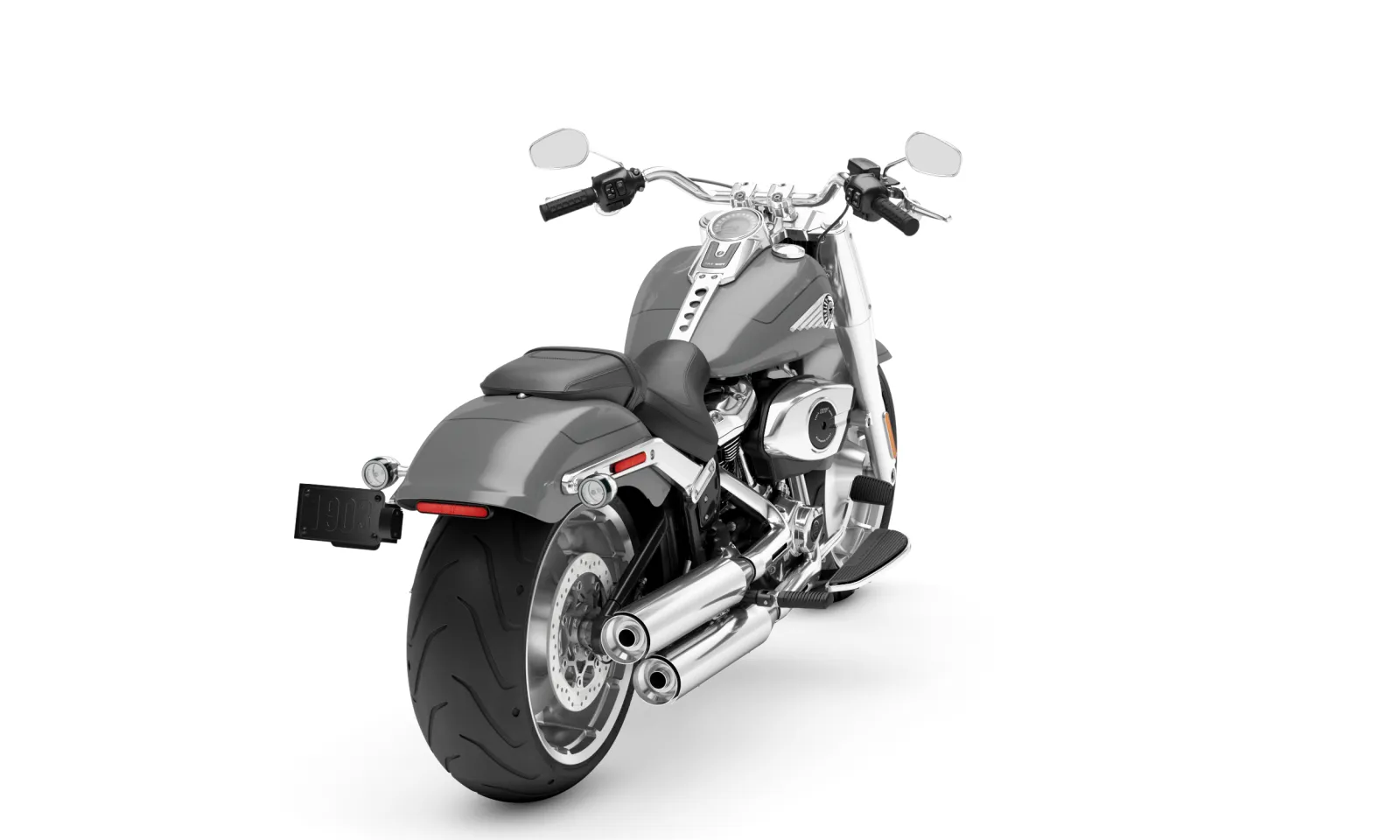

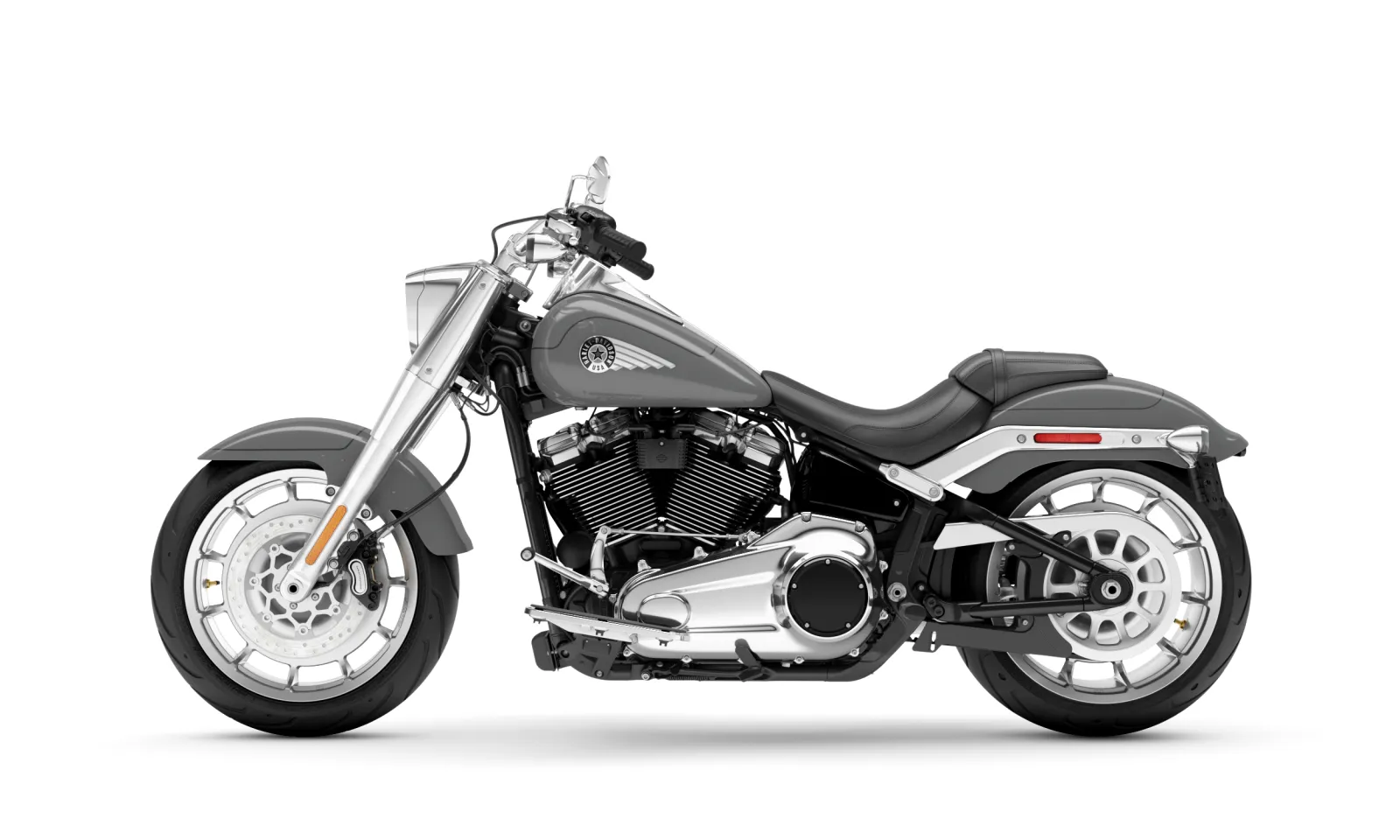

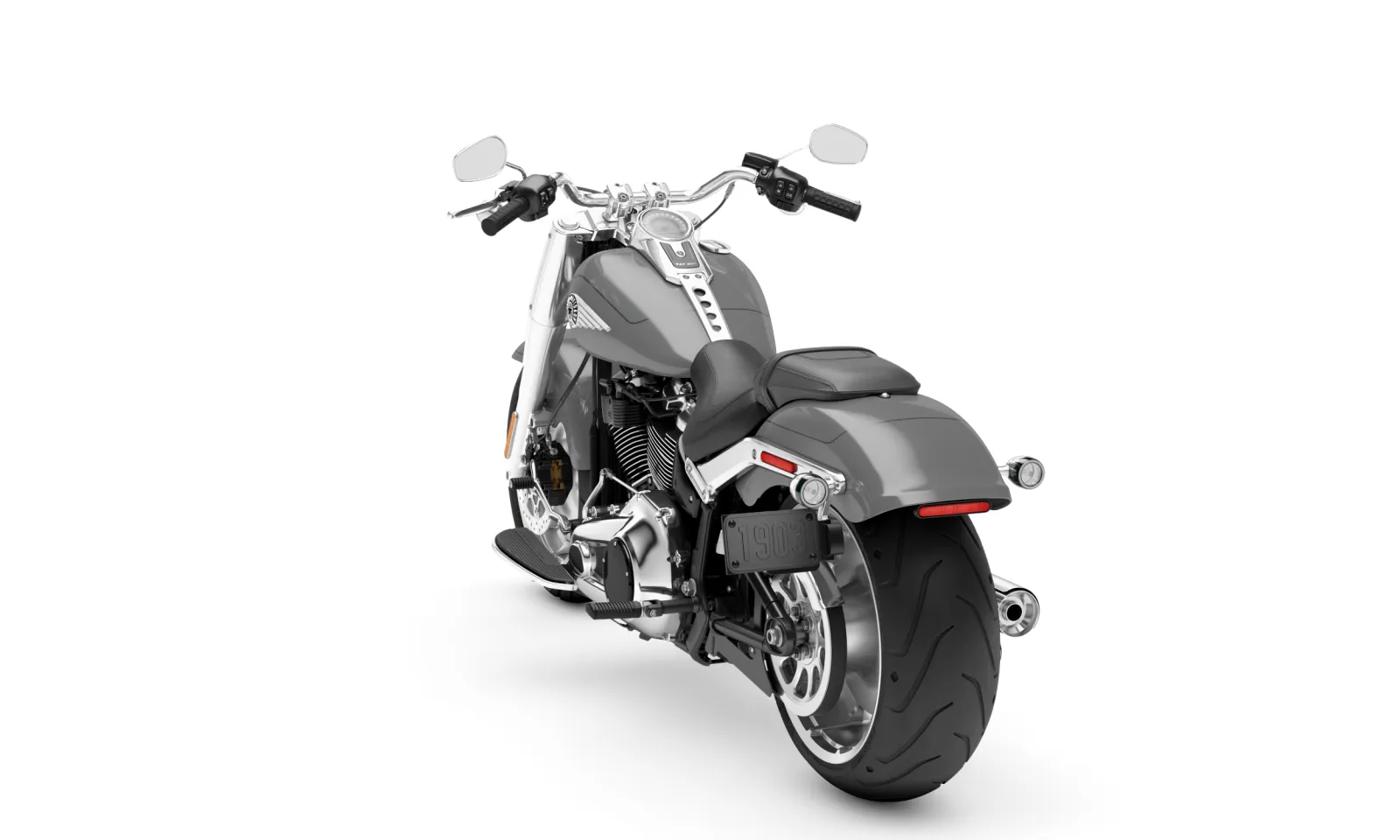

2026 Harley-Davidson Fat Boy - Dark Billiard Gray
STOCK #: FLFBS-DBGC-26
Price On Application
Sold Out
Year 2026 Condition New Colour Dark Billiard Gray Body Type Cruiser Stock # FLFBS-DBGC-26
Design
Fresh paint options and a new tank medallion bring a modern edge to the enduring design that defines the Fat Boy®, marked by its wide wheels, muscular stance, and classic Harley silhouette.
Performance
The 2025 Fat Boy is more fun than ever before with a new, high-performance Milwaukee-Eight® 117 Custom V-Twin Engine, a high-flowing, two-into-two exhaust system, and improved suspension.
Innovation
Classic form hides a suite of modern tech made to add comfort and convenience, but never take attention away from the ride.
Dimensions
Length
2,365 mm
Width
965 mm
Seat Height, Unladen
675 mm
Ground Clearance
125 mm
Rake
30
Trail
104 mm
Wheelbase
1,650 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
160/60R18,70V,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
315 kg
Engine
Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler
Performance
Engine Torque Testing Method
EC 134/2014
Engine Torque+
168 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 5020 rpm
Lean Angle, Right (deg.)
25.6
Lean Angle, Left (deg.)
25.6
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2
Drive Chain
Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79
Chassis
Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Machined, Lakester cast aluminum
Wheels, Rear Type+
Machined, Lakester cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear silver, Split 7-spoke floating rotors
Electric
Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: All LED headlamp, low and high beam with signature position lighting; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
127 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
