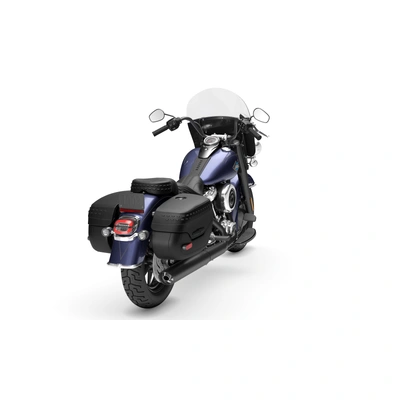

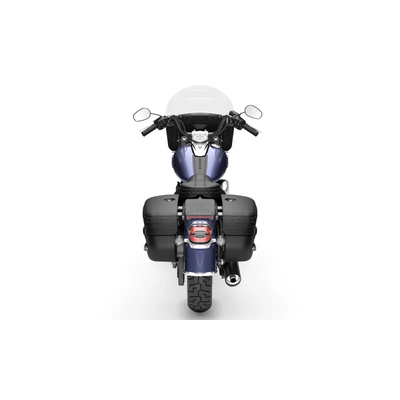

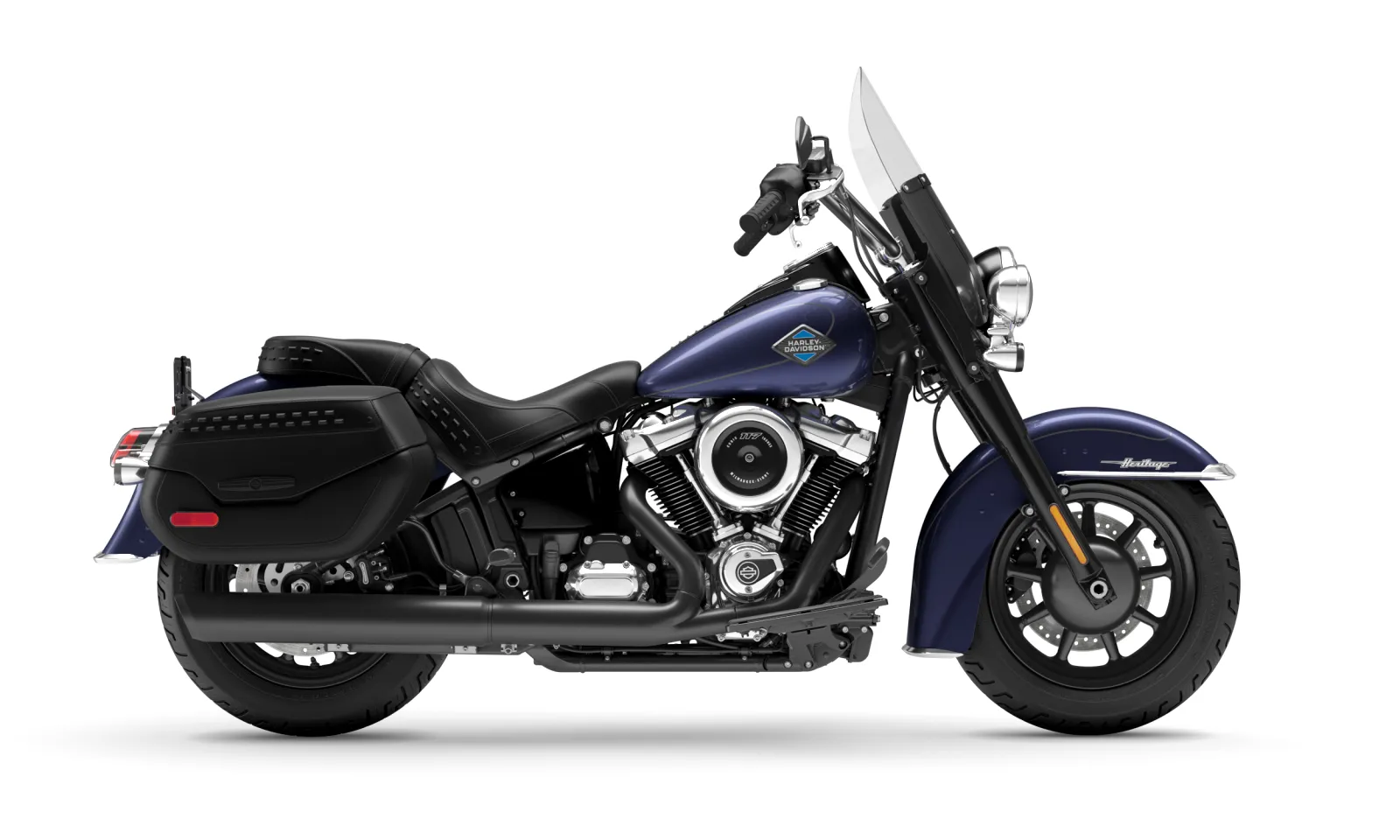

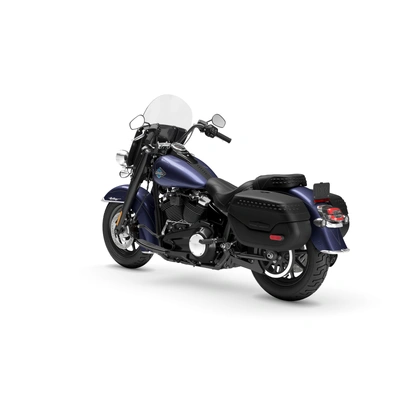

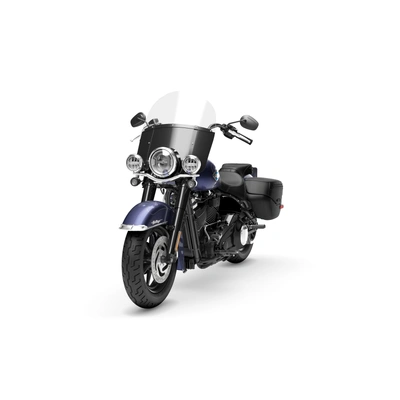

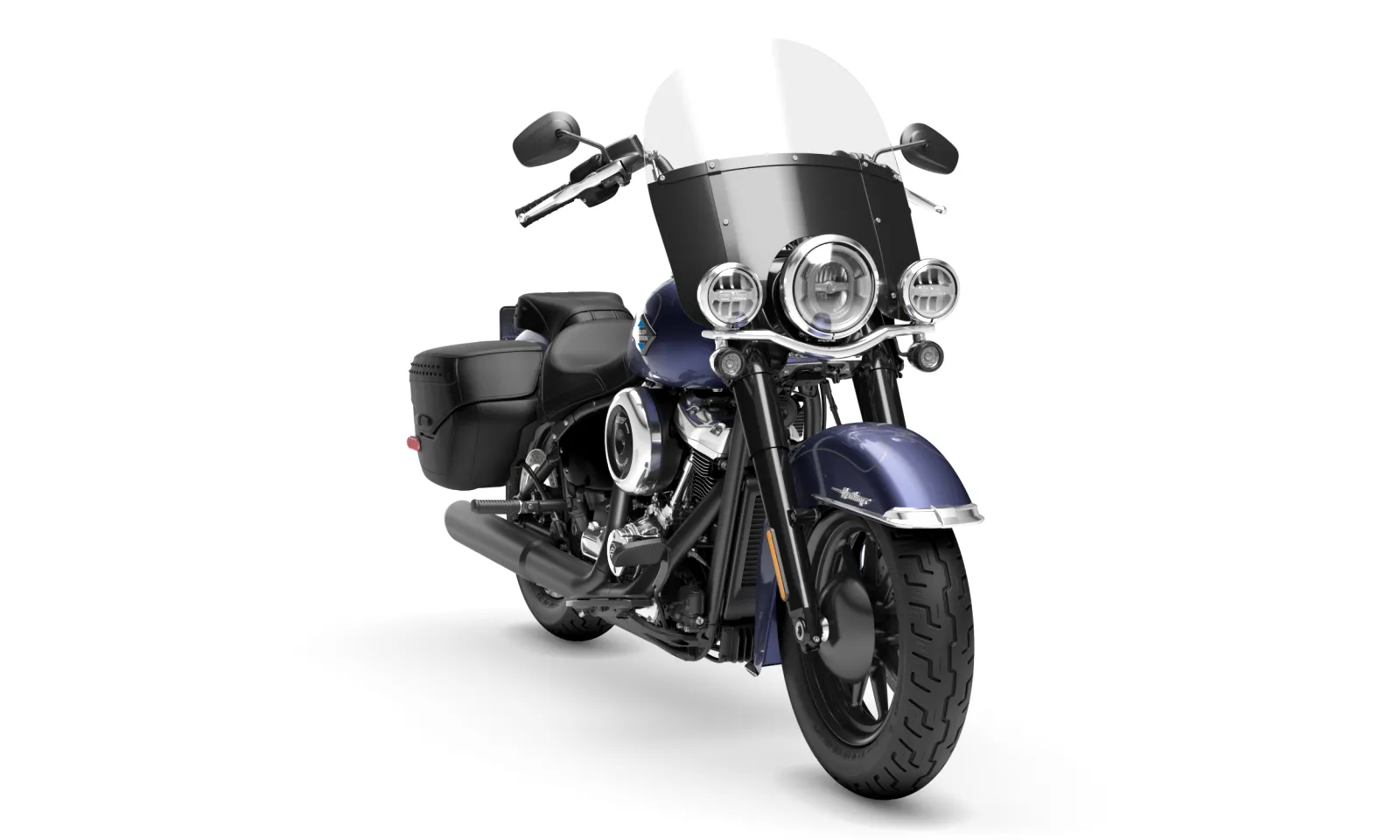

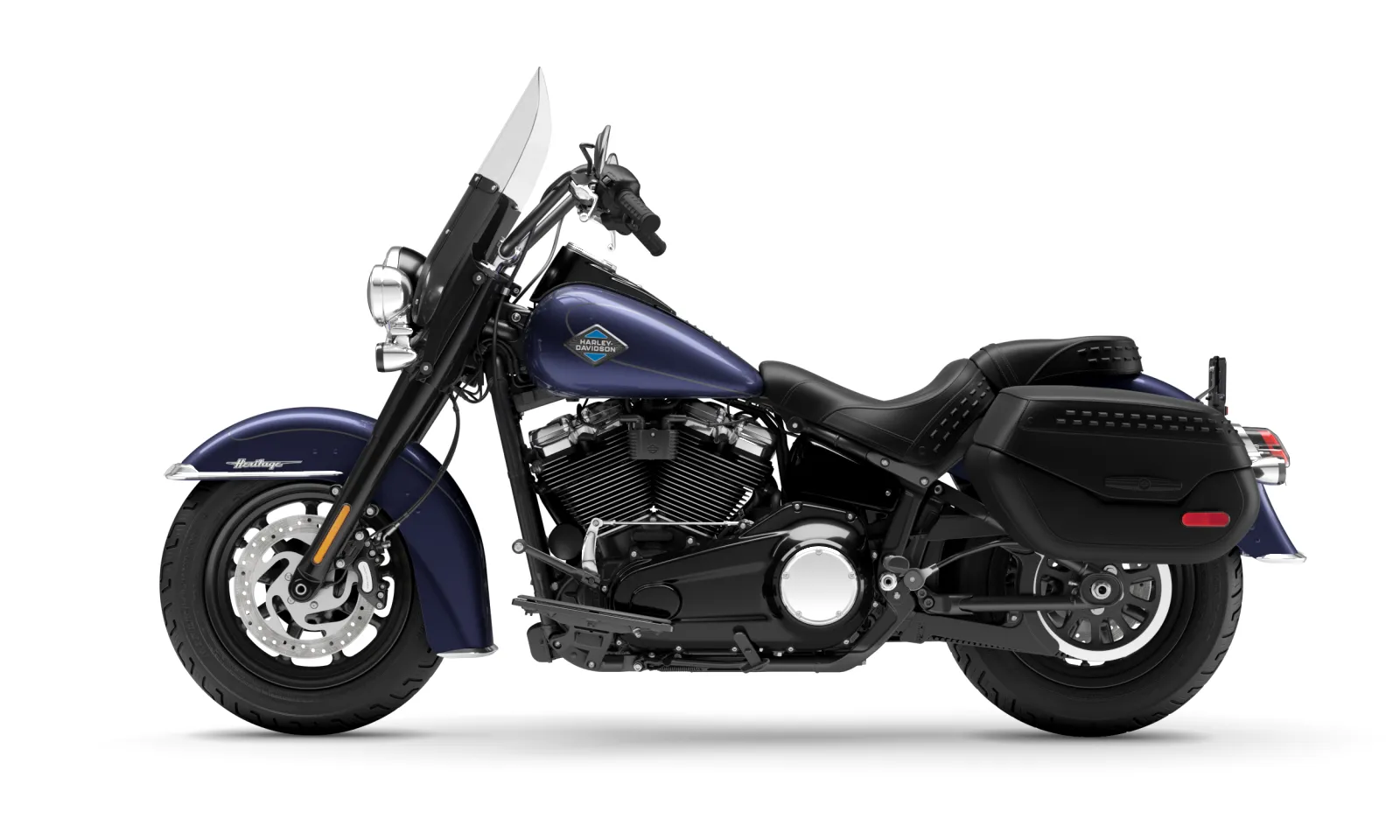

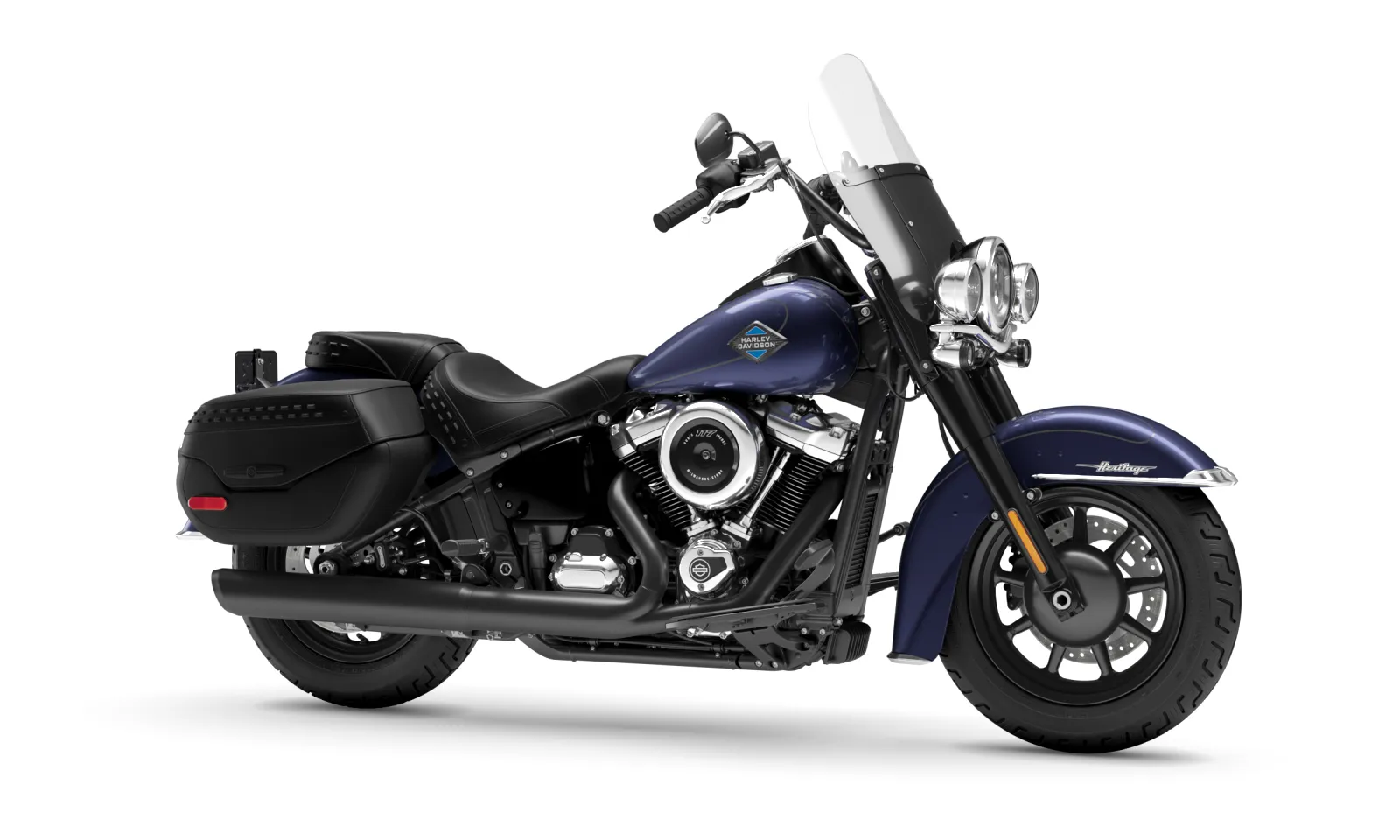

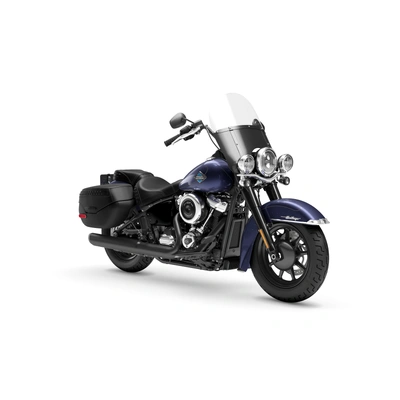

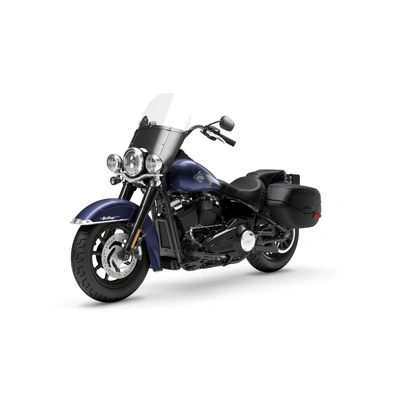

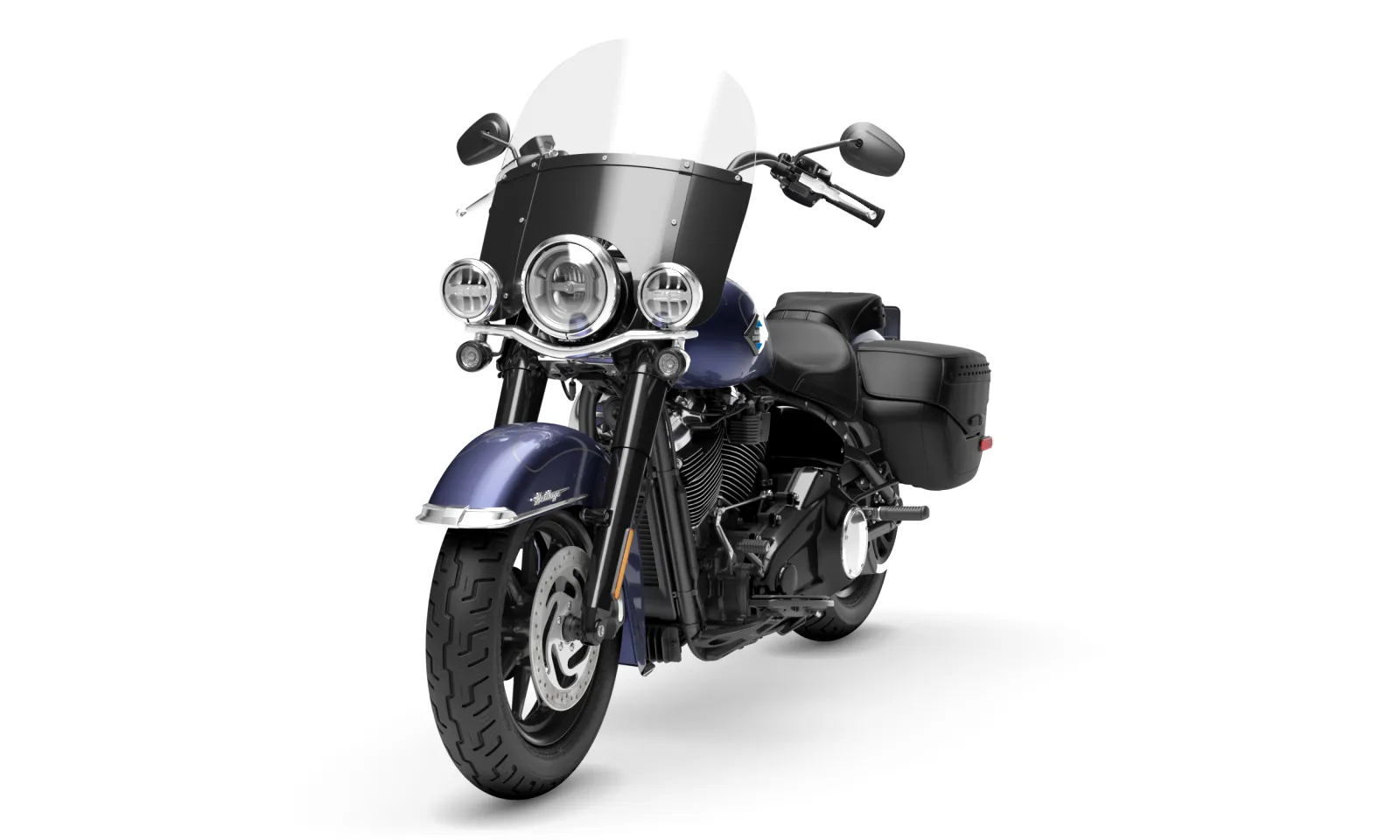

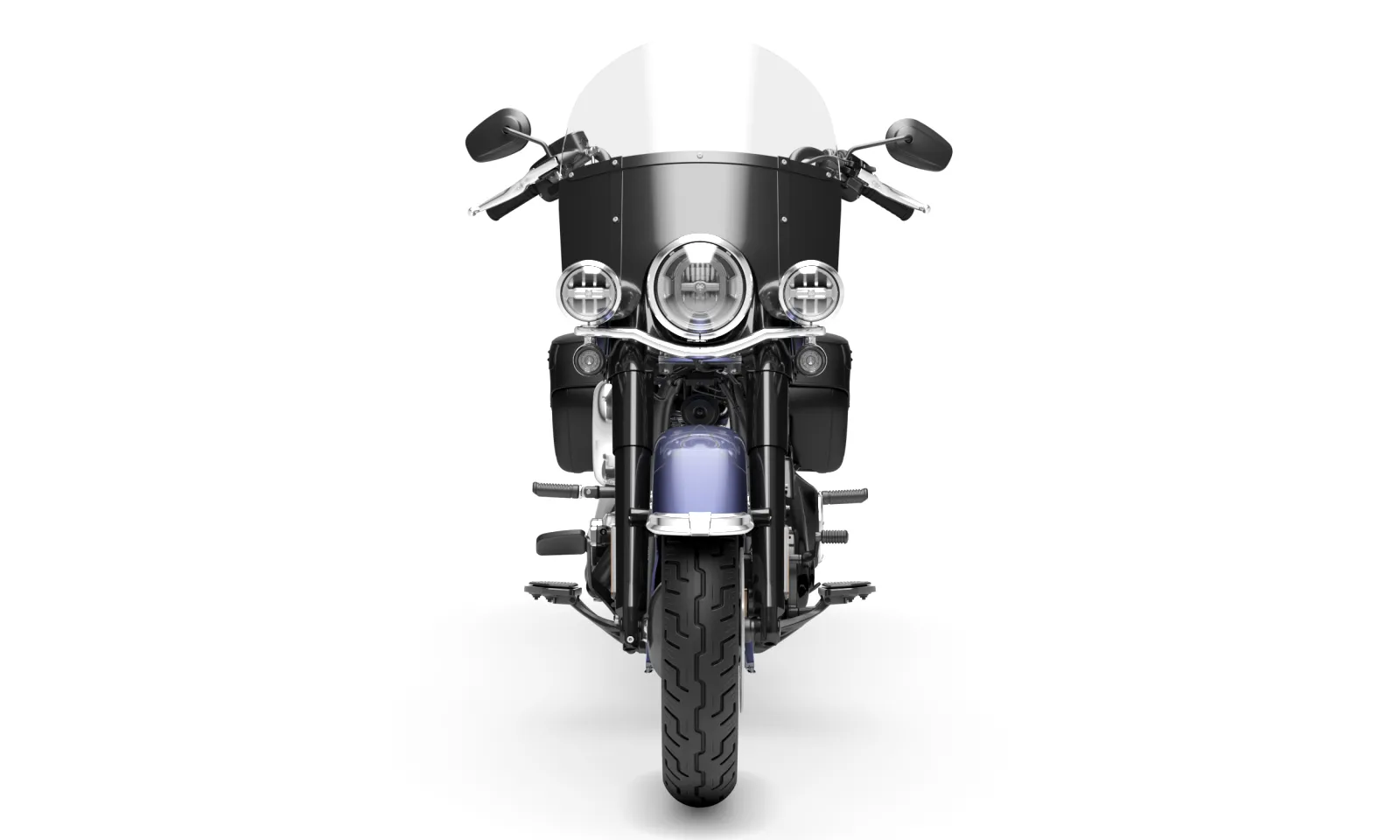

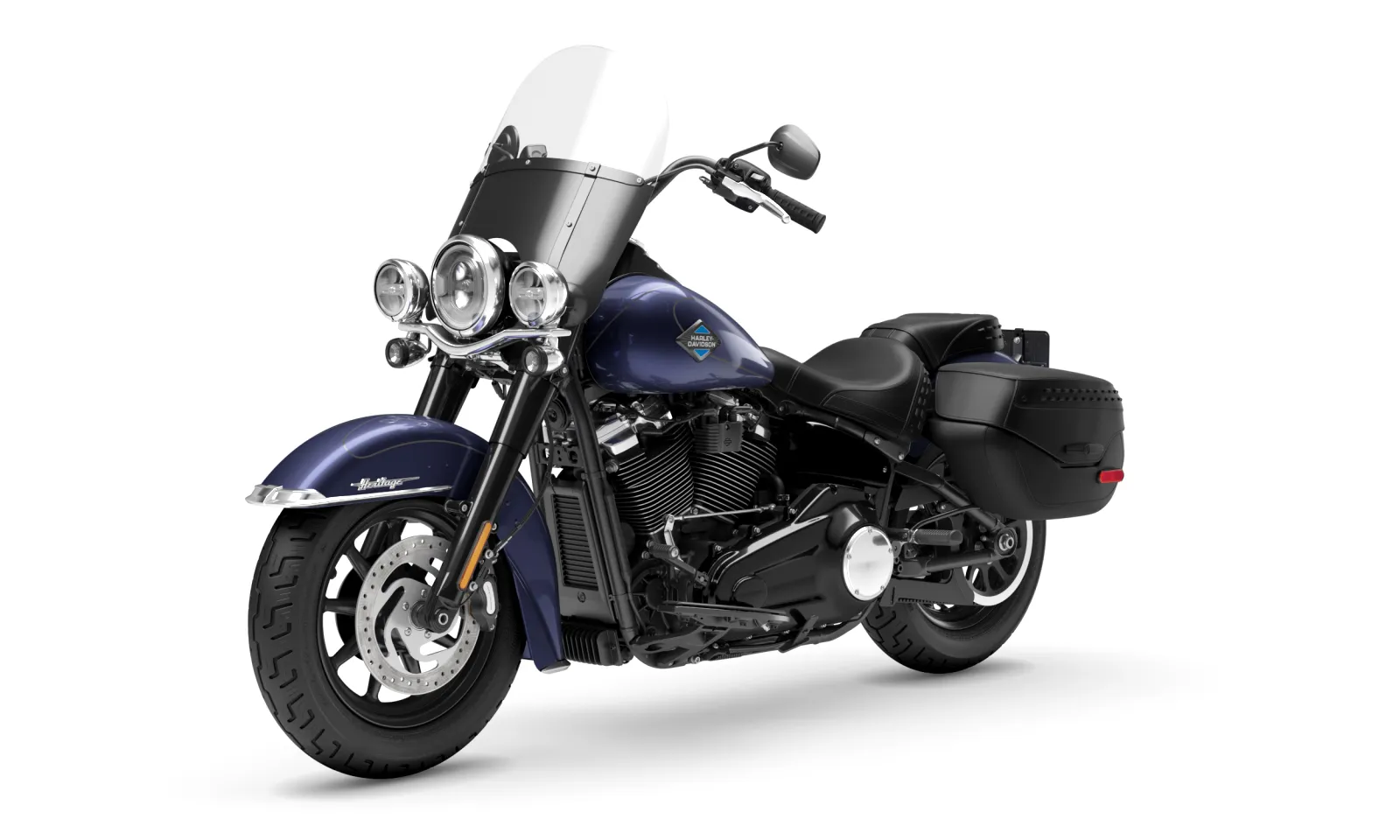

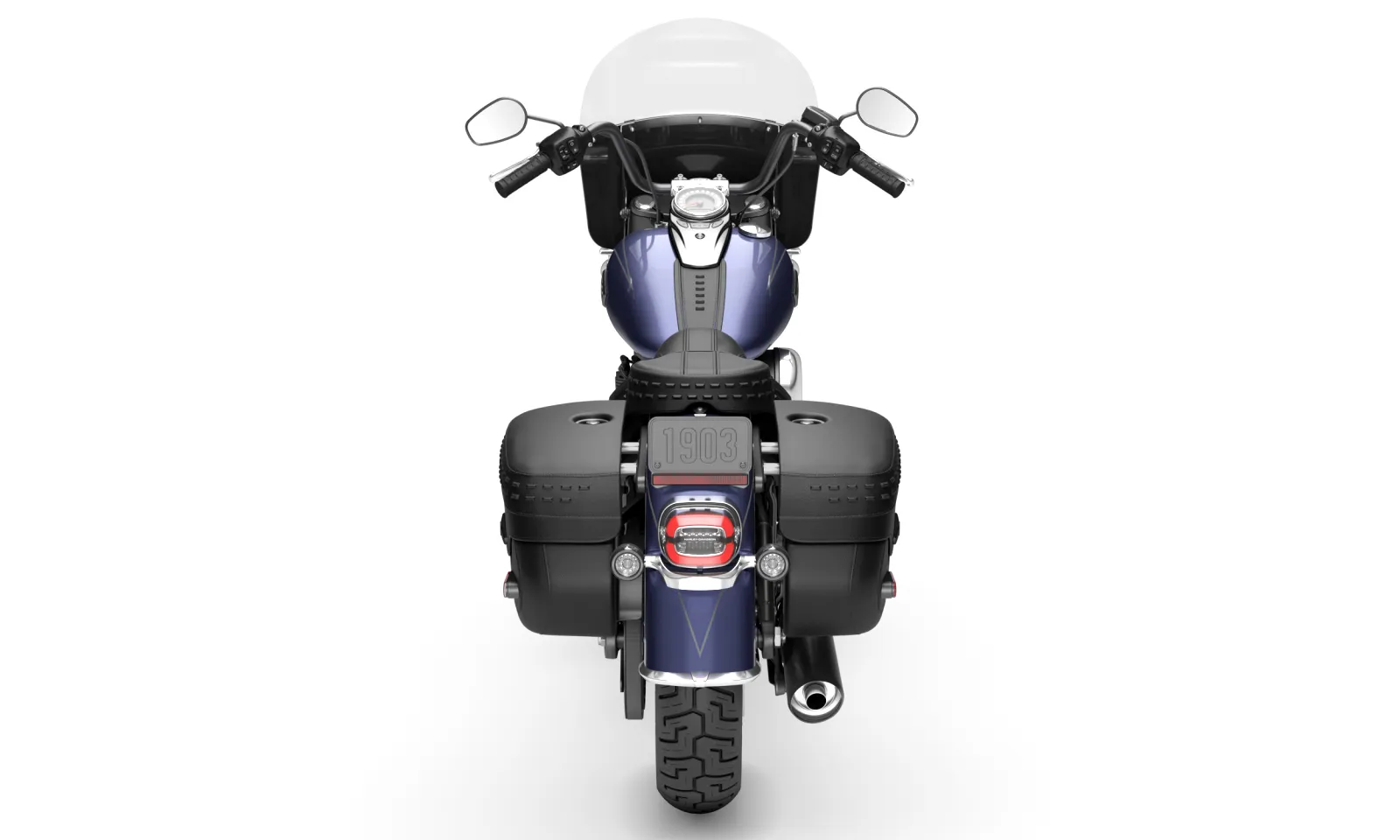

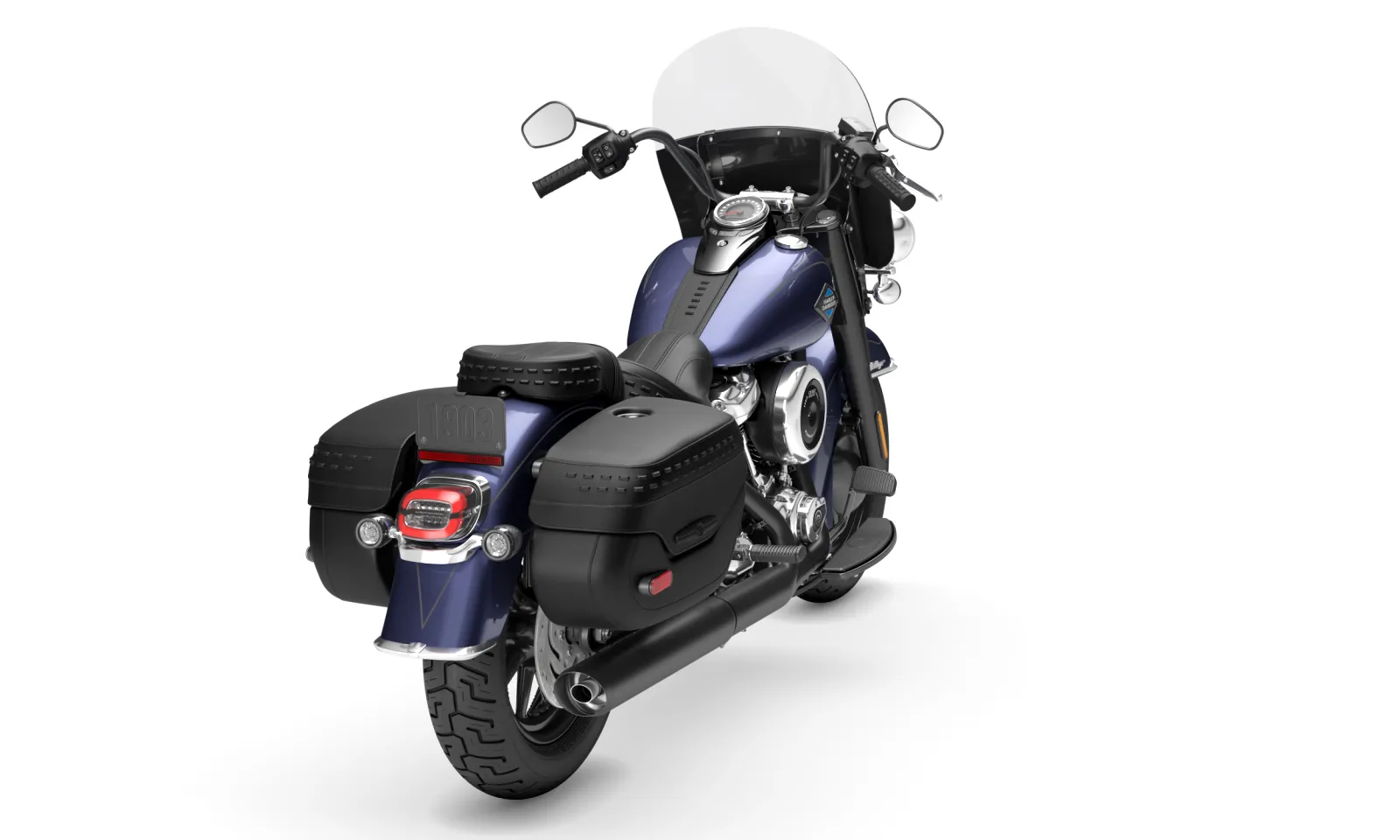

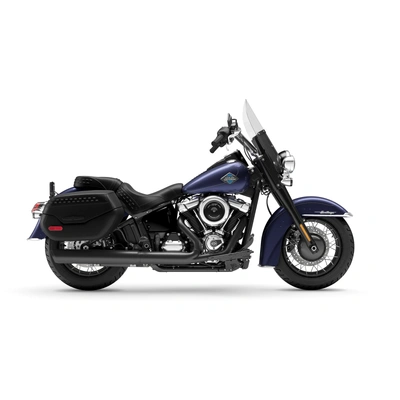

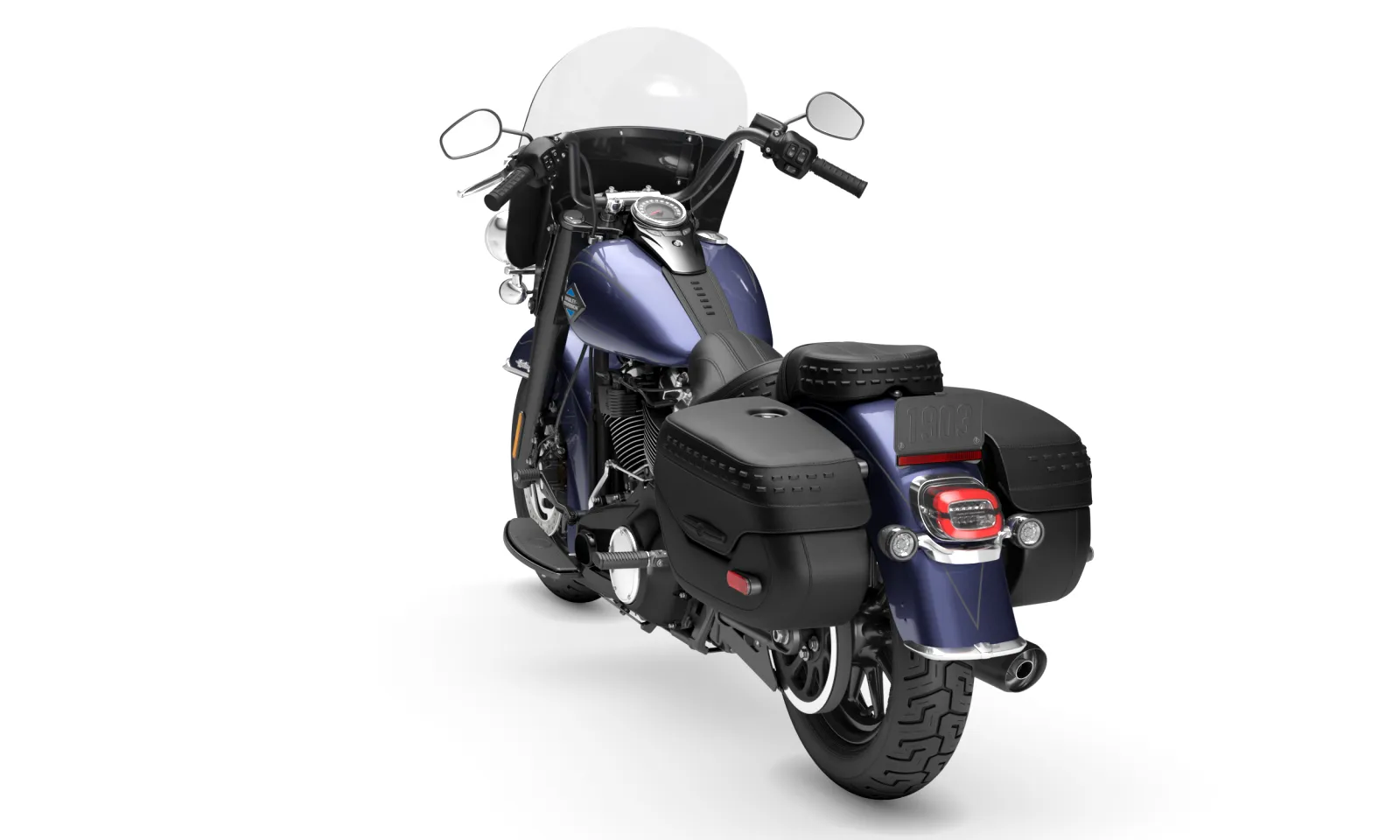

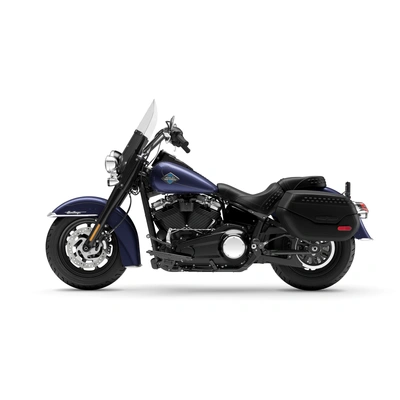

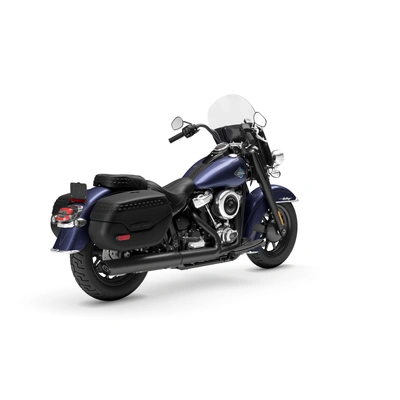

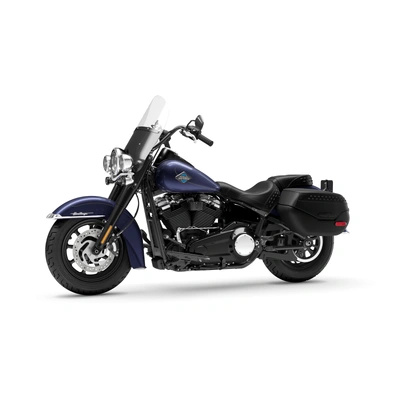

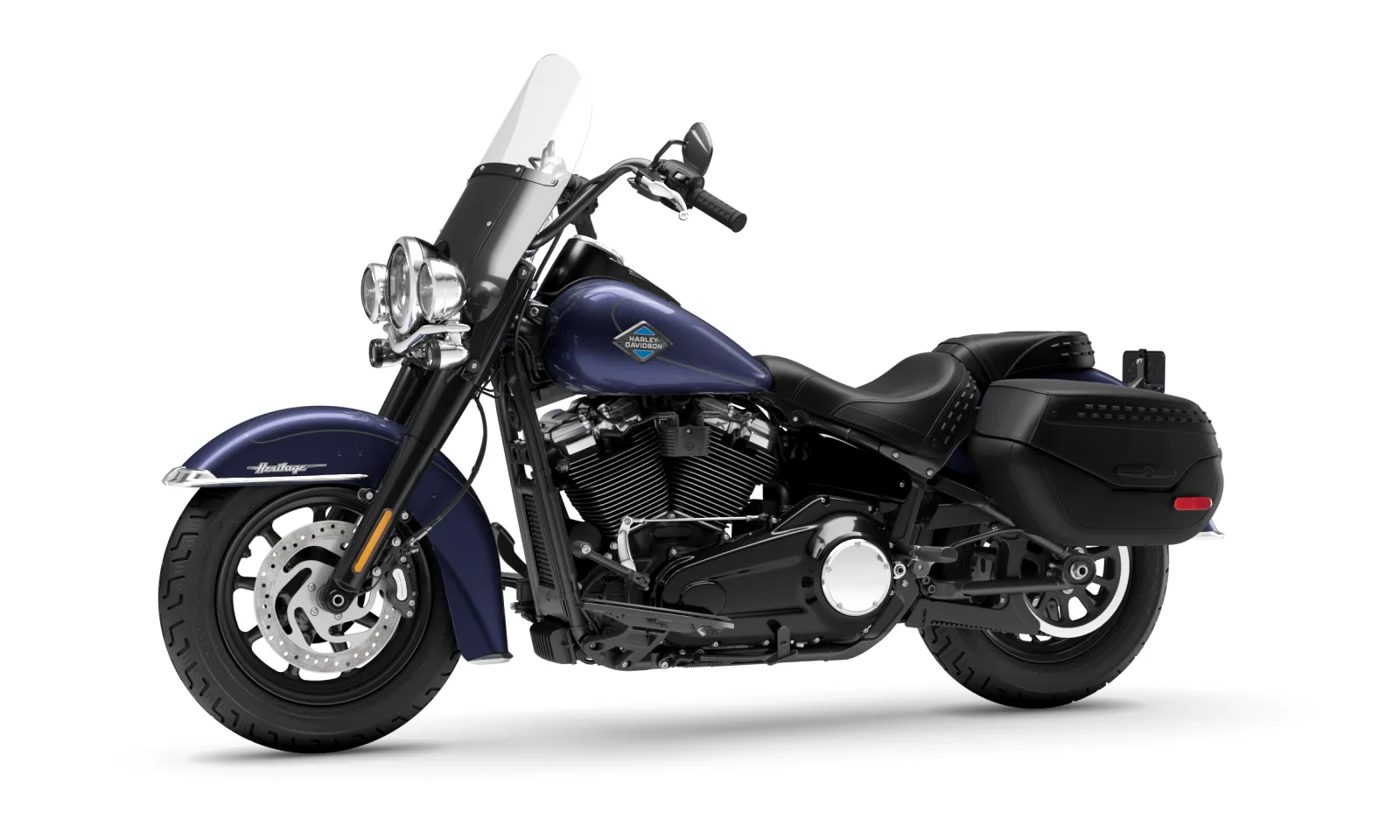

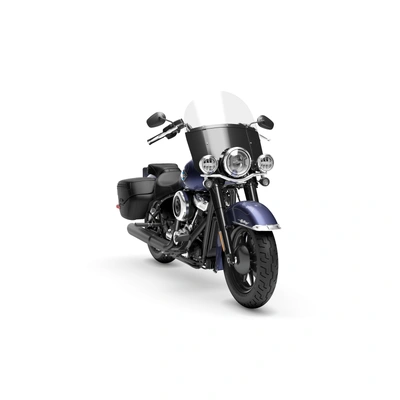

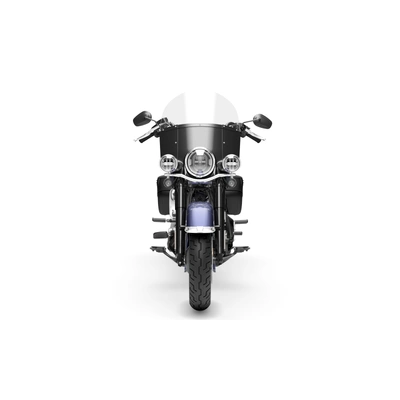

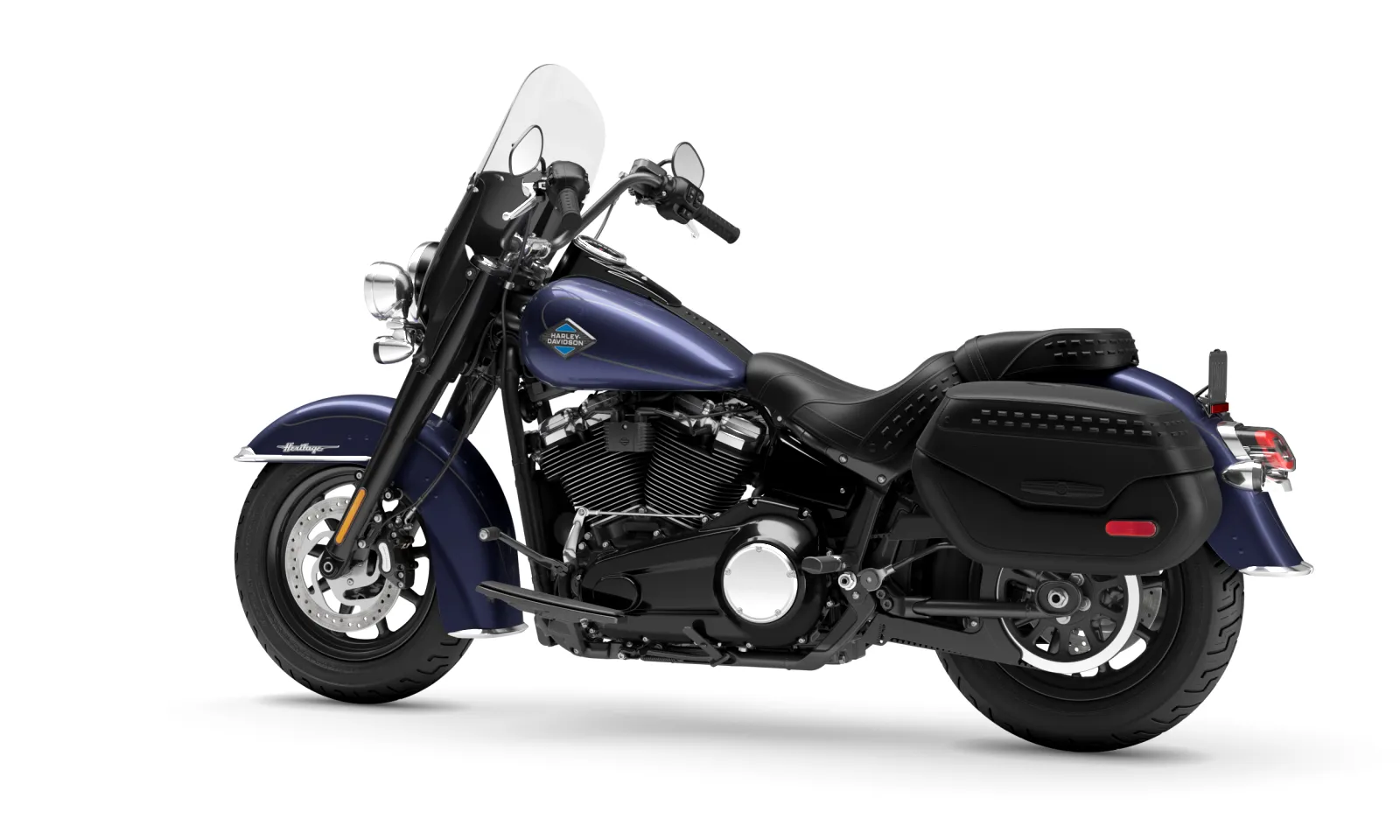

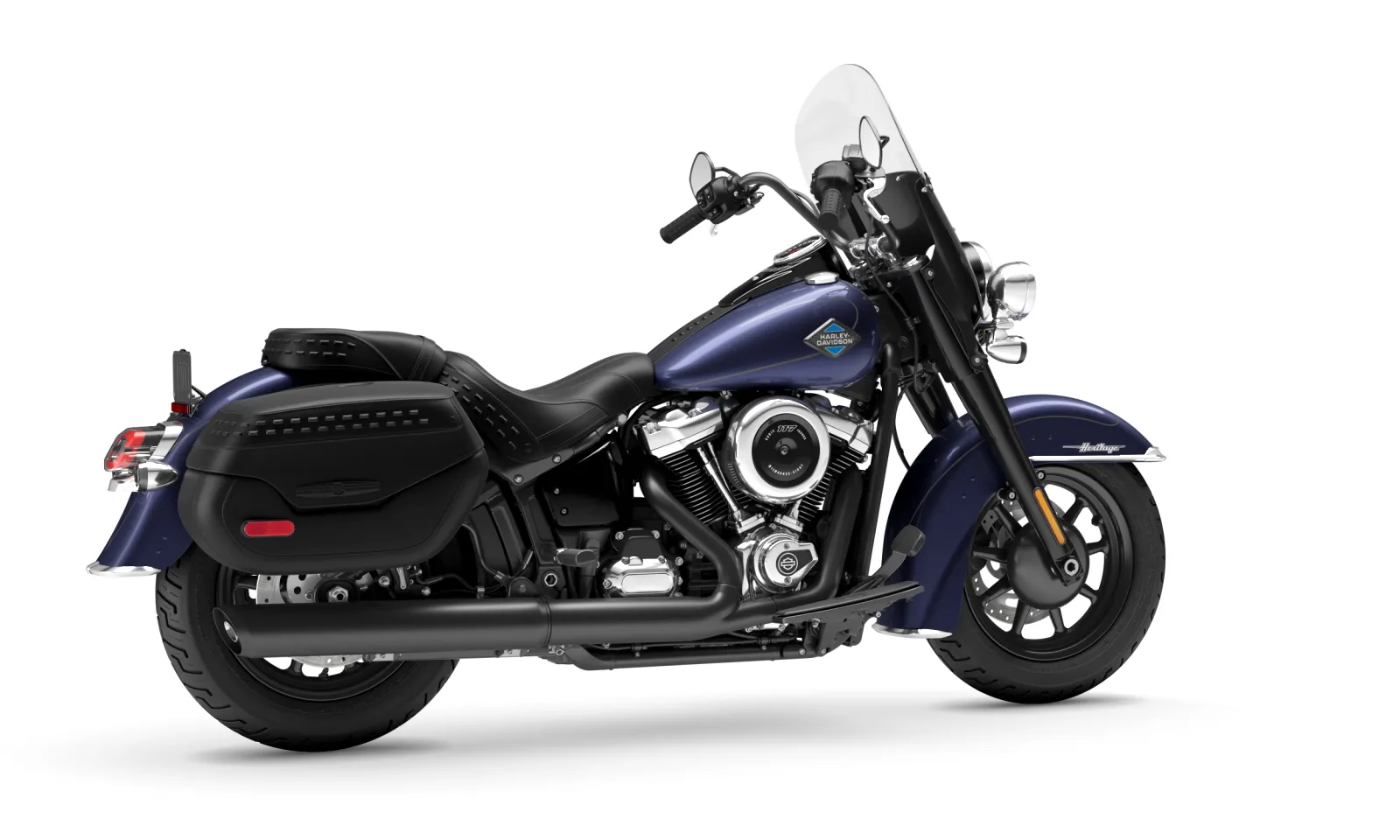

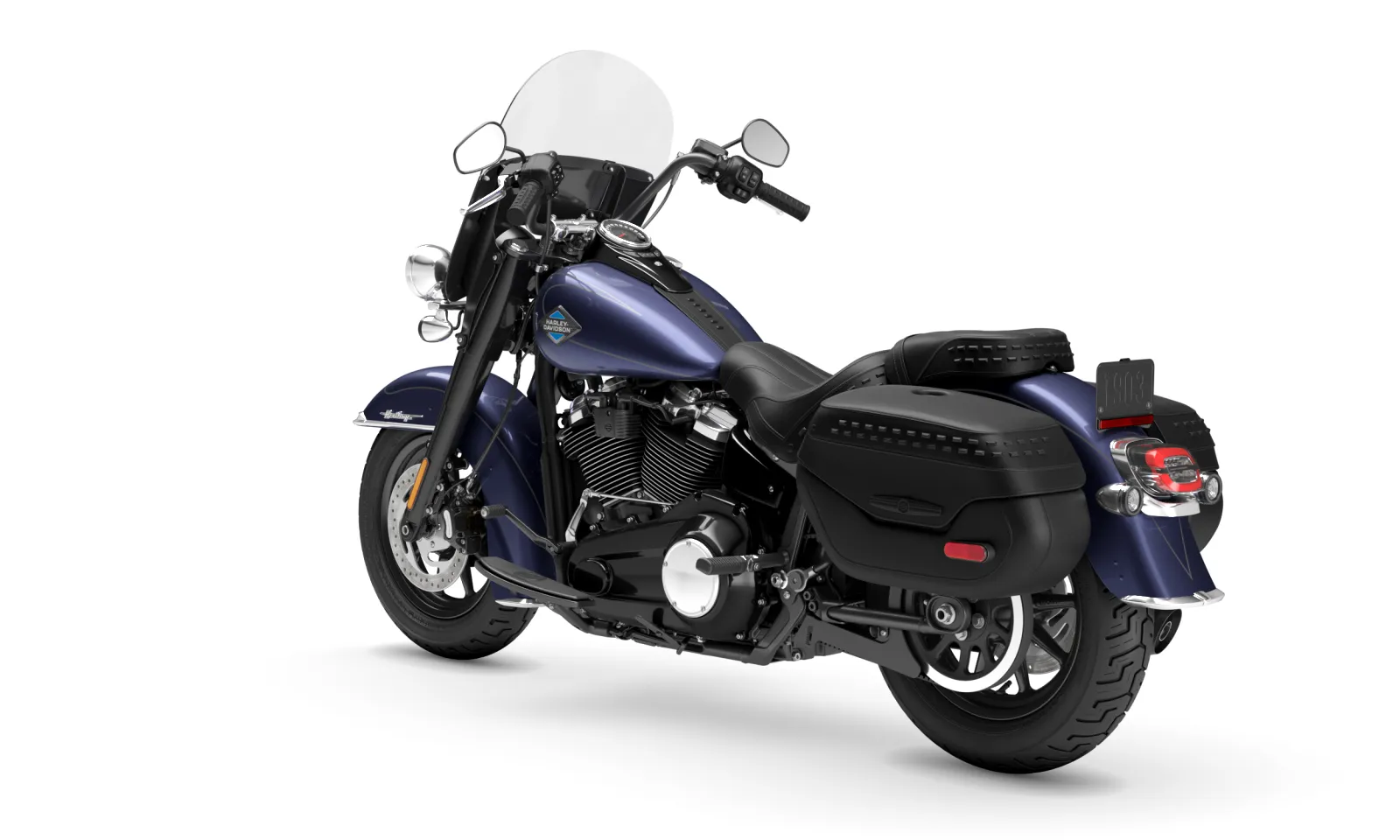

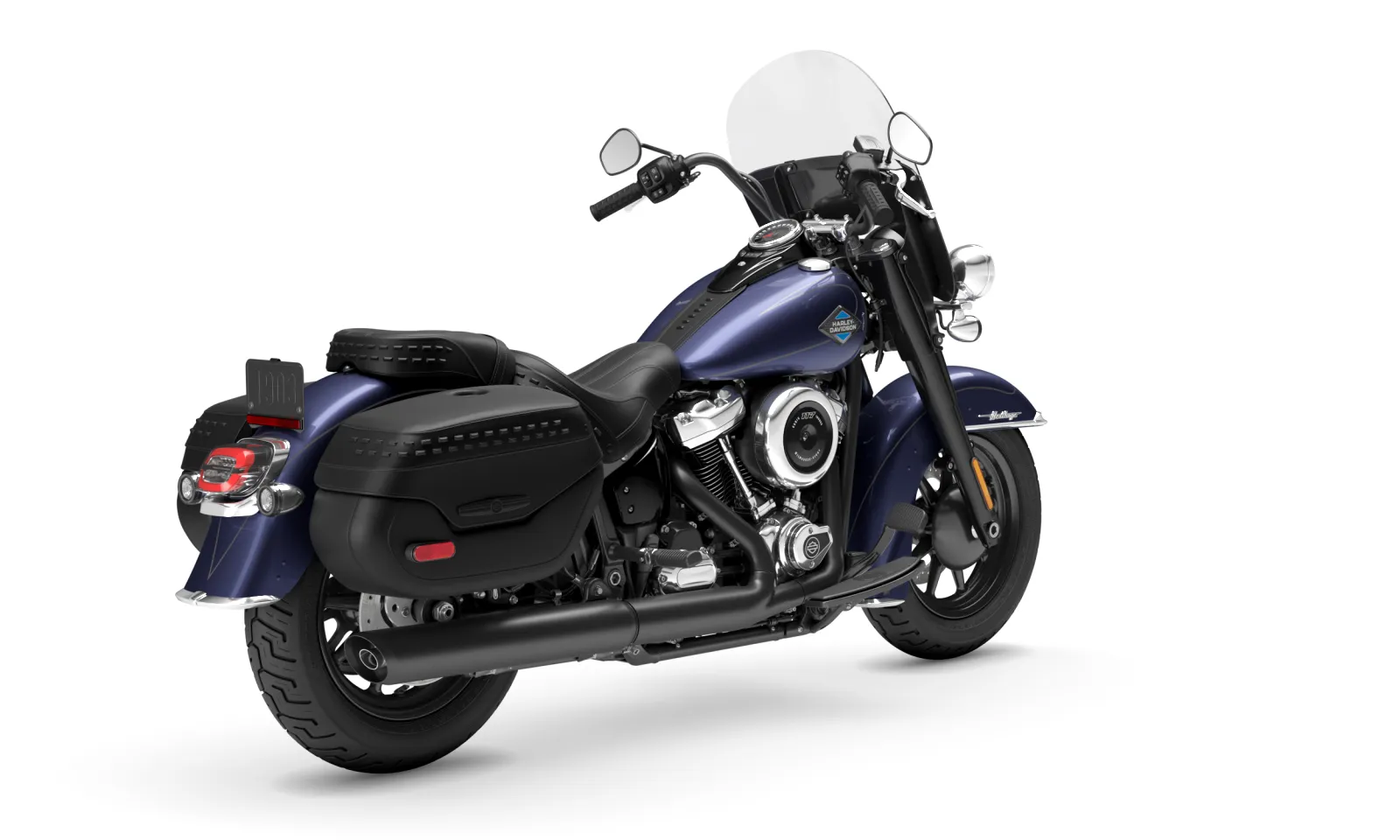

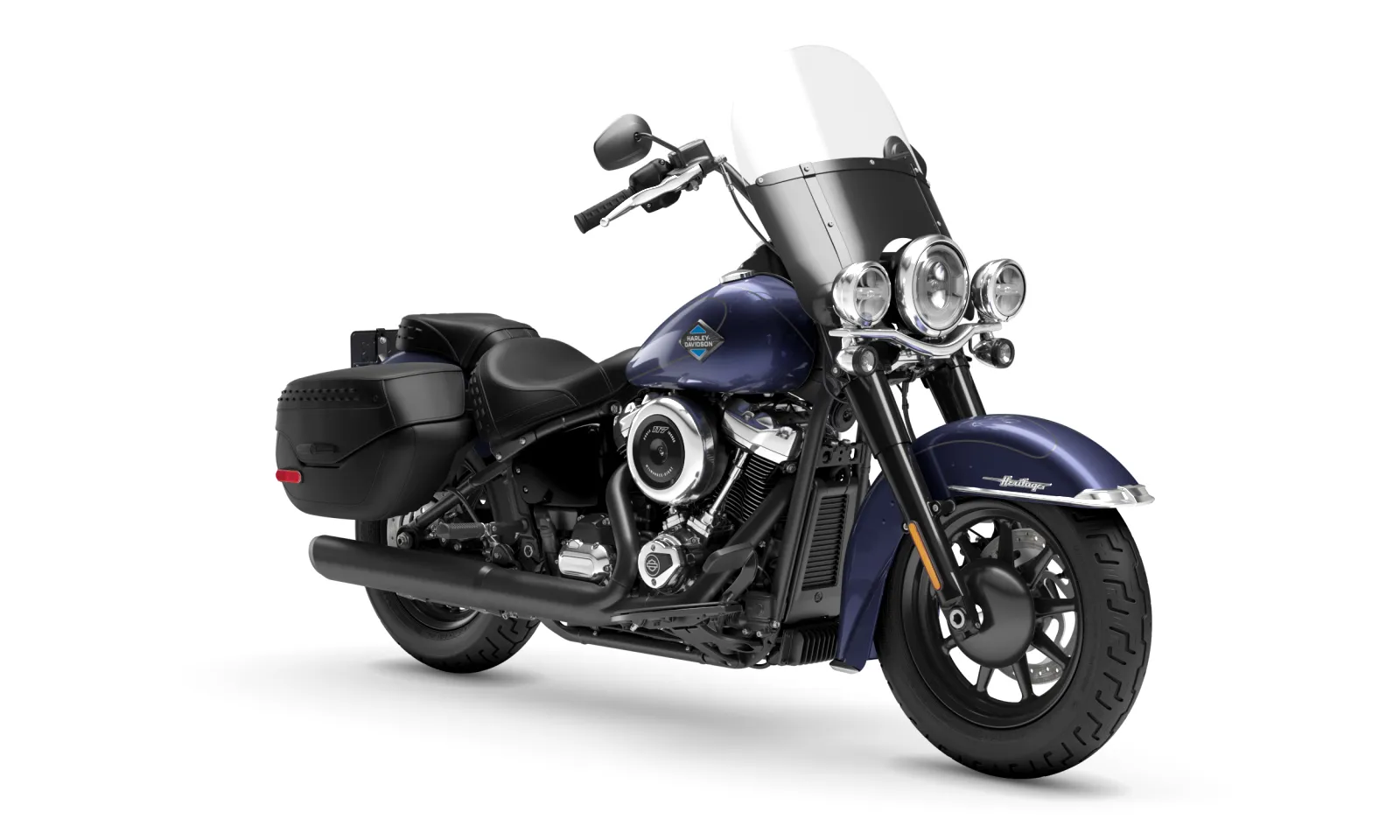

2026 Harley-Davidson Heritage Classic - Purple Abyss

STOCK #: FLHCS-PAB-26

Price On Application

Enquire Now

Year 2026 Condition New Colour Purple Abyss Body Type Cruiser Stock # FLHCS-PAB-26

Available Options
Bike ID	Stock ID: FLHCS-PAB-26

Design

Lockable, Sealed Saddlebags

Symmetrical, weather-tight saddlebags keep your gear secure and dry, with enough style to look like theyve been here since day one.

Full LED Lighting

A 178 mm LED headlamp, tail lamp, and turn signals sharpen the look and light the way, making sure this classic shines from every angle.

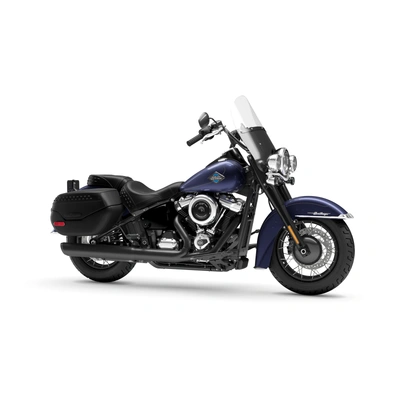

Optional Tubeless Laced Wheels

Choose between blacked-out cast wheels or tubeless laced wheels for easier repairs and timeless style that ties the whole bike together.

Vintage Styling, Modern Comfort

Deep paint, blacked-out trim, and the iconic tank medallion give the Heritage Classic its unmistakable silhouette. Add in plush 2-up seating, and youve got a factory custom that carries the weight of history and still feels built for todays ride.

Two-Tone Detachable Windshield

Vintage style, modern function. The Heritage Classics detachable windshield cuts wind and keeps pressure off your shoulders when youre freewheeling highway miles, then pops off for a clean, stripped-down look when youre bopping around town.

Performance

Milwaukee-Eight 117 Classic Motor Built to Thrill

Big torque, smooth delivery, and the unmistakable sound of a Harley V-Twin motor. This is the most powerful Heritage Classic yet.

Performance-Tuned 2-Into-1 Exhaust

Built to move more air and deliver richer sound while balancing the bikes symmetrical saddlebags, its equal parts performance and presence.

A Riders Front and Rear Suspension

The Heritage Classics suspension is tuned for all?day comfort through sweepers, stop-and-go traffic, and everything in between.

Performance High-Flow Intake

A classic throwback shape with a modern twist, the filter feeds the Milwaukee-Eight 117 more air for optimal combustion, better throttle response, and performance you can actually feel.

Innovation

127 mm Analog Gauge with Tech Upgrades

Classic analog style with integrated tech gives you critical ride data in a layout that feels right at home between the bars.

USB-C Charging Powers Every Mile

A built-in USB-C port adds modern convenience to the Heritage Classics timeless muscle, keeping your essentials ready for every mile.

Adjustable Brake Lever for Every Reach

Fine-tune your reach and feel for confident stopping power, whether youre riding with normal gloves or in full winter-weights.

Cruise Control + Ride Modes for Every Road

Three selectable ride modes (Road, Rain, and Sport) plus standard cruise control let you match the bikes response to your mood and the road ahead.

DIMENSIONS

Length

2,415 mm

Width

930 mm

Seat Height, Unladen

690 mm

Ground Clearance

120 mm

Rake

Trail

140 mm

Wheelbase

1,630 mm

Tire, Type

Dunlop Harley-Davidson Series, bias blackwall front and rear

Tires, Front Specification

130/90B16,73H,BW

Tires, Rear Specification

150/80B16,77H,BW

Fuel Capacity

18.9 l

Oil Capacity (w/filter)

4.7 l

Weight, In Running Order

326 kg

Luggage Capacity -Volume

0.045 m3

ENGINE

Engine+

Milwaukee-Eight 117 Classic

Bore

103.5 mm

Stroke

114.3 mm

Displacement

1,923 cc

Compression Ratio

10.3:1

Fuel System+

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-into-1; catalyst in header

PERFORMANCE

Engine Torque Testing Method

EC 134/2014

Engine Torque+

156 Nm

Engine Torque (rpm)

2750

Horsepower

91 HP / 68 kW @ 5020 rpm

Lean Angle, Right (deg.)

27.4

Lean Angle, Left (deg.)

27.4

Fuel Economy Testing Method

EU 134/2014

Fuel Economy+

5.5 l/100 km

CO2 Emissions Testing Method

EU 134/2014

CO2 Emissions

128 g/km CO2

DRIVE TRAIN

Primary Drive

Chain, 34/46 ratio

Gear Ratios (overall) 1st

9.311

Gear Ratios (overall) 2nd

6.454

Gear Ratios (overall) 3rd

4.793

Gear Ratios (overall) 4th

3.882

Gear Ratios (overall) 5th

3.307

Gear Ratios (overall) 6th

2.79

CHASSIS

Front Fork

Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring; "beer can" covers

Rear Shocks

Hidden, free piston, coil-over monoshock; 56mm stroke; hydraulic preload adjustment

Wheels, Optional Style Type+

Black tubeless laced with 36 bright spokes

Wheels, Front Type+

Black, 9-Spoke Cast Aluminum

Wheels, Rear Type+

Black, 9-Spoke Cast Aluminum

Brakes, Caliper Type

4-piston fixed front and 2-piston floating rear

Brakes, Rotor Type

Solid, uniform expansion rotors

ELECTRIC

Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals

Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: LED Buffett tail lamp; Front Signal Lights: LED Bullet Turn Signals; Rear Turn Signals: LED bullet light bar

Gauges

127 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer indication
