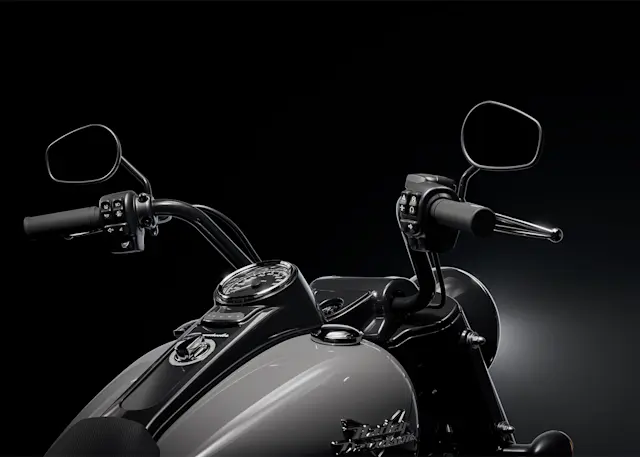

Tall handlebars put the rider in a powerful and commanding stance, with iconic style and a range of adjustability for height and reach.

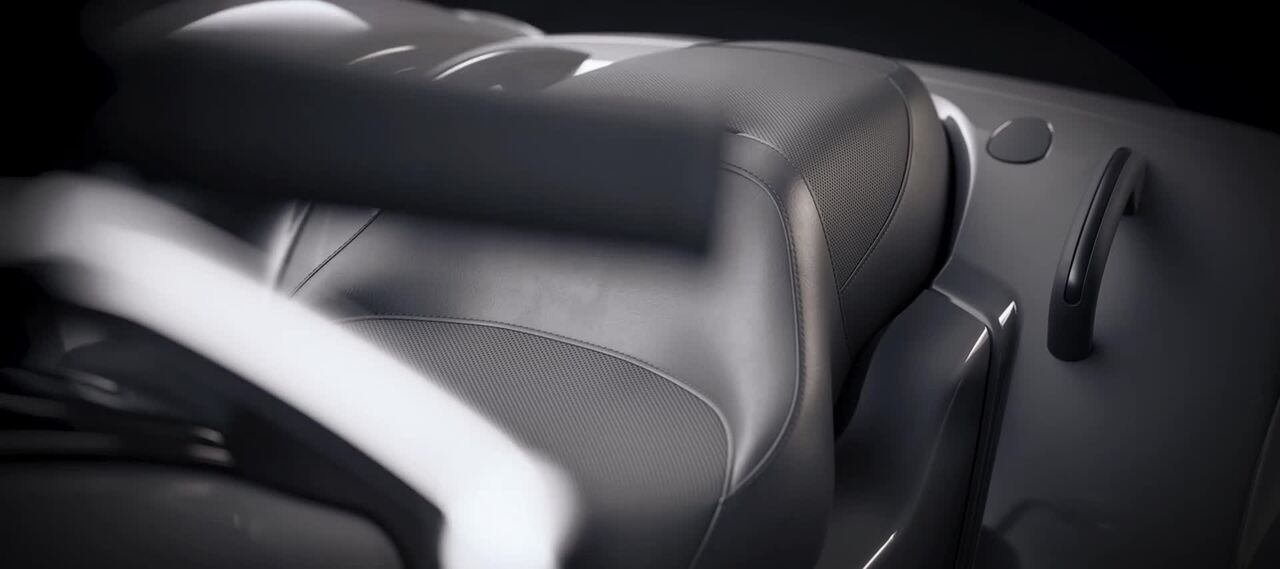

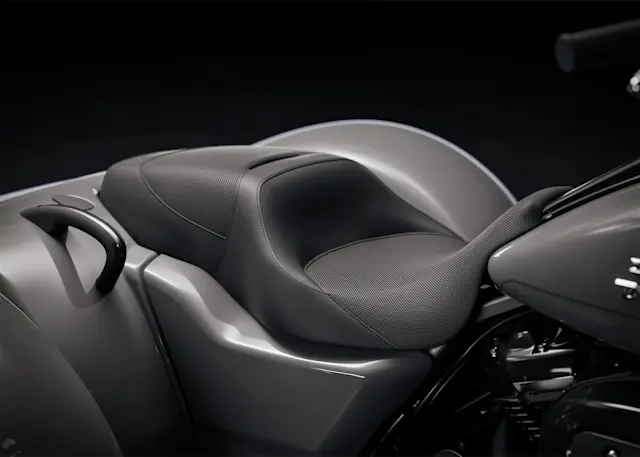

Seat width and pad thickness are designed to enhance comfort on longer rides.
Inspired by design cues from Harley-Davidson Sportster™ models
Lightweight and agile, with an engine tuned for strong mid-range torque.
Mid foot controls and a mid-rise handlebar puts the rider in a centered, comfortable posture on the bike.

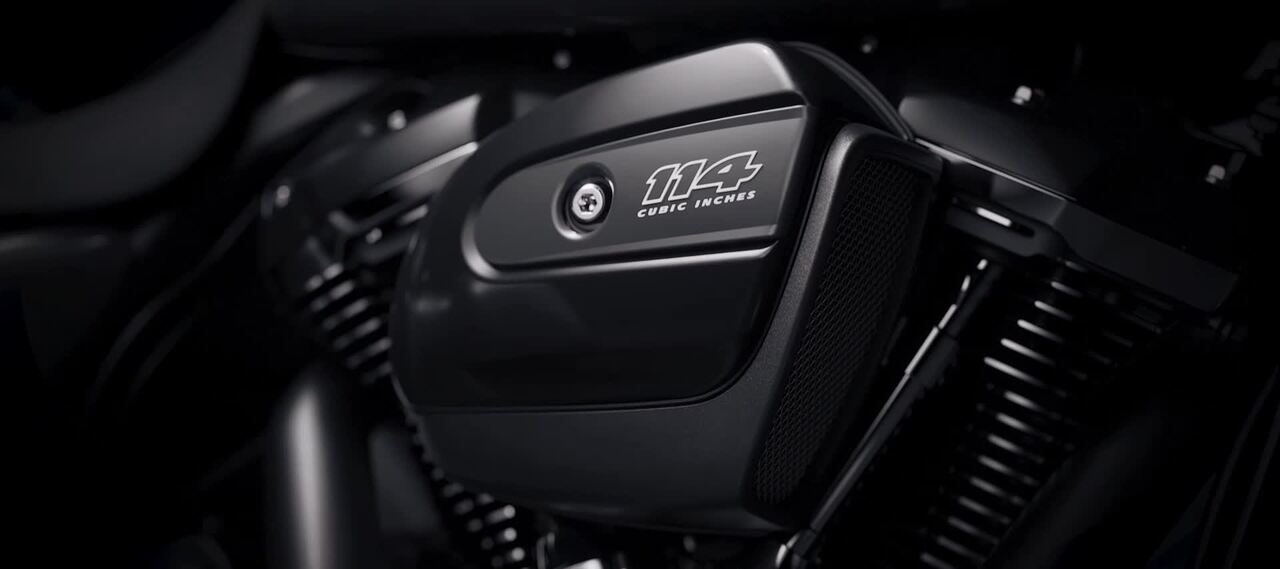

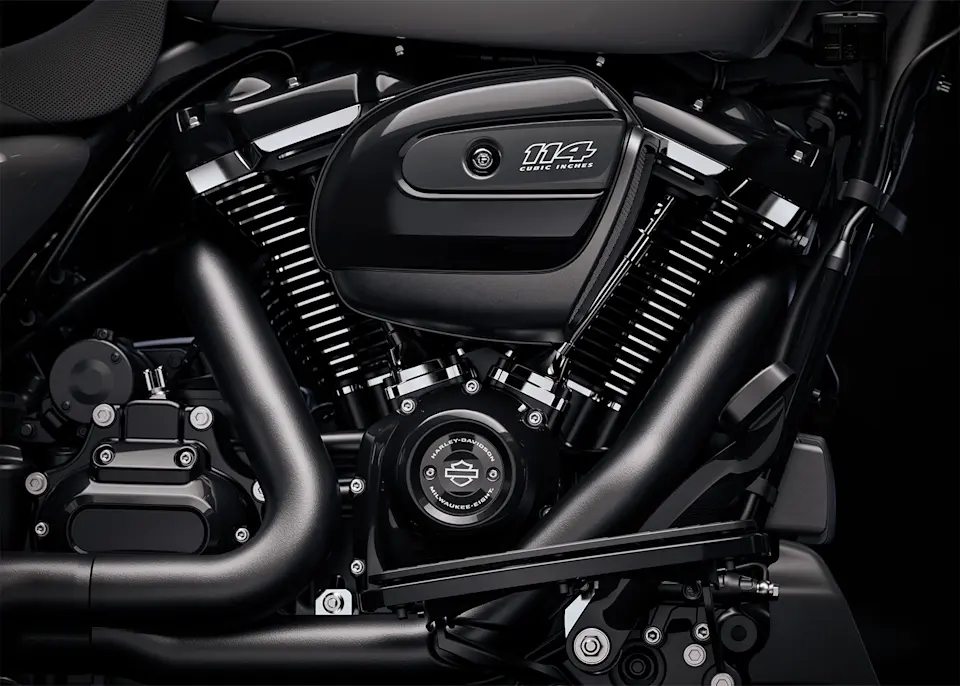

The Milwaukee-Eight® V-twin engine has plenty of power for easy highway cruising, effortless passing, and eye-watering acceleration.

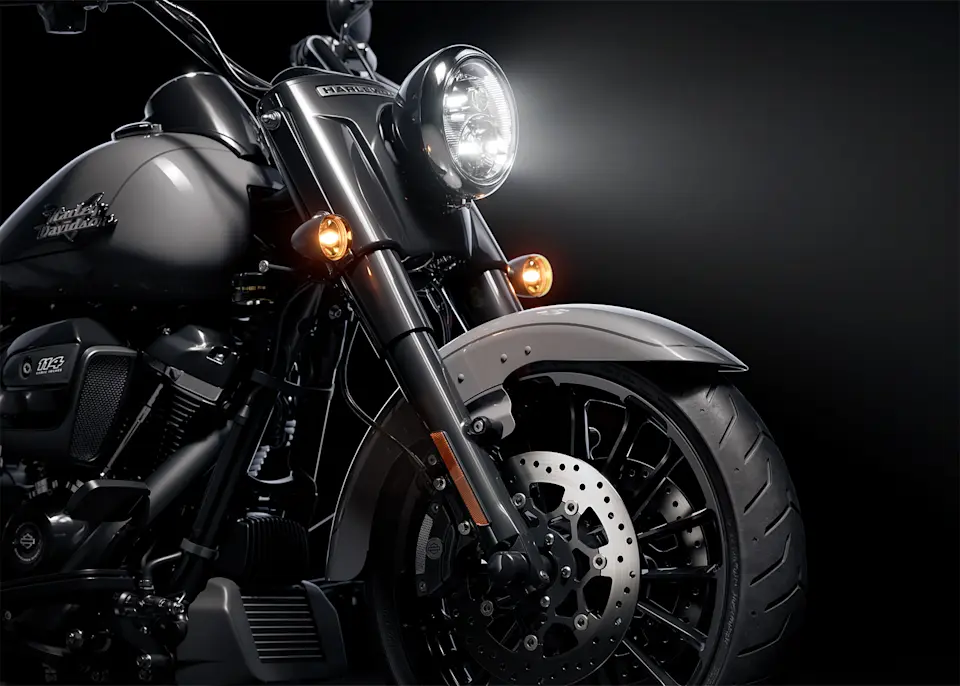

Dual-bending valve front suspension is plush and soft on the highway, but firm enough to maintain composure during hard riding.
Rear suspension features a quick-adjust preload knob to tune performance when adding a passenger or loading up the trunk.

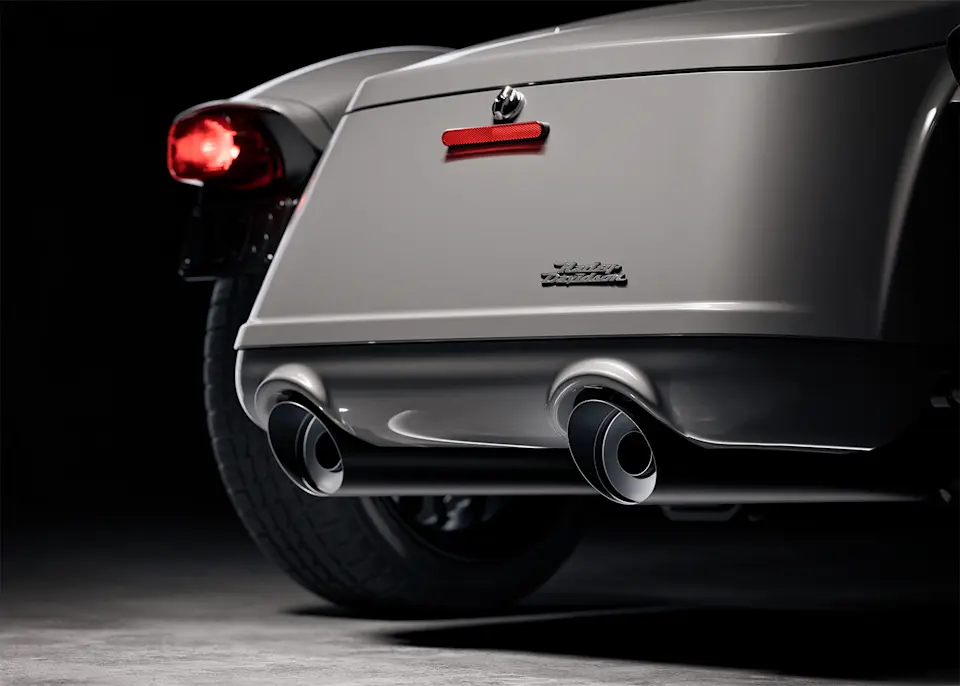

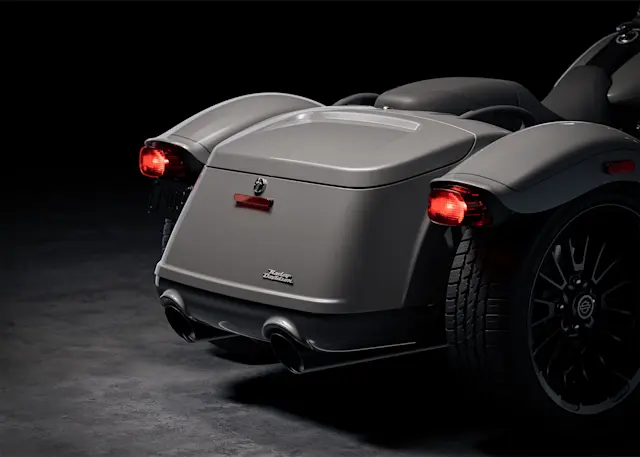

Dual mufflers with slash-down tips between the rear wheels deliver a classic hot rod style.
| LENGTH | 2,615 mm |
| Width | 1,405 mm |
| Seat Height, Unladen | 700 mm |
| Ground Clearance | 125 mm |
| Rake | 26 |
| TYRES, FRONT SPECIFICATION | MT 130/60B19 M/C 61H |
| TYRES, REAR SPECIFICATION | P215/45R18 83T |
| Tyres, Type | Dunlop® Harley-Davidson Series, bias blackwall front and radial blackwall rear |
| FUEL CAPACITY | 22.7L |
| OIL CAPACITY (W/FILTER) | 4.7L |
| WEIGHT, IN RUNNING ORDER | 513 kg |
| Luggage Capacity -Volume | 0.06 m3 |
| ENGINE | Milwaukee-Eight® 114 |
| BORE | 102 mm |
| STROKE | 114.3 mm |
| DISPLACEMENT | 1868 cc |
| COMPRESSION RATIO | 10.5:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | Shorty slash down-style chrome finish mufflers |
| Engine Torque Testing Method | EC 134/2014 |
| Engine Torque | 157 Nm |
| Engine Torque (rpm) | 3000 |
| HORSEPOWER | 83 HP / 62 kW @ 4750 rpm |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 6.5l/100 km |
| CO2 EMISSIONS TESTING METHOD | EU 134/2014 |
| CO2 EMISSIONS | 151 g/km CO2 |
| PRIMARY DRIVE | Chain, 34/46 ratio |
| GEAR RATIOS (OVERALL) 1ST | 10.534 |
| GEAR RATIOS (OVERALL) 2ND | 7.302 |
| GEAR RATIOS (OVERALL) 3RD | 5.423 |
| GEAR RATIOS (OVERALL) 4TH | 4.392 |
| GEAR RATIOS (OVERALL) 5TH | 3.741 |
| GEAR RATIOS (OVERALL) 6TH | 3.157 |
| FRONT FORK | 49mm dual bending valve |
| REAR SHOCKS | Hand-adjustable emulsion rear suspension |
| WHEELS, FRONT TYPE | Cast aluminium |
| WHEELS, REAR TYPE | Cast aluminium |
| Brakes, Caliper Type | Front: 32mm 4 piston fixed, Rear: floating 36mm piston integrated park brake |
| Brakes, Rotor Type | Dual floating rotors (front), fixed rotor (rear) |
| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | Headlamp: Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; Tail/Stop/Front Signal Lights: Incandescent |
| GAUGES | Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator |
| Anti-lock Brake System (ABS) | Included |
| Electronic Linked Braking (ELB) | Included |
| Traction Control System (TCS) | Included |
| Drag-torque Slip Control System (DSCS) | Included |
| Cornering Enhanced Anti-lock Brake System (C-ABS) | Included |
| Cornering Enhanced Electronic Linked Braking (C-ELB) | Included |
| Cornering Enhanced Traction Control System (C-TCS) | Included |
