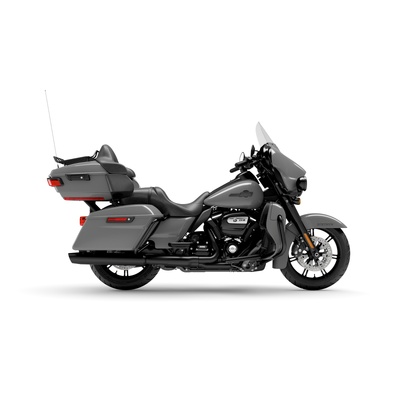

The Harley-Davidson Ultra Limited gives you premium touring performance with no compromises to the ride.
Upright riding position
Floorboards
Passenger seat with backrest
Saddlebags
Frame mounted fairing
Tall
Rider safety enhancements available
LENGTH | 2,600 mm |
SEAT HEIGHT, UNLADEN | 740 mm |
GROUND CLEARANCE | 135 mm |
RAKE | 26 |
TRAIL | 170 mm |
WHEELBASE | 1,625 mm |
TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
TYRES, FRONT SPECIFICATION | BW 130/70B18 63H |
TYRES, REAR SPECIFICATION | BW 180/55B18 80H |
FUEL CAPACITY | 22.7L |
OIL CAPACITY (W/FILTER) | 4.7L |
WEIGHT, AS SHIPPED | 399 kg |
WEIGHT, IN RUNNING ORDER | 416 kg |
LUGGAGE CAPACITY -VOLUME | 0.132 m3 |
Engine | Twin-Cooled™ Milwaukee-Eight™ 114 |
Bore | 102 mm |
STROKE | 114.3 mm |
DISPLACEMENT | 1,868 cc |
COMPRESSION RATIO | 10.5:1 |
FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
EXHAUST | 2:1:2 dual exhaust with 4 in. tapered mufflers |
ENGINE TORQUE TESTING METHOD | EC 134/2014 |
ENGINE TORQUE\xA03 | 164 Nm |
ENGINE TORQUE (RPM) | 3000 |
HORSEPOWER | 89 HP / 66 kW @ 5020 rpm |
LEAN ANGLE, RIGHT (DEG.) | 32 |
LEAN ANGLE, LEFT (DEG.) | 32 |
FUEL ECONOMY TESTING METHOD | EU 134/2014 |
FUEL ECONOMY | 6.3 l/100 km |
PRIMARY DRIVE | Chain, 34/46 ratio |
GEAR RATIOS (OVERALL) 1ST | 9.593 |
GEAR RATIOS (OVERALL) 2ND | 6.65 |
GEAR RATIOS (OVERALL) 3RD | 4.938 |
GEAR RATIOS (OVERALL) 4TH | 4 |
GEAR RATIOS (OVERALL) 5TH | 3.407 |
GEAR RATIOS (OVERALL) 6TH | 2.875 |
FRONT FORK | 49 mm Dual Bending Valve |
REAR SHOCKS | Premium standard height hand-adjustable rear suspension |
WHEELS, FRONT TYPE | Gloss Black Slicer II |
WHEELS, REAR TYPE | Gloss Black Slicer II |
BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed front and rear |
BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | LED 34-watt, 915 lumen low beam, 37-watt, 915 lumen high beam with switchable 20-watt, 1,220 lumen LED Fog Lamps. Total of 2,136 lumen output at low beam with fog lights; 8W/28W tail/stop, front signal lights; LED rear turn signals |
GAUGES | Gauges styled to complement each vehicle. Display features odometer, trip A, trip B, range to empty and gear indicator; and larger tell-tale indicators. |
INFOTAINMENT SYSTEM | Boom!™ Box GTS |
SCREEN SIZE | 165 mm |
TYPE | Full Color TFT |
WATTS PER CHANNEL | 25 |
SPEAKERS | 4 |
SPEAKER SIZE | 5.25 inch standard |
AM | Standard |
FM | Standard |
SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION | Supported |
LANGUAGES | English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic |
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Phone dependent |
RIDER/PASSENGER INTERCOM | Standard (Passenger Headset Sold Separately) |
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Standard |
TEXT-TO-SPEECH (TTS) LANGUAGES | Phone dependent |
USB | USB/MTP/iPod/iPhone |
BLUETOOTH | Phone/Media Supported |
ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
ELECTRONIC LINKED BRAKING (ELB) | Included |
VEHICLE HOLD CONTROL (VHC) | Included |
TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
