The original cross-country touring machine.
Upright riding position
Floorboards

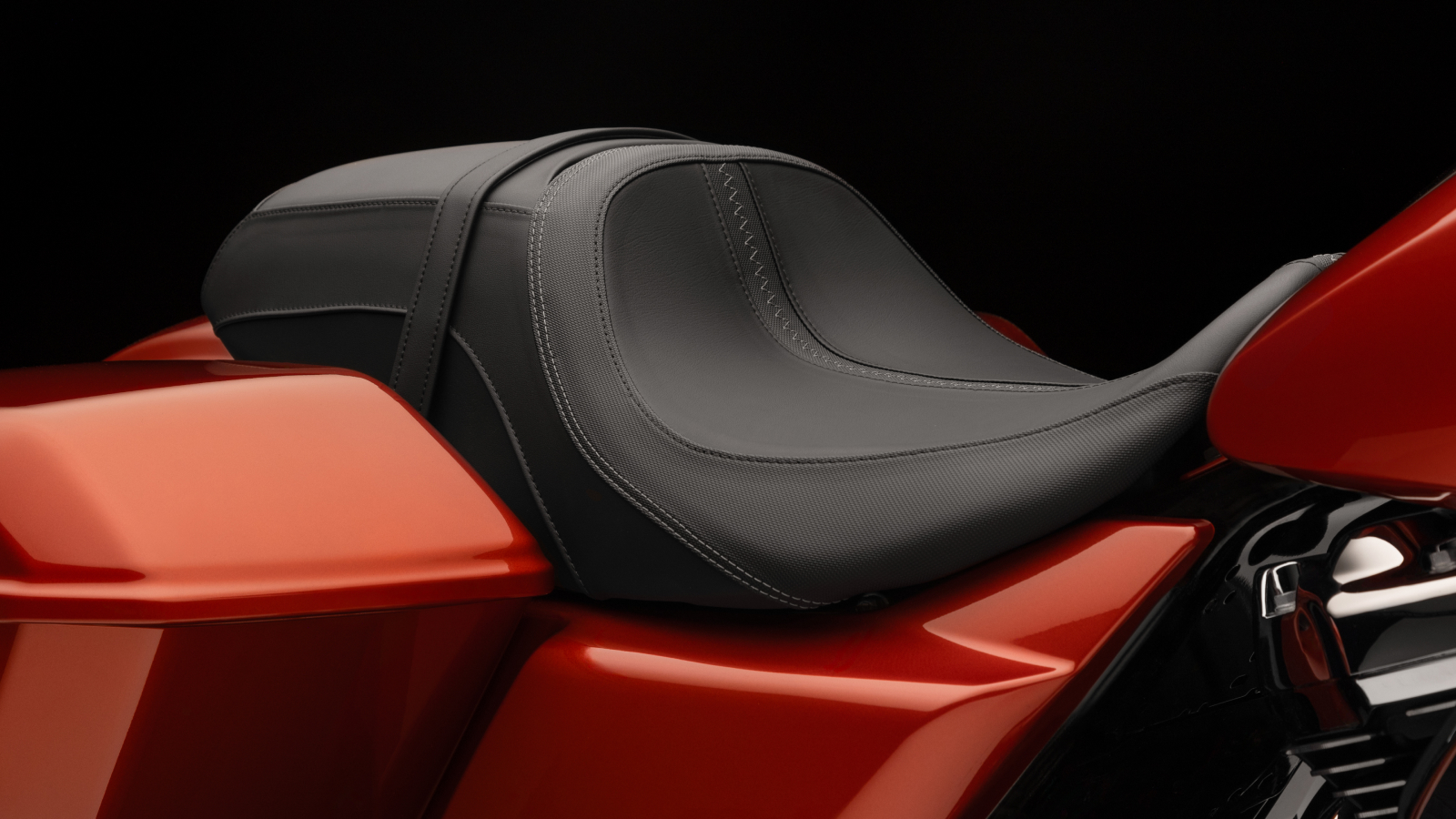

Passenger seat
Saddlebags

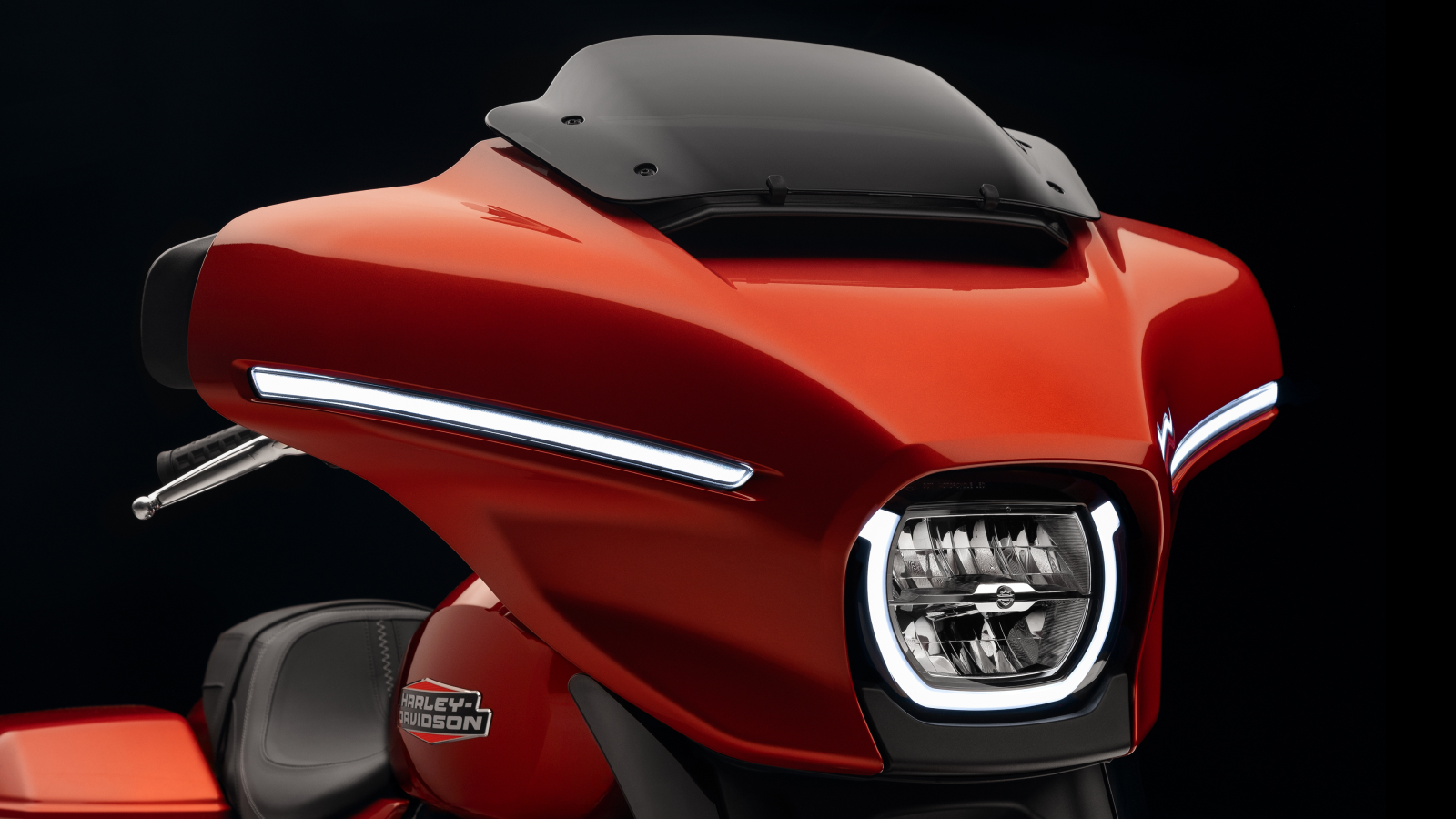

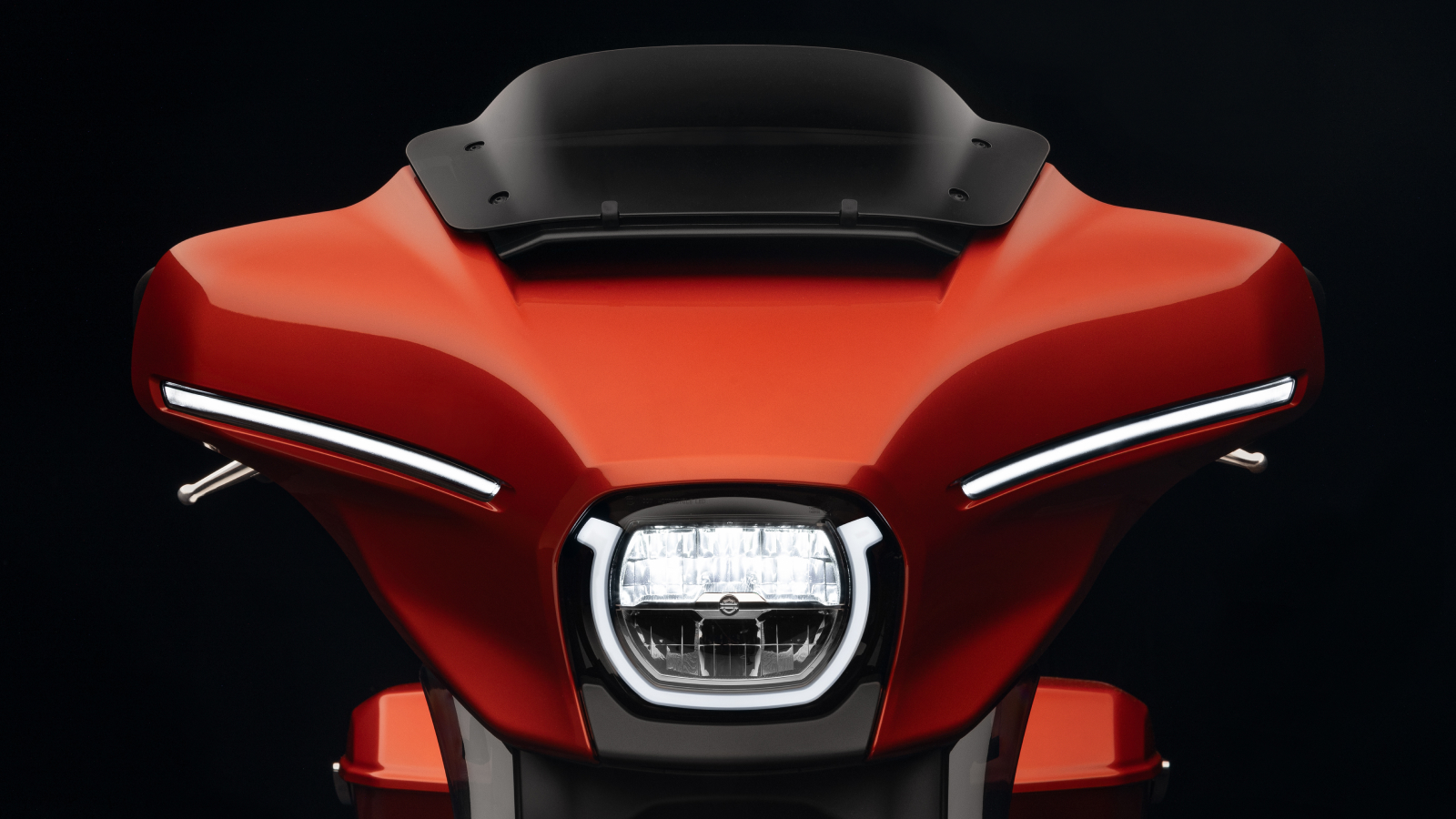

Fork mounted fairing

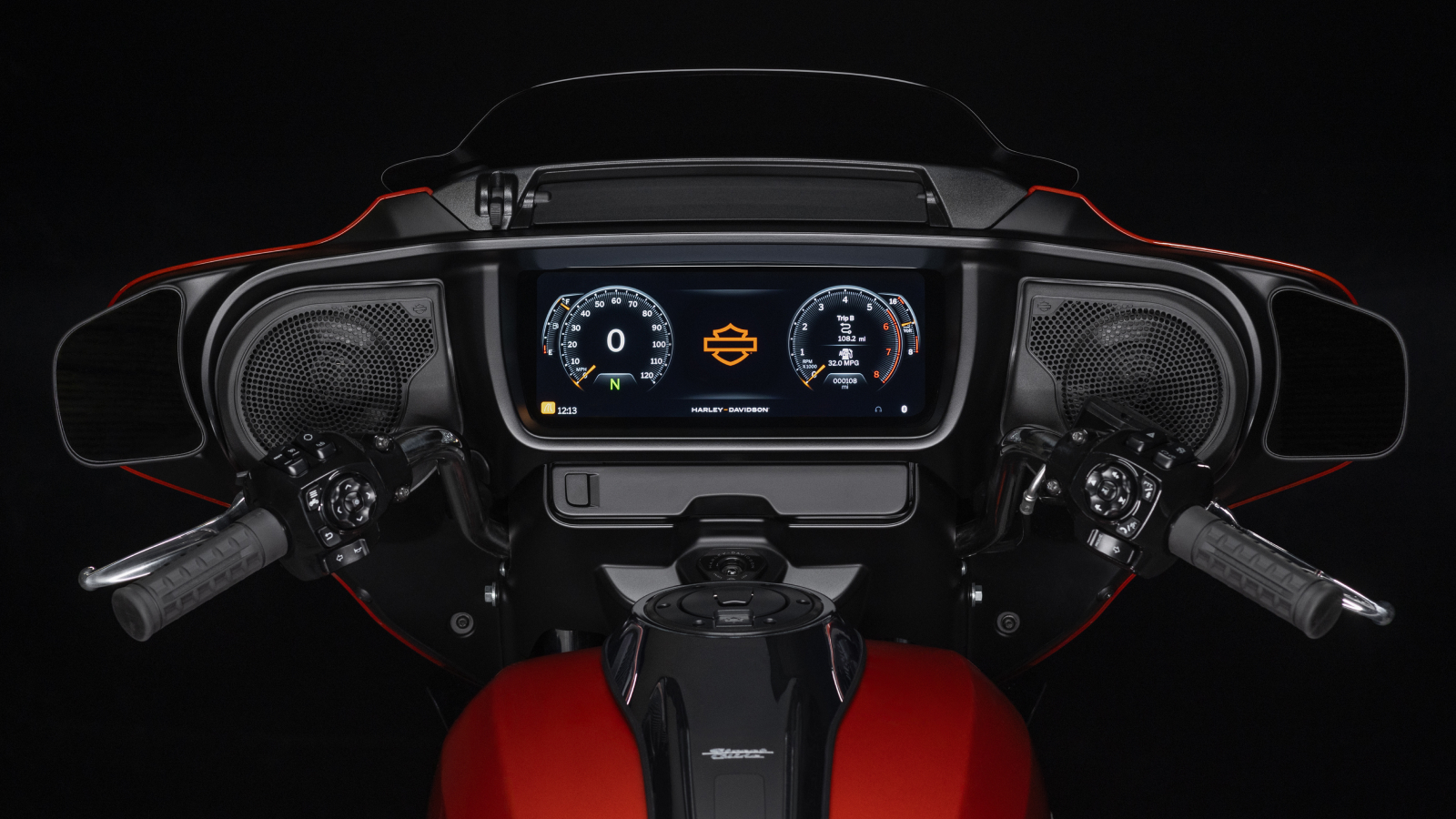

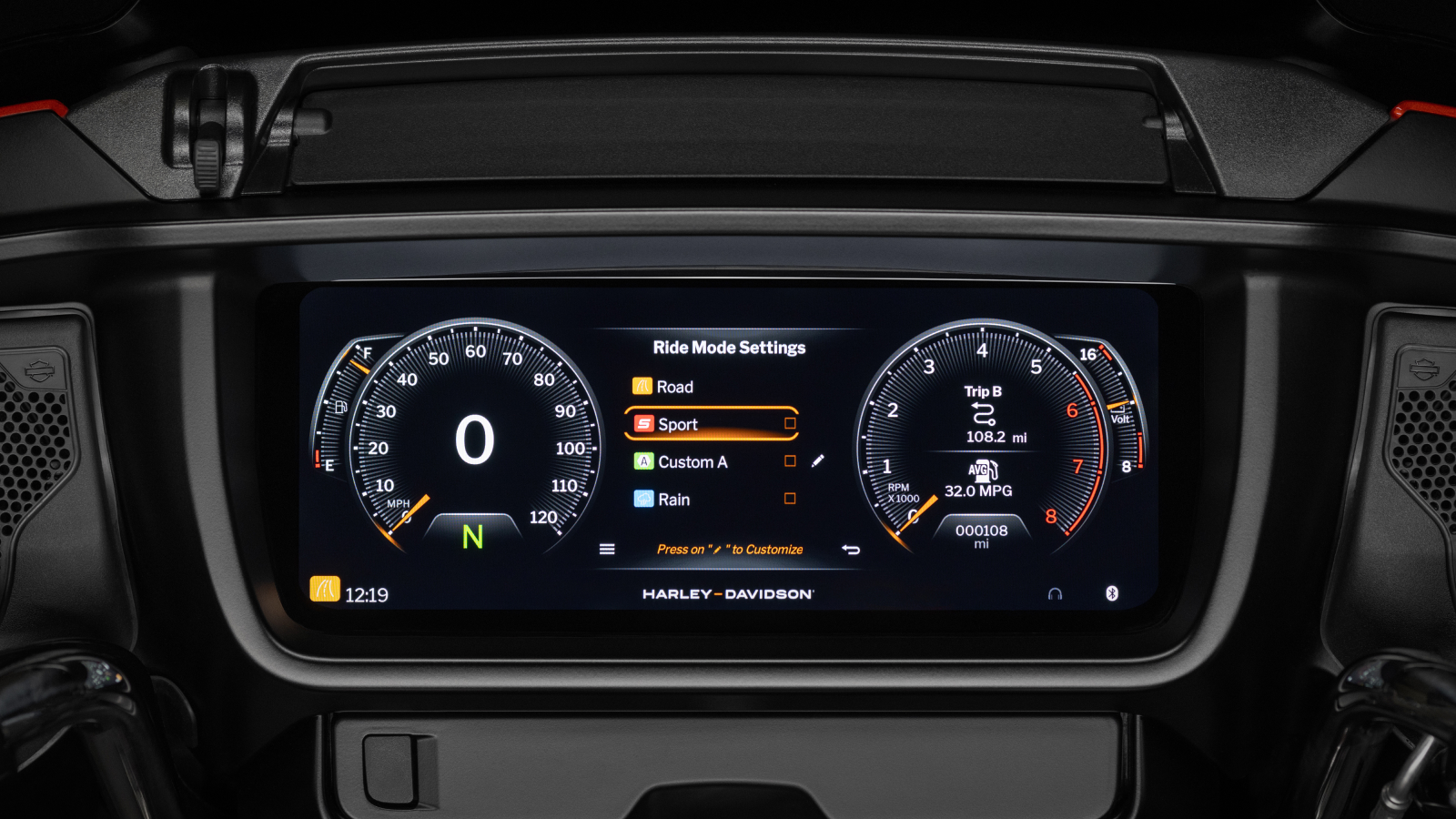

Infotainment
Rider safety enhancements available
| LENGTH | 2,410 mm |
| SEAT HEIGHT, UNLADEN | 715 mm |
| GROUND CLEARANCE | 140 mm |
| RAKE | 26 |
| TRAIL | 170 mm |
| WHEELBASE | 1,625 mm |
| TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
| TYRES, FRONT SPECIFICATION | 130/60B19 61H |
| TYRES, REAR SPECIFICATION | 180/55B18 80H |
| FUEL CAPACITY | 22.7L |
| OIL CAPACITY (W/FILTER) | 4.7L |
| WEIGHT, AS SHIPPED | 351 kg |
| WEIGHT, IN RUNNING ORDER | 368 kg |
| LUGGAGE CAPACITY -VOLUME | 0.069 m3 |

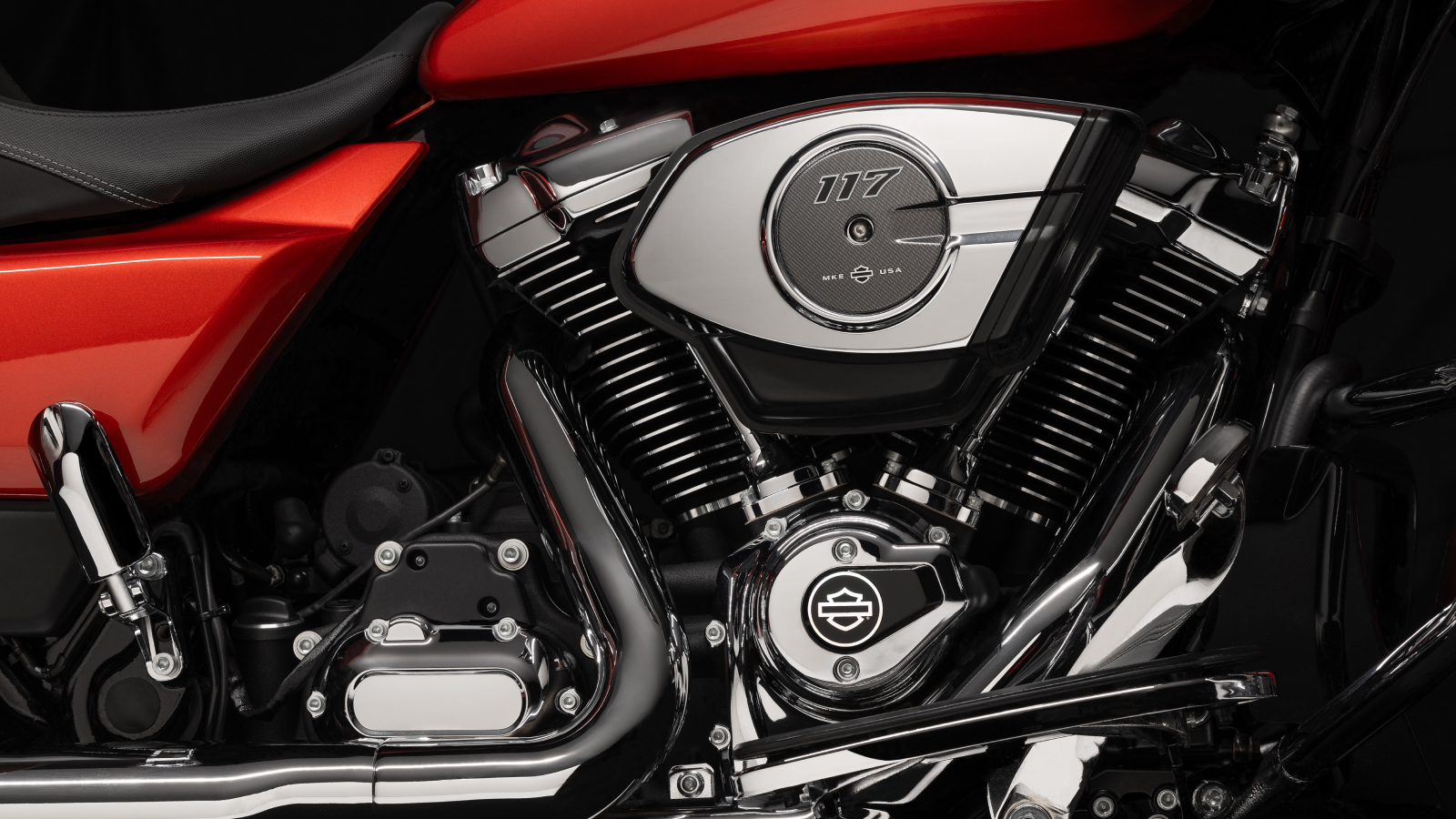

| Engine | Milwaukee-Eight™ 117 |
| Bore | 103.5 mm |
| STROKE | 114.3 mm |
| DISPLACEMENT | 1,923 cc |
| COMPRESSION RATIO | 10.3:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2-1-2 dual exhaust with tapered mufflers |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
| ENGINE TORQUE\xA03 | 175 Nm |
| ENGINE TORQUE (RPM) | 3500 |
| HORSEPOWER | 107 HP / 80 kW @ 5020 rpm |
| LEAN ANGLE, RIGHT (DEG.) | 32 |
| LEAN ANGLE, LEFT (DEG.) | 32 |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 6l/100 km |
| PRIMARY DRIVE | Chain, 34/46 ratio |
| GEAR RATIOS (OVERALL) 1ST | 9.593 |
| GEAR RATIOS (OVERALL) 2ND | 6.65 |
| GEAR RATIOS (OVERALL) 3RD | 4.938 |
| GEAR RATIOS (OVERALL) 4TH | 4 |
| GEAR RATIOS (OVERALL) 5TH | 3.407 |
| GEAR RATIOS (OVERALL) 6TH | 2.875 |

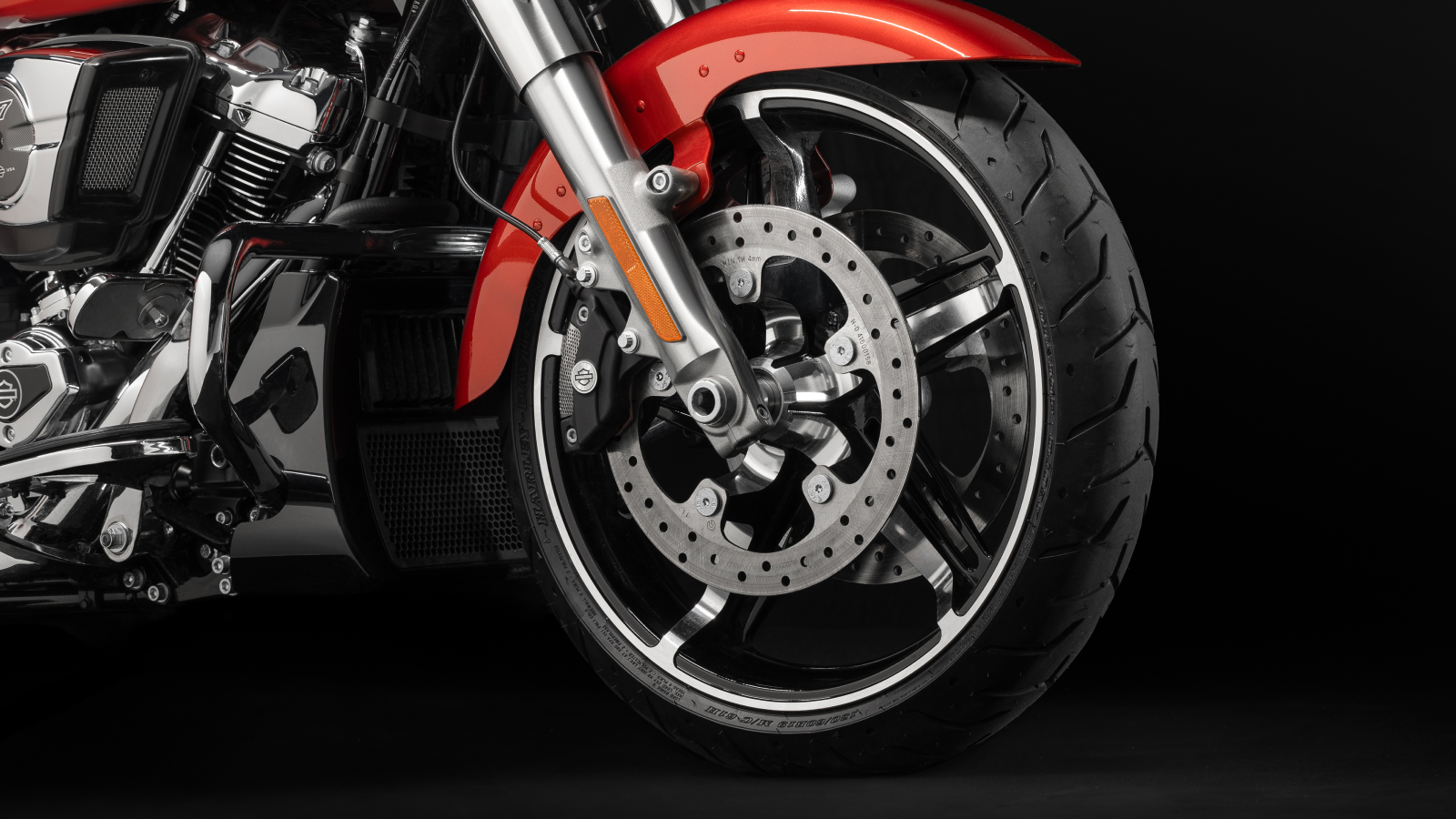

| FRONT FORK | 49 mm Dual Bending Valve |
| REAR SHOCKS | 76.2 mm Dual Outboard Emulsion with Preload Adjustability |
| WHEELS, FRONT TYPE | Cast aluminum |
| WHEELS, REAR TYPE | Cast aluminum |
| BRAKES, CALIPER TYPE | 32 mm, 4-piston fixed dual axially mounted front, and single axially mounted rear |
| BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |

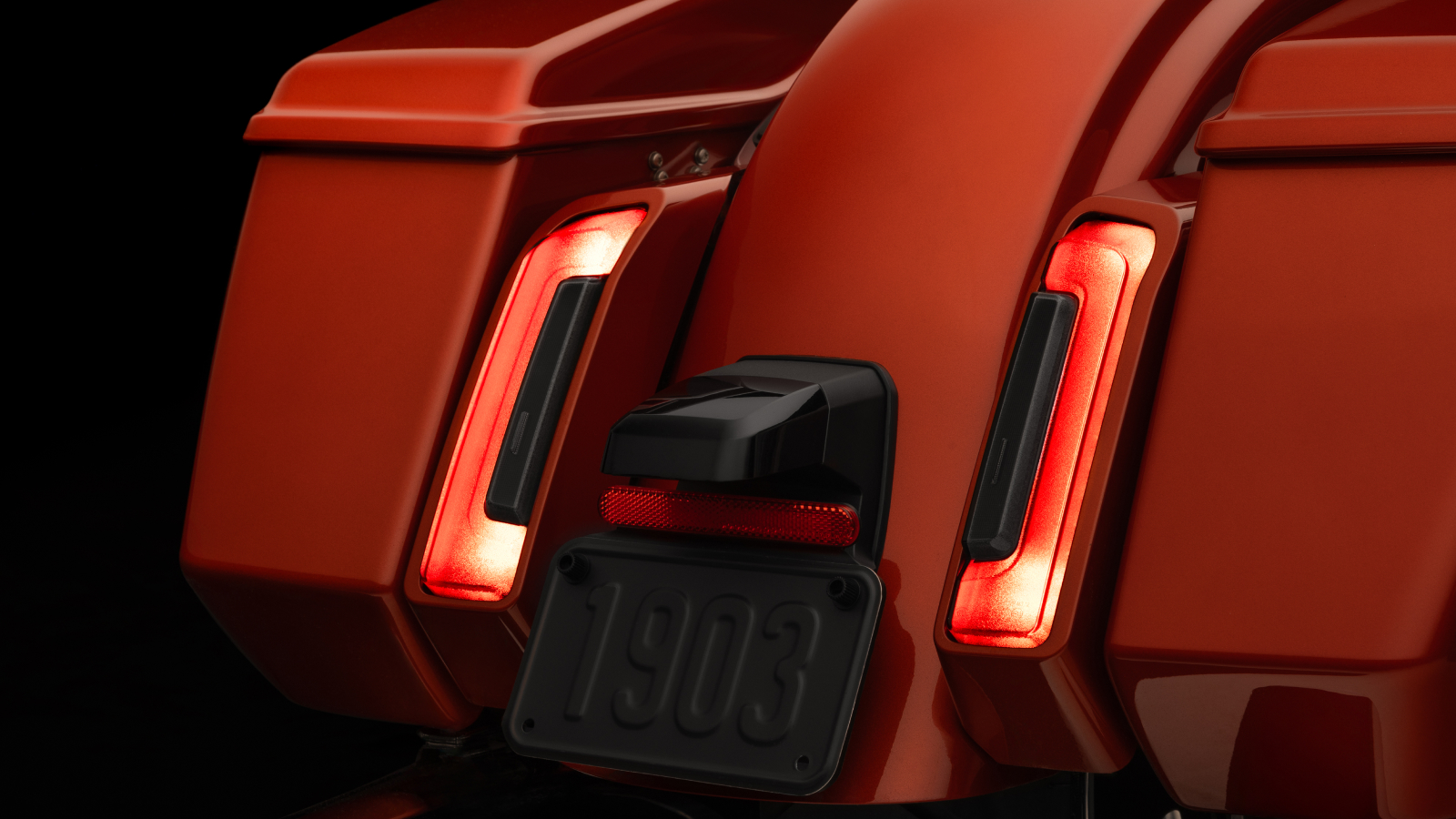

| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | LED headlamp, tail/stop, front signal lights and rear turn signals |
| GAUGES | Digital gauges integrated within the display. |

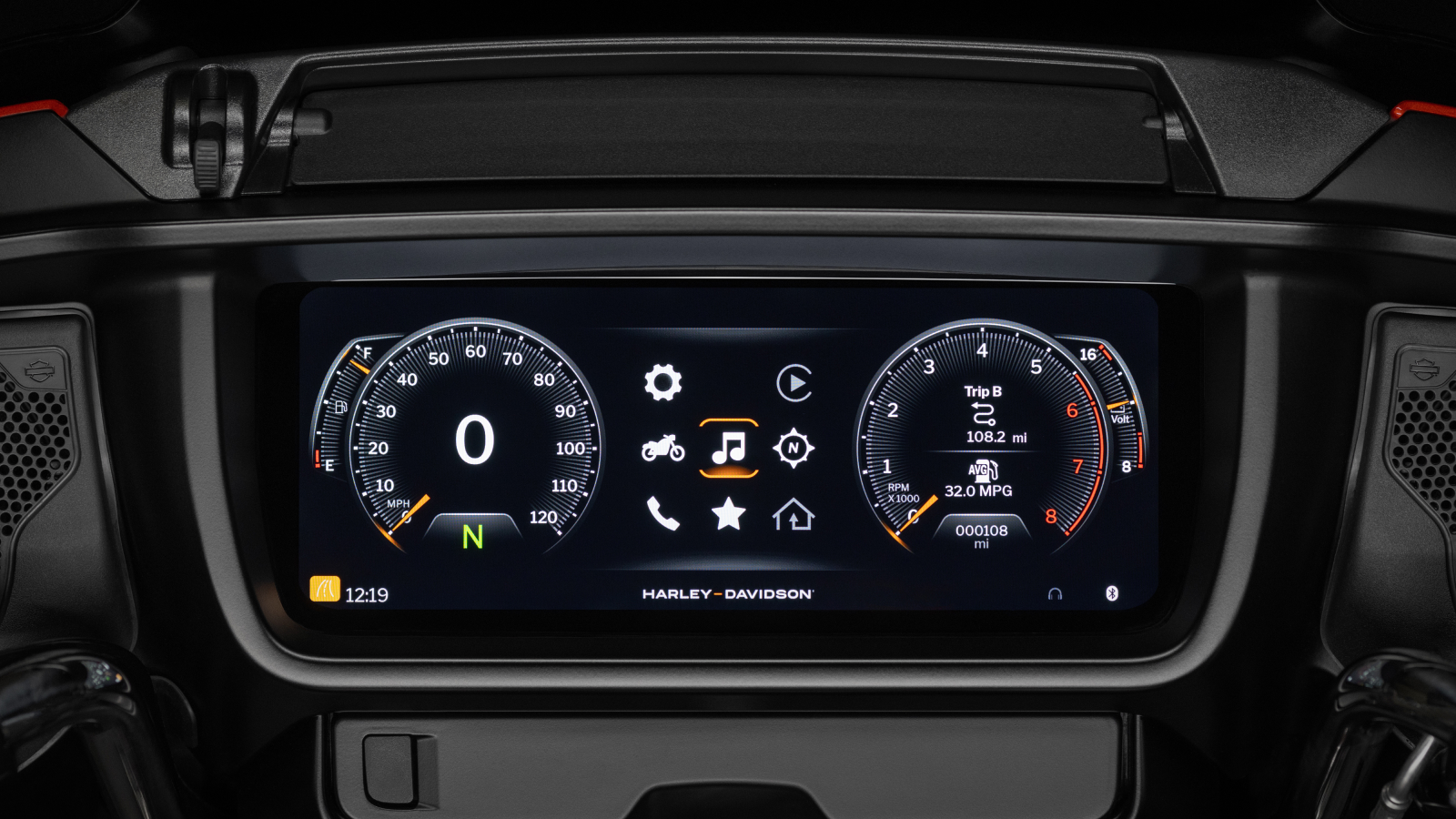

| INFOTAINMENT SYSTEM | Skyline™ OS |
| SCREEN SIZE | 312 mm |
| TYPE | Full Color TFT |
| WATTS PER CHANNEL | 50 |
| SPEAKERS | 2 |
| SPEAKER SIZE | Two 5.25 in. fairing speakers |
| AM | Standard |
| FM | Standard |
| SD CARD, FLASH DRIVE AND MP3 - VIA USB CONNECTION | Supported |
| LANGUAGES | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
| HANDS-FREE MOBILE PHONE - VIA BLUETOOTH | Standard |
| VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY | Phone dependent |
| VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION | Embeded on Vehicle |
| RIDER/PASSENGER INTERCOM | Standard (passenger headset sold separately), VOX is available for HD headsets |
| VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS) | Arabic, Bahasa (Indonesian), Catalan, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (UK/USA default), Finnish, French (Canada/France), German, Hebrew, Hungarian, Indonesian, Italian, Japanese, Korean, Malay, Norwegian, Polish, Portuguese (Brazil/Portugal), Romanian, Russian, Siamese (Thai), Slovak, Spanish (Mexico/Spain), Swedish, Tagalog, Turkish, Vietnamese |
| USB | USB-C/MTP/iPod/iPhone, any device with proper adapters to the electric power outlet located in the inner fairing storage. |
| PHONE CONNECTIVITY | Apple CarPlay (wireless or wired) |
| BLUETOOTH | Phone/Media Player, Headset |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| VEHICLE HOLD CONTROL (VHC) | Included |
| TIRE PRESSURE MONITORING SYSTEM (TPMS) | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
| CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS) | Included |
