Street Bob

2024 STREET BOB™ 114
STRIPPED DOWN FOR THE STREET.

Description

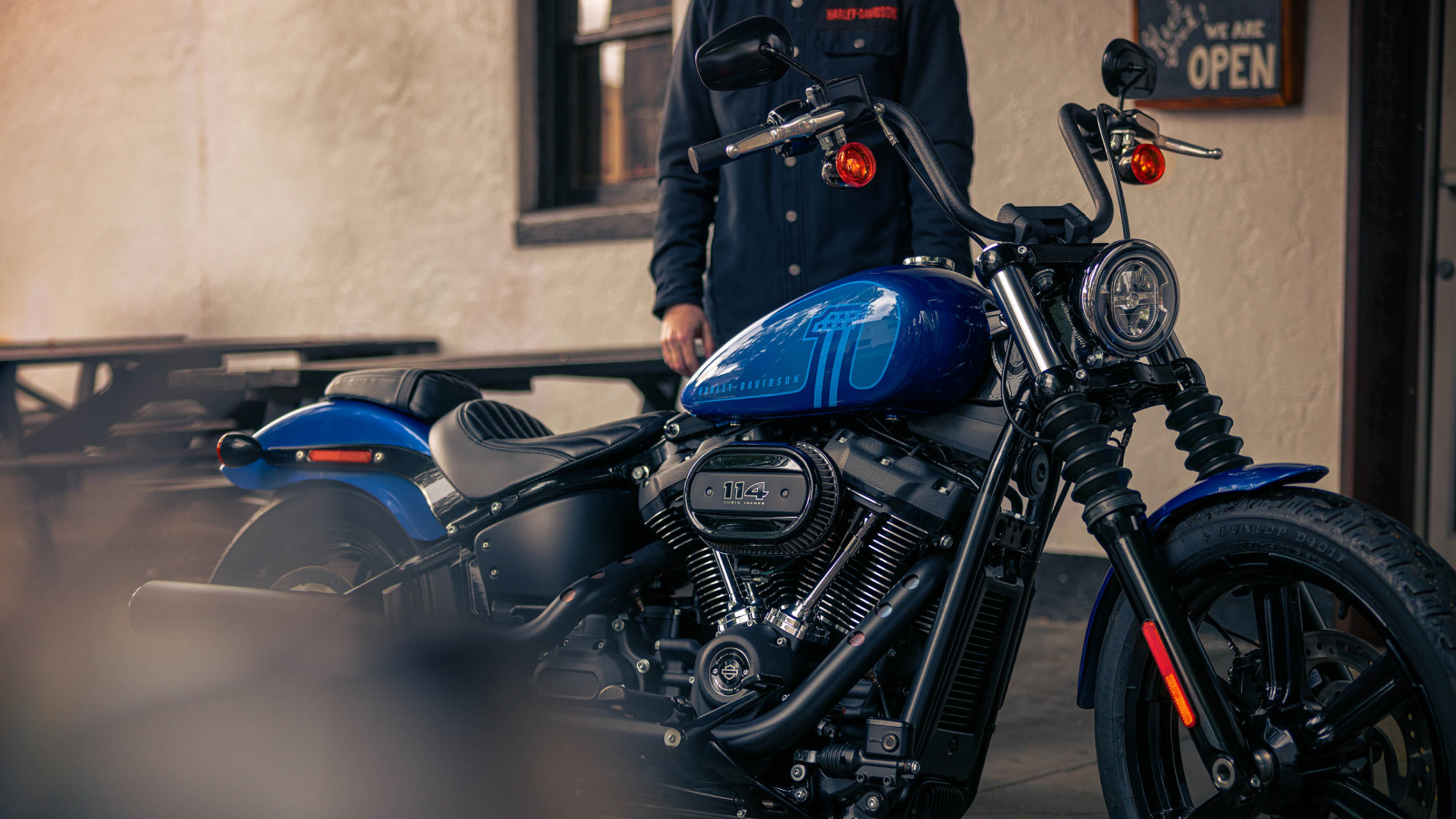

A perfect performance base for customization, the Harley-Davidson Street Bob 114 is a gritty, lean, and mean bobber cloaked in black.

Upright riding position

Mid-mount foot controls

Passenger seat

Low

Key Features

MILWAUKEE-EIGHT™ 114 ENGINE

Loads of torque for on-demand power you can feel with each twist of the throttle, accompanied by that evocative H-D sound.

SOFTAIL™ FRAME

The frame retains classic Softail lines, and its stiff and lightweight design allows for a responsive ride unlike anything you have felt before.

ANNIHILATOR WHEELS

Six-spoke cast wheels with fierce lines command attention and accentuate the custom look of this bob.

TWO-UP SET-UP

Seating for two with passenger pegs and pillion.

Detailed Specs

LENGTH	2,320 mm
SEAT HEIGHT, UNLADEN	680 mm
GROUND CLEARANCE	125 mm
RAKE	30
TRAIL	157 mm
WHEELBASE	1,630 mm
TYRES, TYPE	Dunlop™ Harley-Davidson Series, bias blackwall front and rear
TYRES, FRONT SPECIFICATION	100/90B19,57H,BW
TYRES, REAR SPECIFICATION	150/80B16,77H,BW
FUEL CAPACITY	13.2L
OIL CAPACITY (W/FILTER)	4.7L
WEIGHT, AS SHIPPED	286 kg
WEIGHT, IN RUNNING ORDER	297 kg

Engine	Milwaukee-Eight™ 114
Bore	102 mm
STROKE	114.3 mm
DISPLACEMENT	1,868 cc
COMPRESSION RATIO	10.5:1
FUEL SYSTEM	Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST	2-into-2 staggered; catalyst in muffler

ENGINE TORQUE TESTING METHOD	EC 134/2014
ENGINE TORQUE\xA03	155 Nm
ENGINE TORQUE (RPM)	3000
HORSEPOWER	93 HP / 69 kW @ 5020 rpm
LEAN ANGLE, RIGHT (DEG.)	28.5
LEAN ANGLE, LEFT (DEG.)	28.5
FUEL ECONOMY TESTING METHOD	EU 134/2014
FUEL ECONOMY	5.5 l/100 km

FRONT FORK	Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
REAR SHOCKS	Hidden, free piston, coil-over monoshock; 43mm stroke; toolless hydraulic preload adjustment
WHEELS, FRONT TYPE	Black, Annihilator cast aluminum
WHEELS, REAR TYPE	Black, Annihilator cast aluminum
BRAKES, CALIPER TYPE	4-piston fixed front and 2-piston floating rear
BRAKES, ROTOR TYPE	Solid, uniform expansion rotors

LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS	All LED, low beam, high beam & signature position lamp; Integrated, multi-function LED stop/tail/turn signals; Incandescent bullet turn signals
GAUGES	2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

ANTI-LOCK BRAKE SYSTEM (ABS)

Included
