Sportster S

2024 SPORTSTER™ S
ALWAYS PERFORM, NEVER CONFORM.

Description

Building on a legacy born in 1957, the sophisticatedly brutish Harley-Davidson Sportster'S advances traits that everyone loved in its predecessors: wickedly quick, impressively nimble, and way too much fun to ride.

Forward riding position

Forward foot controls

Low

Rider safety enhancements available

Key Features

REVOLUTION™ MAX 1250T ENGINE

Featuring double-overhead camshafts and variable valve timing, the Revolution Max 1250T is a liquid-cooled powertrain designed to give you a strong burst of power when you want it and help you stay in control while riding.

RIDER TECHNOLOGY

Choose from three pre-programmed Ride Modes—Sport, Road, or Rain—or create your own custom mode with specific settings for power delivery, engine braking, and cornering.

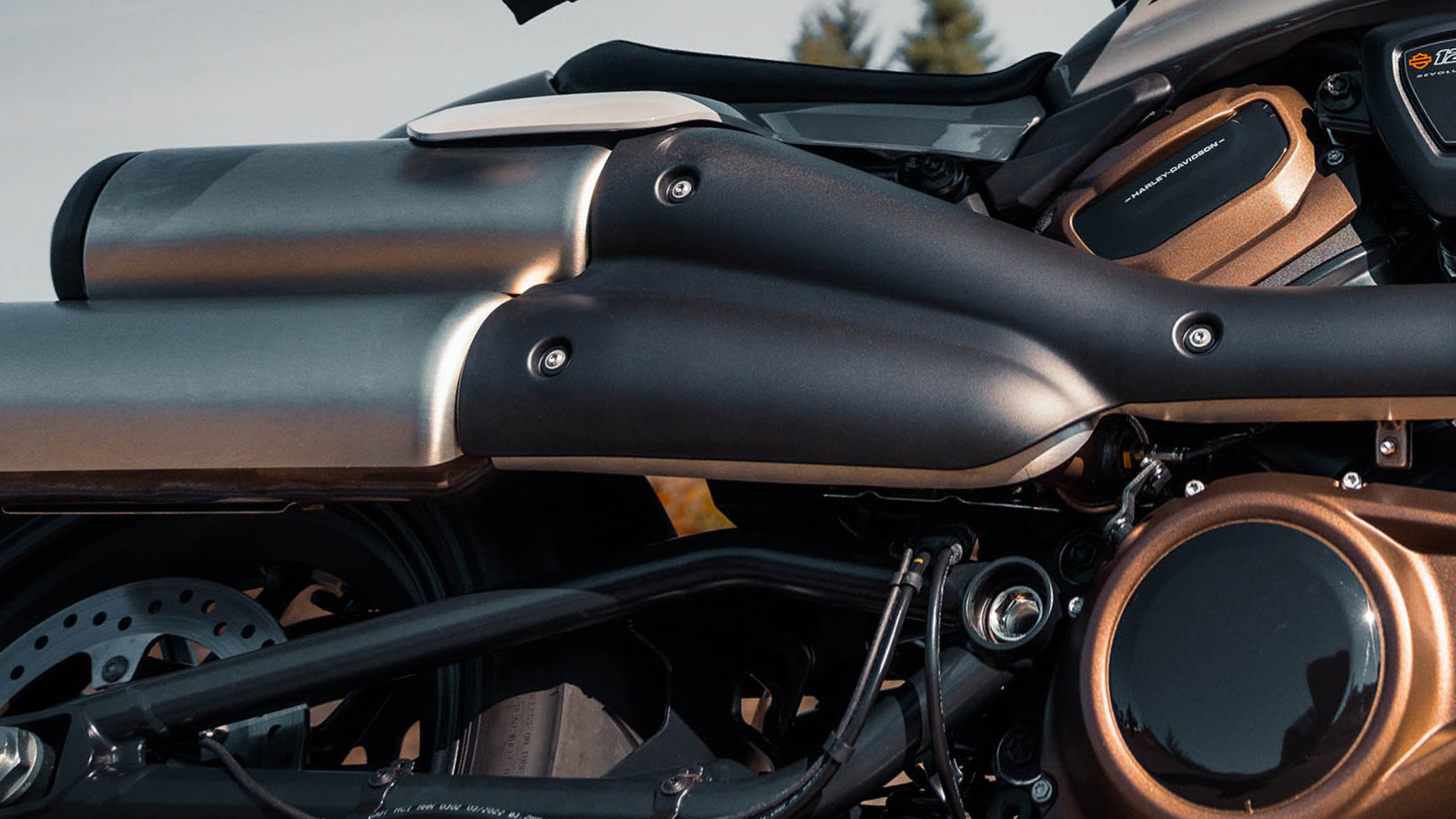

HIGH-MOUNTED EXHAUST

Inspired by the glory days of H-D flat-track racing, the pipes are crafted from corrosion-resistant, 304-series stainless steel and engineered to deflect exhaust heat away from the rider’s legs and the bike’s tail section.

INSTRUMENTATION

A Bluetooth™-equipped, four-inch-round, thin-film transistor display shows digital gauges, indicators, ride modes, and turn-by-turn navigation when paired with the Harley-Davidson mobile app.

CHASSIS

The Revolution Max 1250T is a structural component of the motorcycle chassis, which significantly reduces overall weight, lowers the center of gravity, and improves handling.

Detailed Specs

LENGTH	2,270 mm
SEAT HEIGHT, UNLADEN	765 mm
GROUND CLEARANCE	90 mm
RAKE	30
TRAIL	148 mm
WHEELBASE	1,520 mm
TYRES, TYPE	Dunlop™ Harley-Davidson Series, radial
TYRES, FRONT SPECIFICATION	160/70R17 73V
TYRES, REAR SPECIFICATION	180/70R16 77V
FUEL CAPACITY	11.8L
OIL CAPACITY (W/FILTER)	4.5L
WEIGHT, AS SHIPPED	221 kg
WEIGHT, IN RUNNING ORDER	228 kg

Engine	Revolution™ Max 1250T
Bore	105 mm
STROKE	72.3 mm
DISPLACEMENT	1,252 cc
COMPRESSION RATIO	12.0:1
FUEL SYSTEM	Electronic Sequential Port Fuel Injection (ESPFI)
EXHAUST	2-into-1-into-2; catalyst in muffler

ENGINE TORQUE TESTING METHOD	EC 134/2014
ENGINE TORQUE\xA03	126 Nm
ENGINE TORQUE (RPM)	6000
HORSEPOWER	119 HP / 89 kW @ 7500 rpm
LEAN ANGLE, RIGHT (DEG.)	34
LEAN ANGLE, LEFT (DEG.)	34
FUEL ECONOMY TESTING METHOD	EU 134/2014
FUEL ECONOMY	5.1 l/100 km

PRIMARY DRIVE	Gear, 49/89 ratio
GEAR RATIOS (OVERALL) 1ST	12.21
GEAR RATIOS (OVERALL) 2ND	9.022
GEAR RATIOS (OVERALL) 3RD	6.994
GEAR RATIOS (OVERALL) 4TH	5.641
GEAR RATIOS (OVERALL) 5TH	4.731
GEAR RATIOS (OVERALL) 6TH	4.131

FRONT FORK	43 mm inverted fork with compression, rebound and spring preload adjustability. Aluminum fork triple clamps.
REAR SHOCKS	Linkage-mounted, piggyback monoshock with compression, rebound and hydraulic spring preload adjustability
WHEELS, FRONT TYPE	Aluminum cast, satin black
WHEELS, REAR TYPE	Aluminum cast, satin black
BRAKES, CALIPER TYPE	Front: radially mounted, monoblock, 4-piston caliper Rear: floating, single piston caliper
BRAKES, ROTOR TYPE	Front: single rotor, floating, tower- mounted Rear: solid uniform expansion rotor

LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS	All LED headlamp, low and high beam with signature position lighting; All LED rear lighting; LED bullet turn signals
GAUGES	4 inch viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)

SCREEN SIZE	102 mm
TYPE	Color TFT
HEADSET SPECIFICATIONS (IF EQUIPPED)	Bluetooth
LANGUAGES	English (US/UK), German, Spanish (Mexico/Spain), French (Canada/France), Italian, Portuguese (Portugal/Brazil), Russian, Czech, Polish, Dutch, Turkish, Japanese, Korean, Chinese (Simplified), Siamese (Thai), Bahasa (Indonesian), Arabic
HANDS-FREE MOBILE PHONE - VIA BLUETOOTH	Standard
VOICE RECOGNITION LANGUAGES: PHONE FUNCTIONS ONLY	Phone dependent
VOICE RECOGNITION LANGUAGES: TUNER/MEDIA/NAVIGATION	Phone dependent
RIDER/PASSENGER INTERCOM	Standard (Passenger Headset Sold Separately)
VEHICLE INFORMATION SCREEN (AIR TEMPERATURE, OIL PRESSURE AND EITMS)	Standard
TEXT-TO-SPEECH (TTS) LANGUAGES	Phone dependent
USB	USB/MTP/iPod/iPhone
BLUETOOTH	Phone/Media Supported

ANTI-LOCK BRAKE SYSTEM (ABS)	Included
TRACTION CONTROL SYSTEM (TCS)	Included
DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS)	Included
TIRE PRESSURE MONITORING SYSTEM (TPMS)	Included
WHEEL LIFT MITIGATION	Included
CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS)	Included
CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS)	Included
CORNERING DRAG-TORQUE SLIP CONTROL SYSTEM (C-DSCS)	Included
ENHANCED LIFT MITIGATION	Included

DIMENSIONS

ENGINE

PERFORMANCE

DRIVE TRAIN

CHASSIS

ELECTRIC

INFOTAINMENT

RIDER SAFETY ENHANCEMENTS
