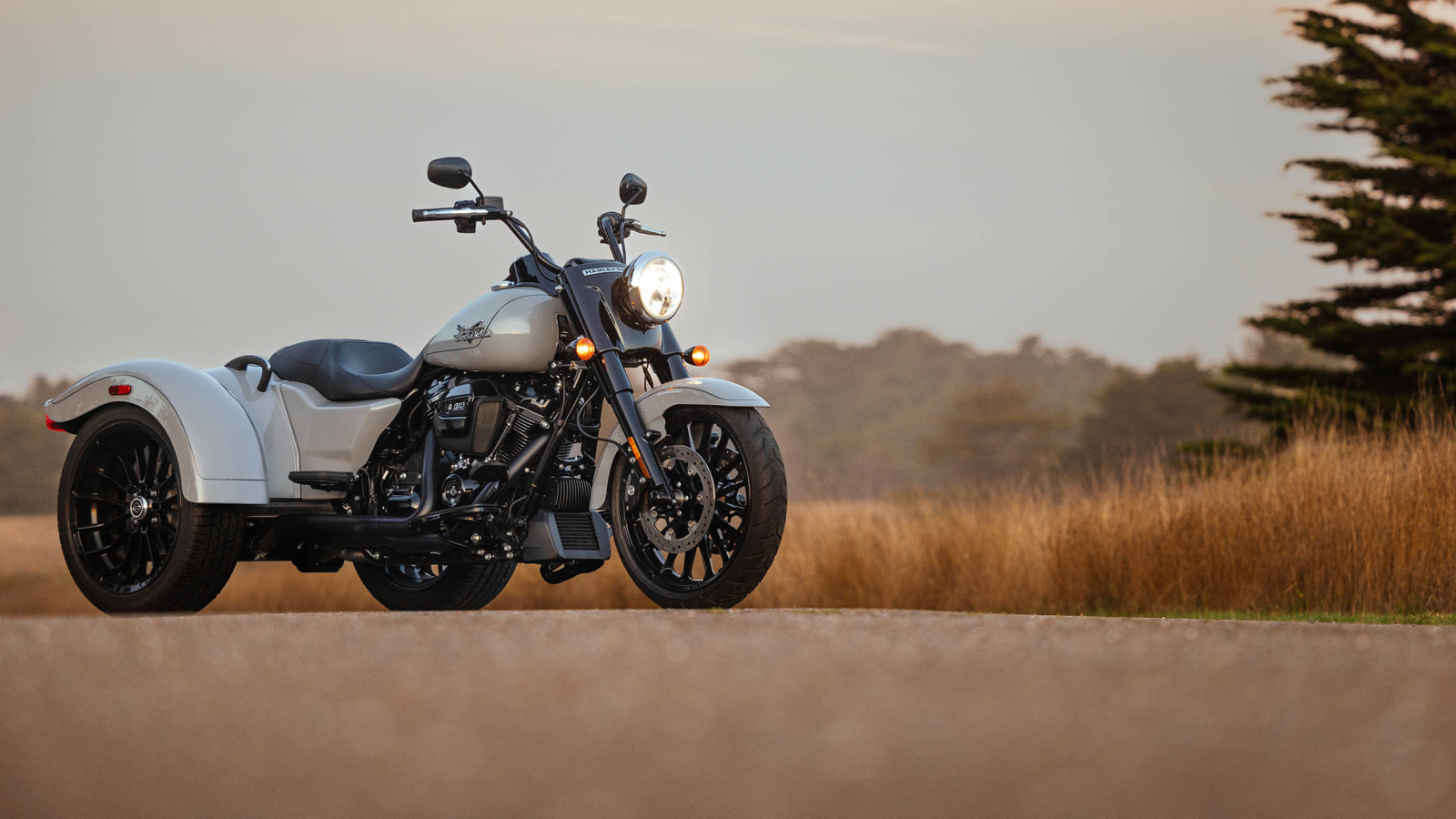

The Harley-Davidson Freewheeler delivers aggressive styling, enticing performance, and confident handling on three wheels.
Upright riding position
Floorboards
Passenger seat
Trunk
Rider safety enhancements available
| LENGTH | 2,615 mm |
| SEAT HEIGHT, UNLADEN | 700 mm |
| GROUND CLEARANCE | 125 mm |
| RAKE | 26 |
| TRAIL | 101 mm |
| WHEELBASE | 1,670 mm |
| TYRES, TYPE | Dunlop™ Harley-Davidson Series, bias blackwall front and rear |
| TYRES, FRONT SPECIFICATION | MT 130/60B19 M/C 61H |
| TYRES, REAR SPECIFICATION | P215/45R18 83T |
| FUEL CAPACITY | 22.7L |
| OIL CAPACITY (W/FILTER) | 4.7L |
| WEIGHT, AS SHIPPED | 496 kg |
| WEIGHT, IN RUNNING ORDER | 513 kg |
| LUGGAGE CAPACITY -VOLUME | 0.06 m3 |
| Engine | Milwaukee-Eight™ 114 |
| Bore | 102 mm |
| STROKE | 114.3 mm |
| DISPLACEMENT | 1,868 cc |
| COMPRESSION RATIO | 10.5:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | Shorty slash down-style chrome finish mufflers |
| ENGINE TORQUE TESTING METHOD | EC 134/2014 |
| ENGINE TORQUE\xA03 | 159 Nm |
| ENGINE TORQUE (RPM) | 3000 |
| HORSEPOWER | 87 HP / 65 kW @ 5020 rpm |
| FUEL ECONOMY TESTING METHOD | EU 134/2014 |
| FUEL ECONOMY | 6.5 l/100 km |
| PRIMARY DRIVE | Chain, 34/46 ratio |
| GEAR RATIOS (OVERALL) 1ST | 10.534 |
| GEAR RATIOS (OVERALL) 2ND | 7.302 |
| GEAR RATIOS (OVERALL) 3RD | 5.423 |
| GEAR RATIOS (OVERALL) 4TH | 4.392 |
| GEAR RATIOS (OVERALL) 5TH | 3.741 |
| GEAR RATIOS (OVERALL) 6TH | 3.157 |
| FRONT FORK | 49 mm Dual Bending Valve |
| REAR SHOCKS | Hand-adjustable emulsion rear suspension |
| WHEELS, FRONT TYPE | Cast aluminum |
| WHEELS, REAR TYPE | Cast aluminum |
| BRAKES, CALIPER TYPE | Front: 32 mm 4 piston fixed, Rear: floating 36mm piston integrated park brake |
| BRAKES, ROTOR TYPE | Dual floating rotors (front), fixed rotor (rear) |
| LIGHTS (AS PER COUNTRY REGULATION), HEADLAMP, TAIL/STOP/FRONT SIGNAL LIGHTS | Dual halogen headlight 55-watt 625 lumen low beam, 65-watt 1,570 lumen high beam; LED tail/stop, front signal lights and rear turn signals |
| GAUGES | Speedometer, tachometer, fuel, and voltage gauges; display features odometer, trip A, trip B, range to empty, gear indicator |
| ANTI-LOCK BRAKE SYSTEM (ABS) | Included |
| ELECTRONIC LINKED BRAKING (ELB) | Included |
| TRACTION CONTROL SYSTEM (TCS) | Included |
| DRAG-TORQUE SLIP CONTROL SYSTEM (DSCS) | Included |
| CORNERING ENHANCED ANTI-LOCK BRAKE SYSTEM (C-ABS) | Included |
| CORNERING ENHANCED ELECTRONIC LINKED BRAKING (C-ELB) | Included |
| CORNERING ENHANCED TRACTION CONTROL SYSTEM (C-TCS) | Included |
