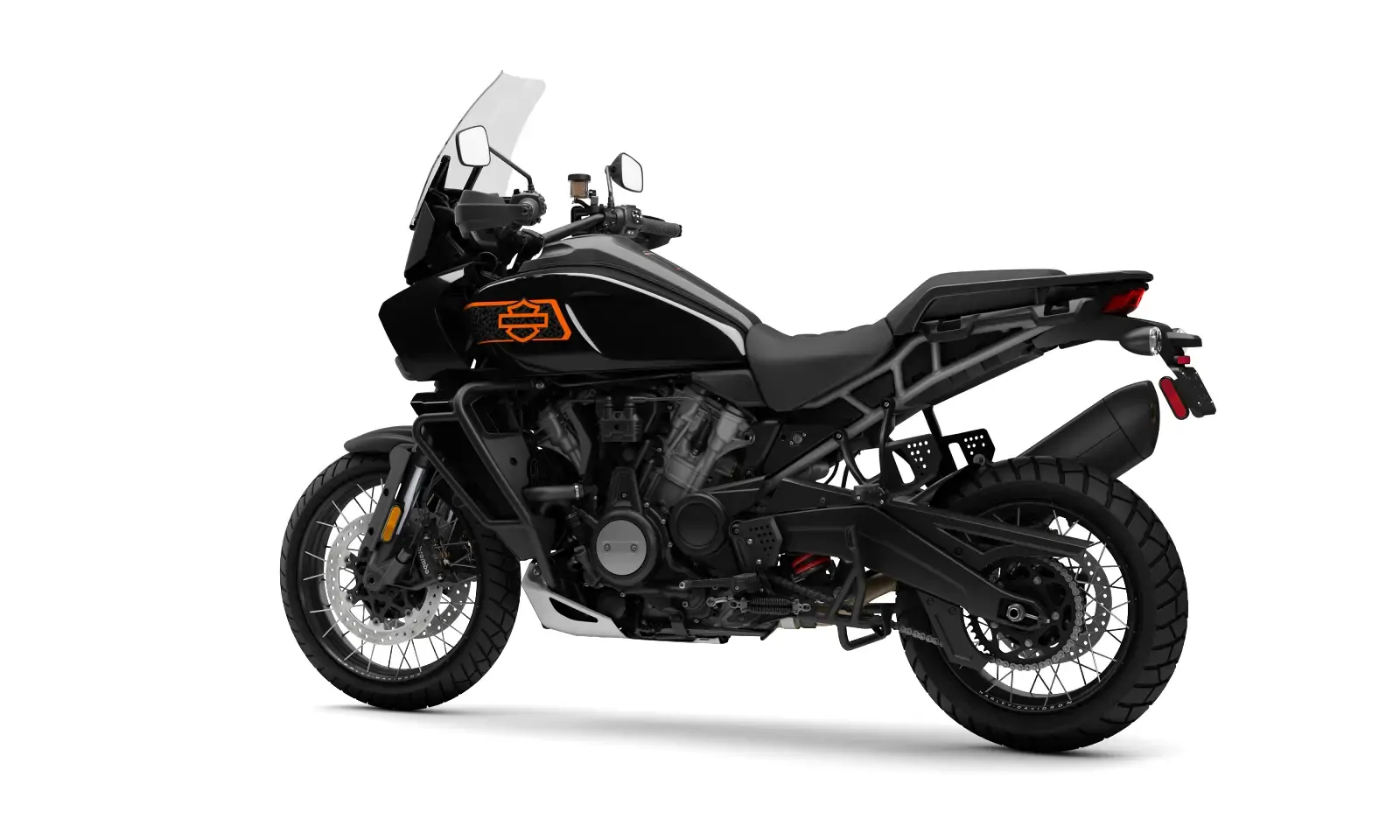

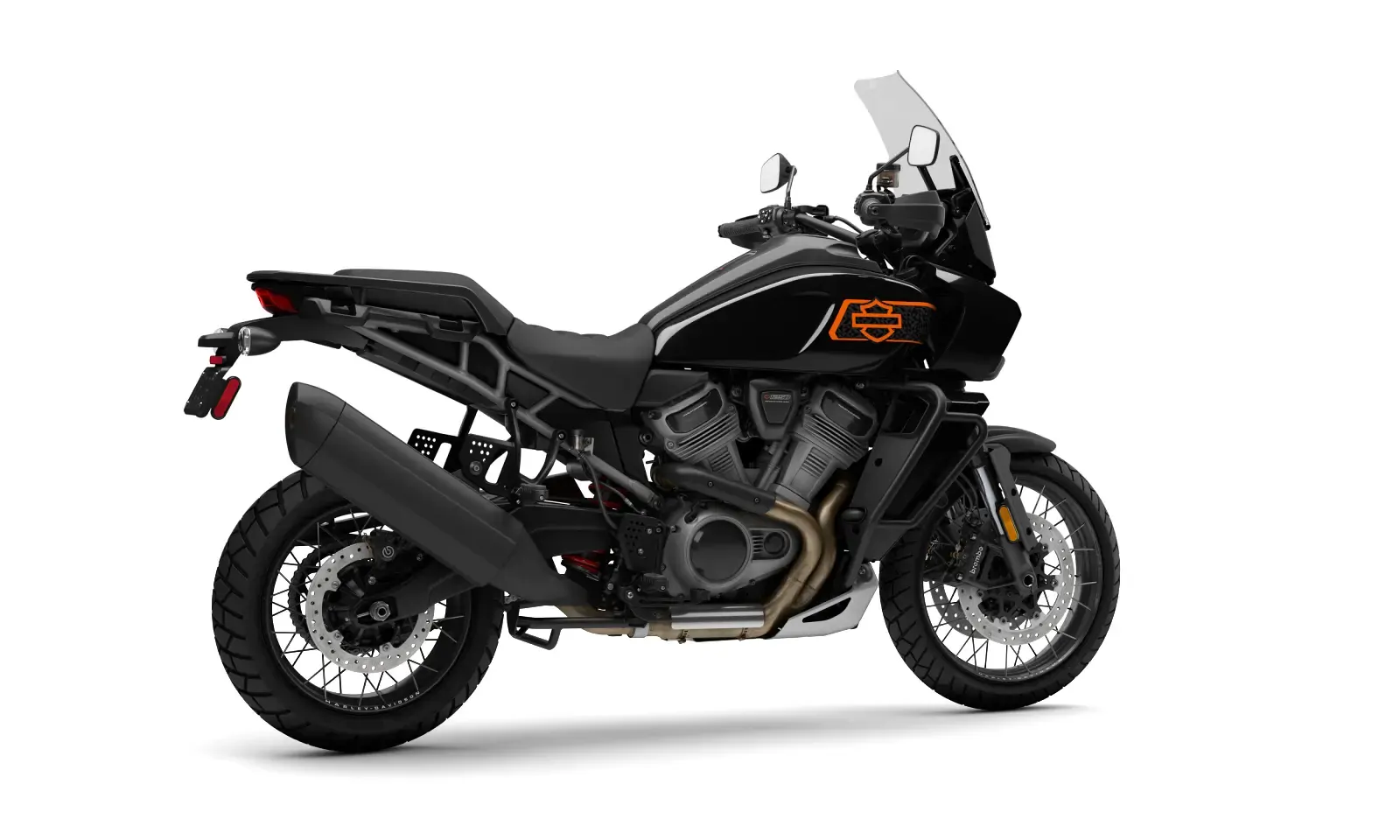

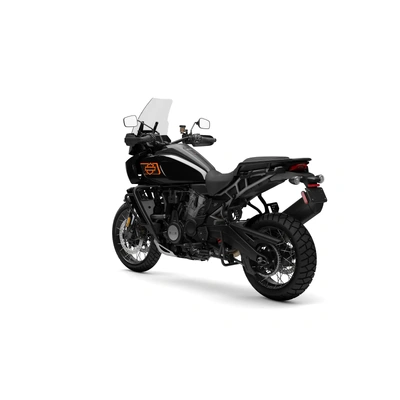

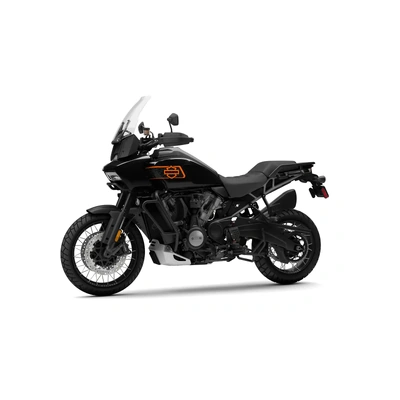

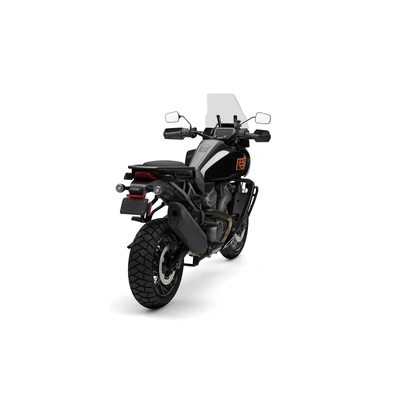

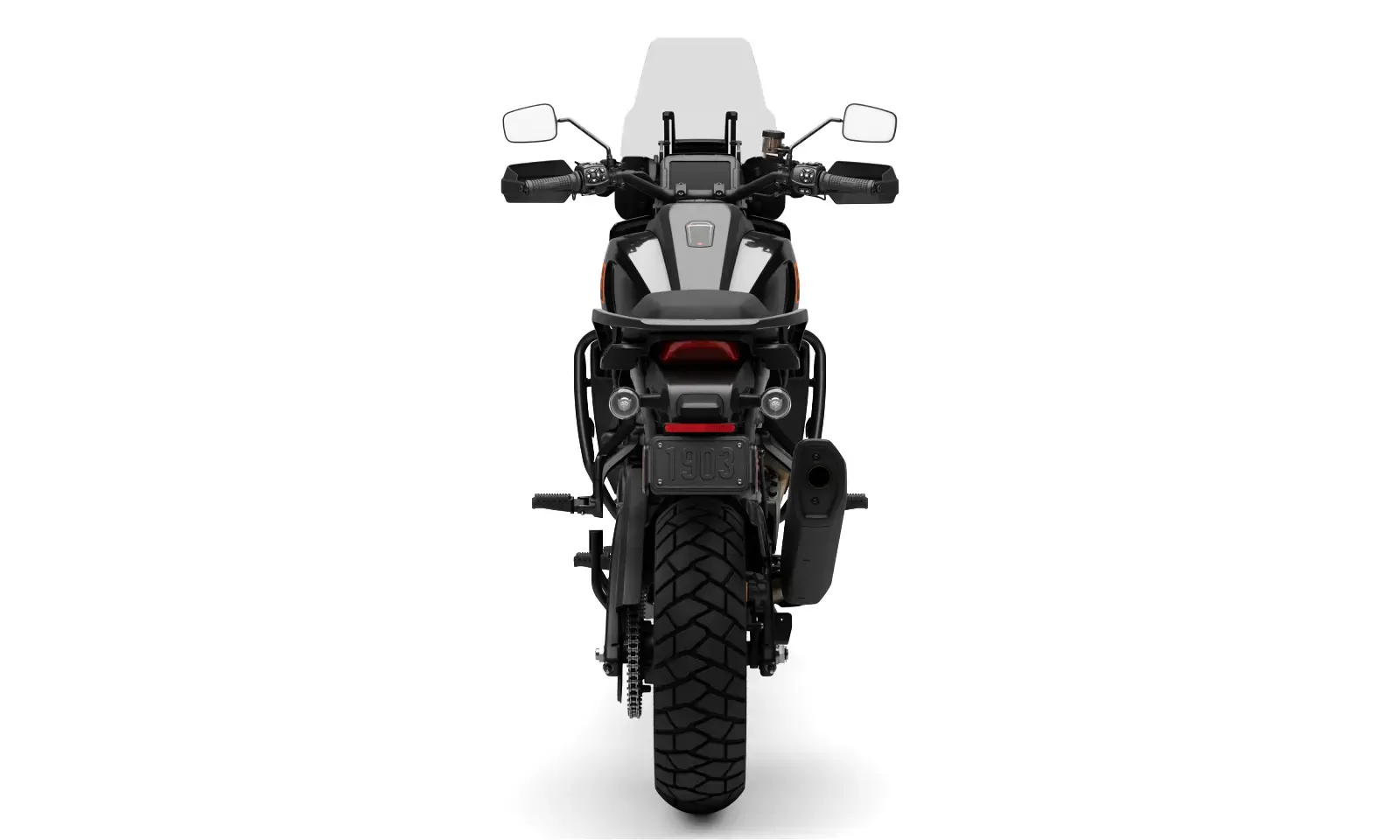

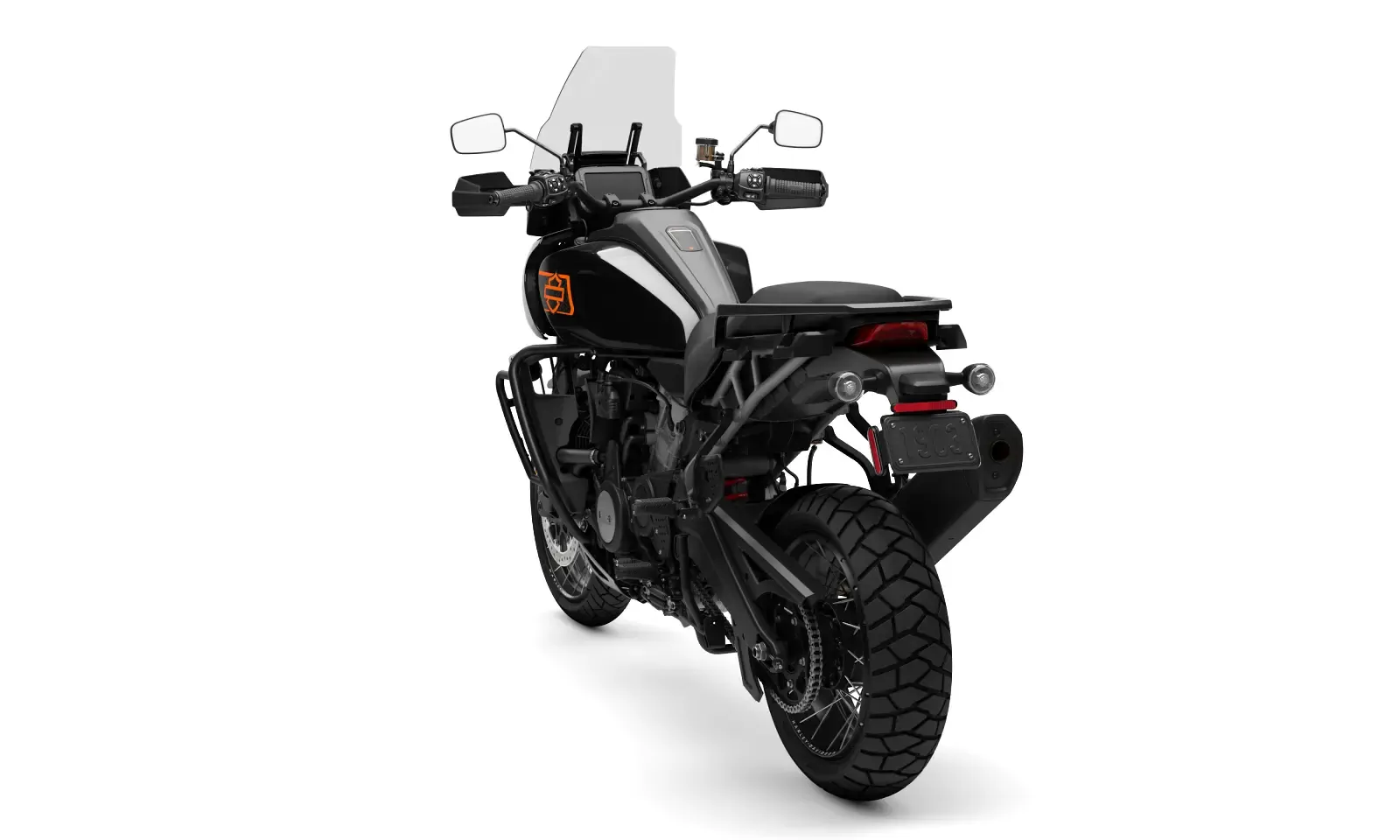

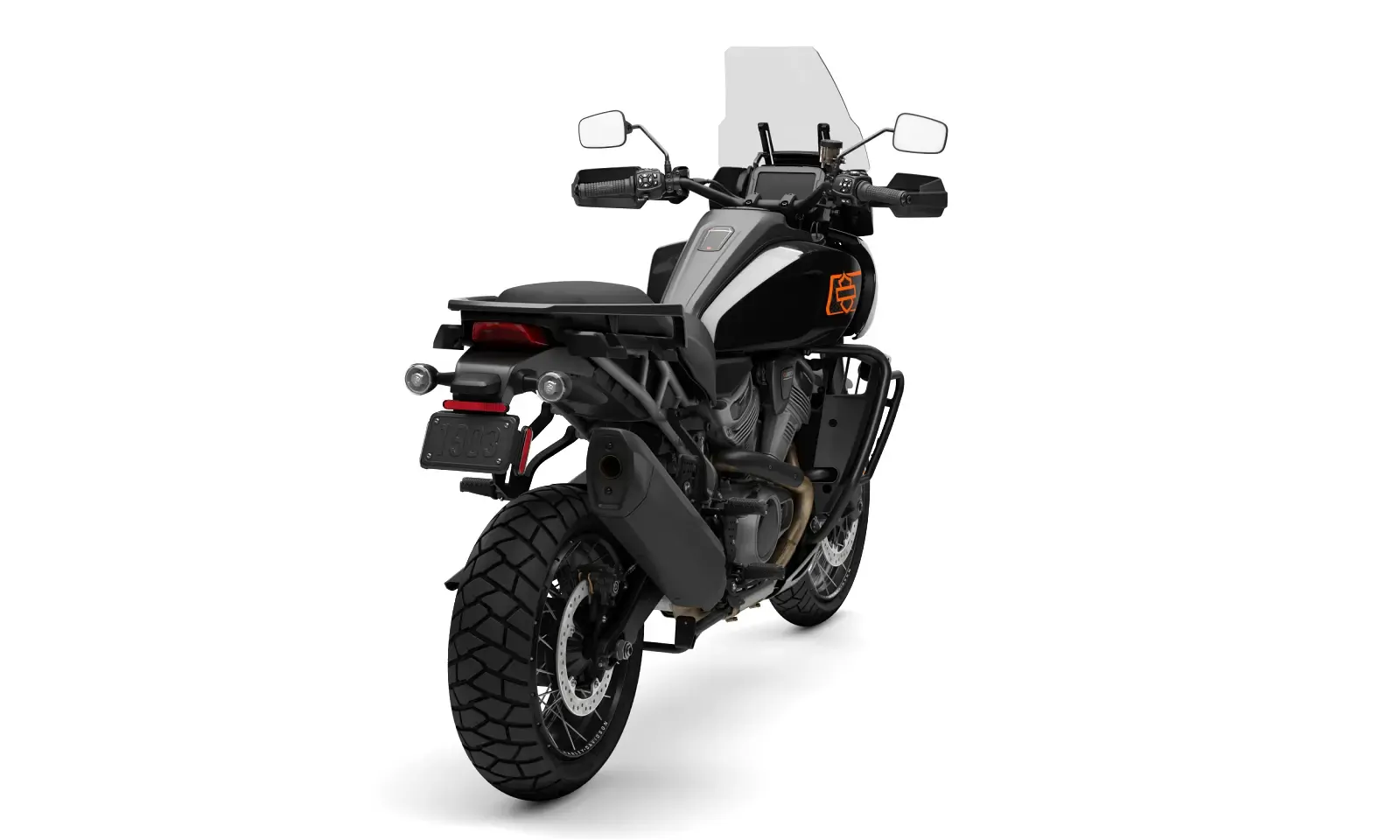

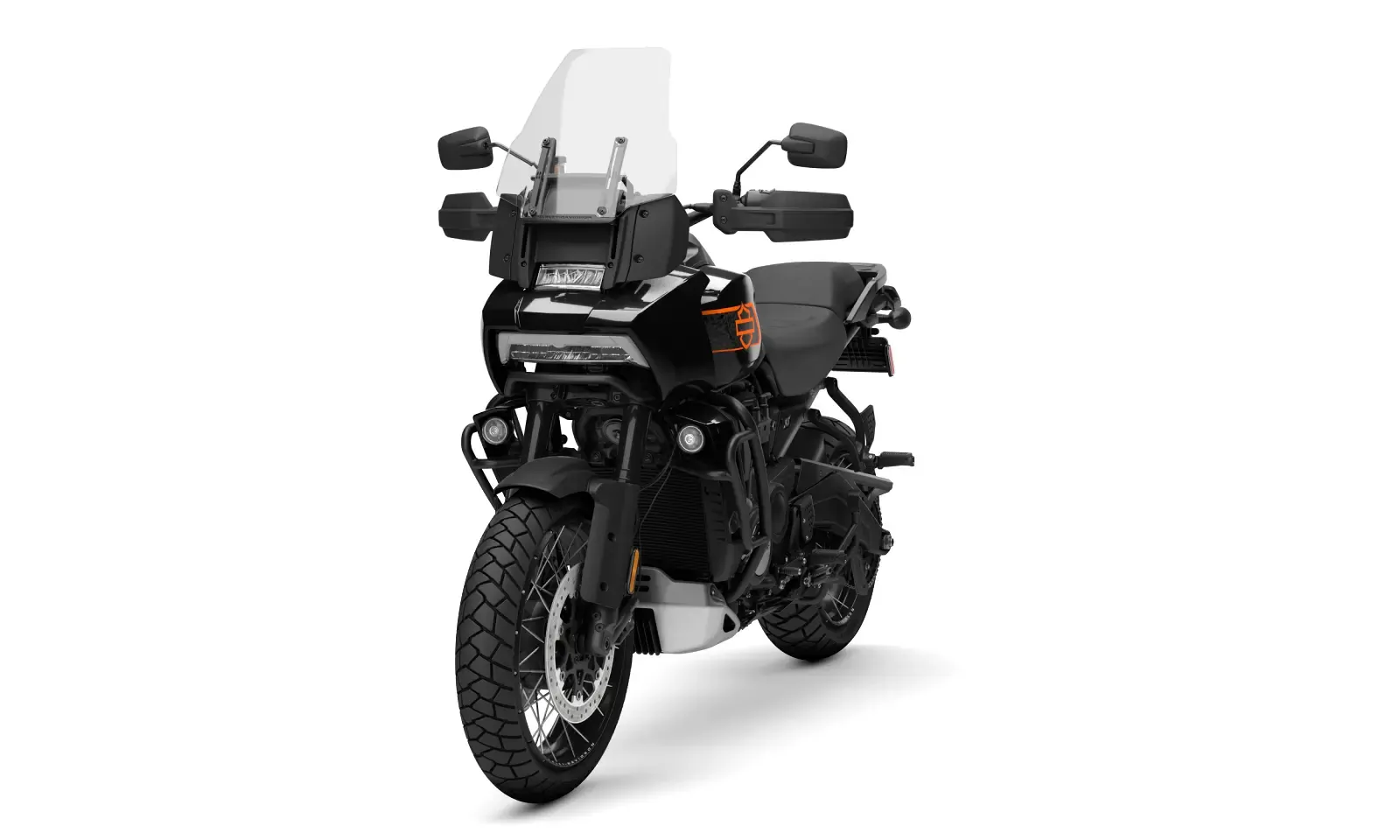

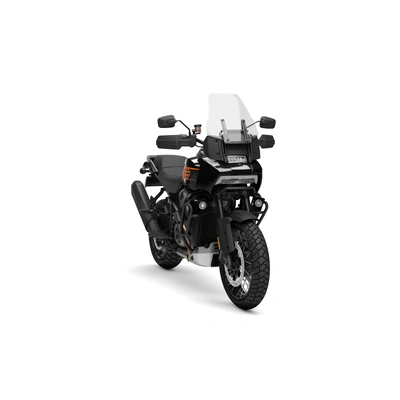

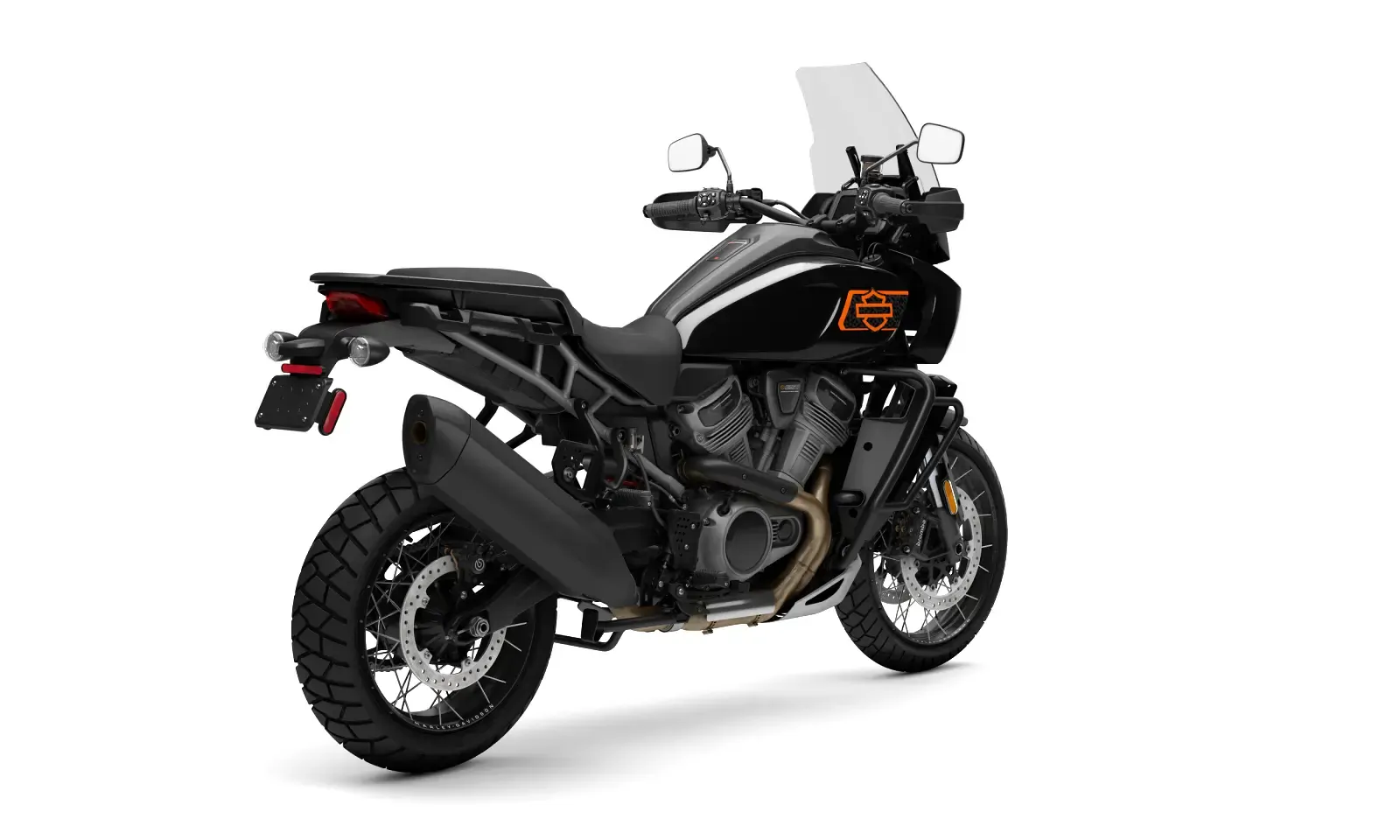

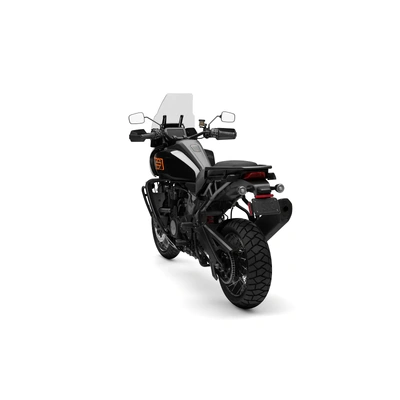

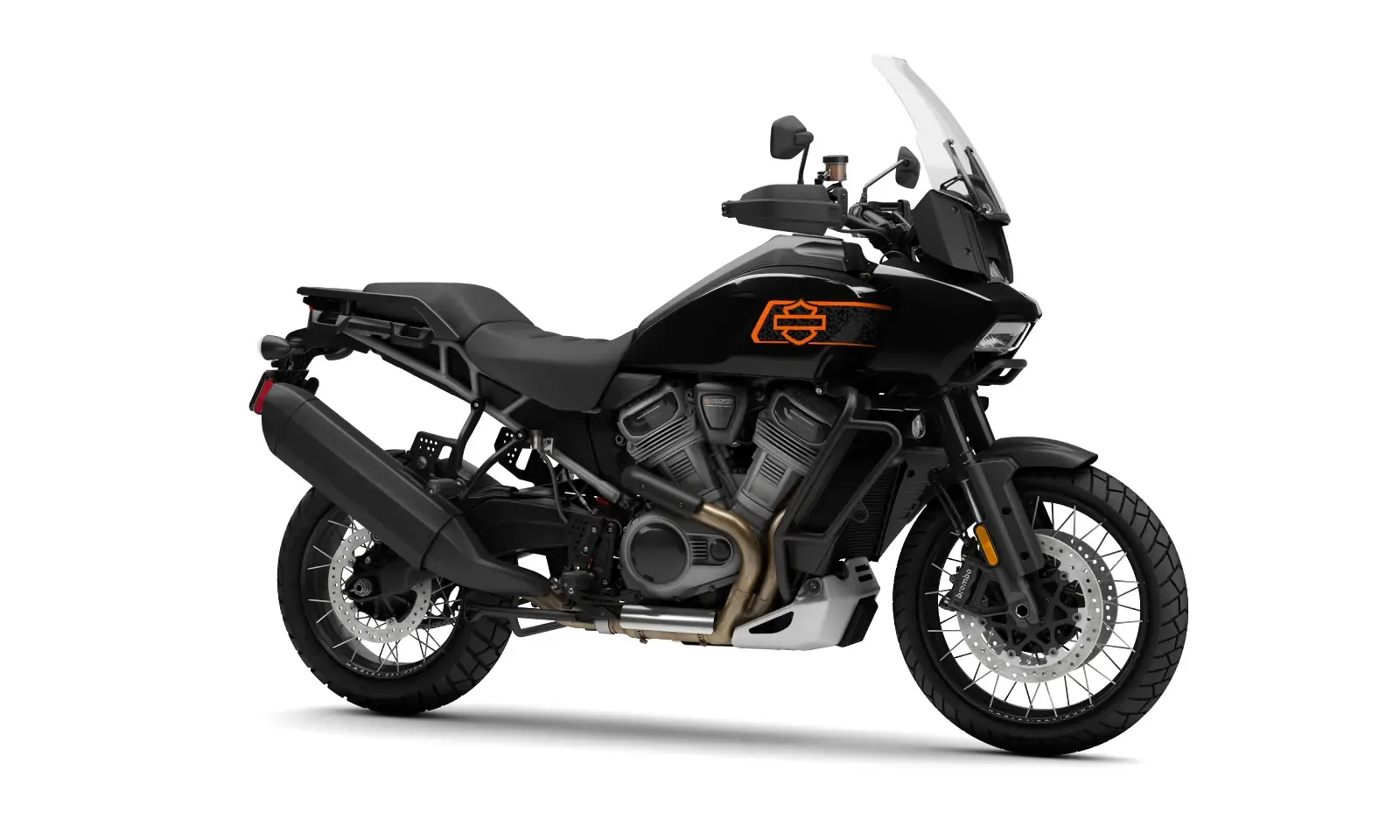

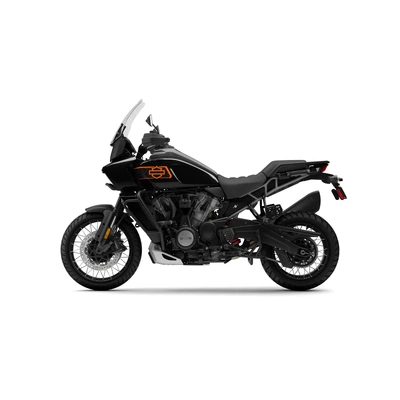

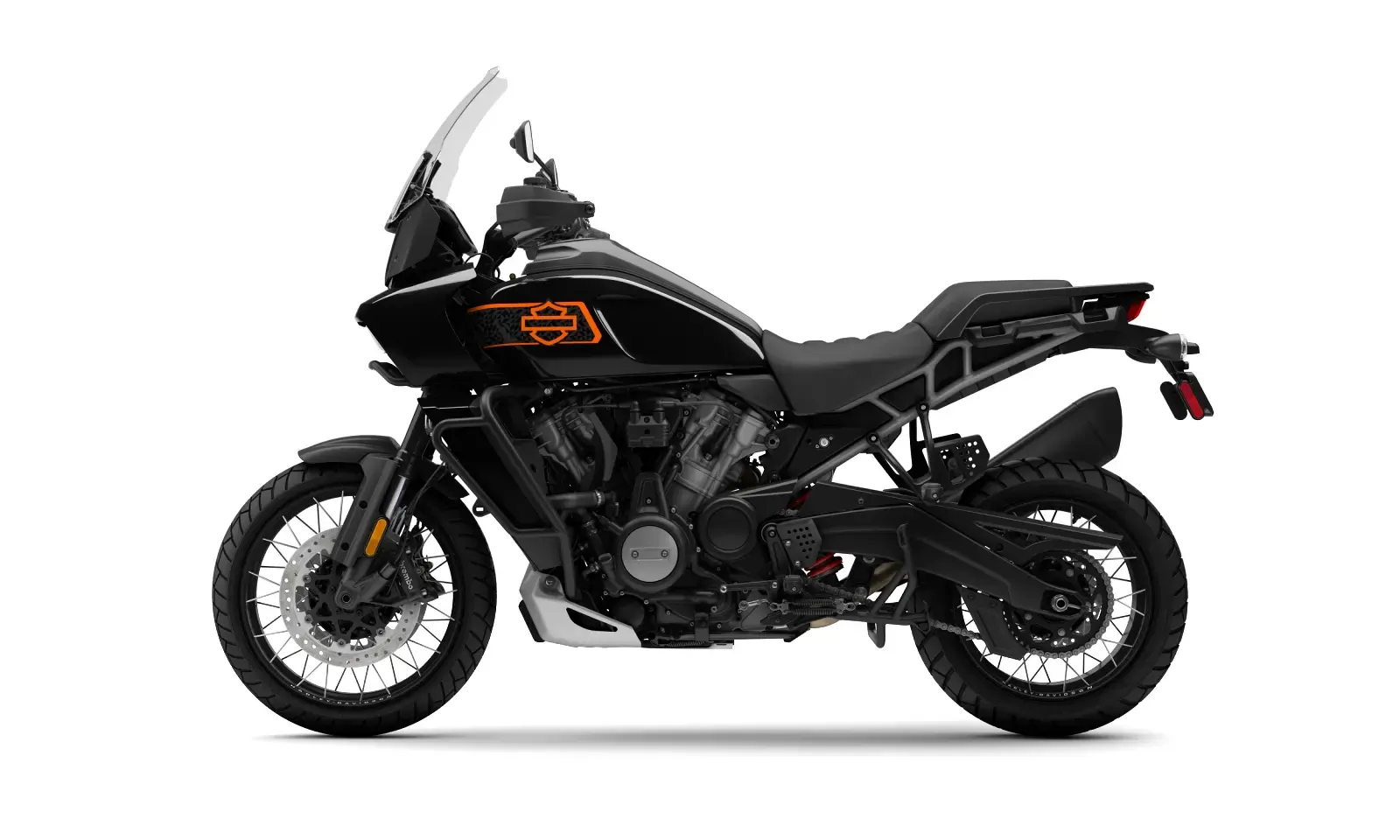

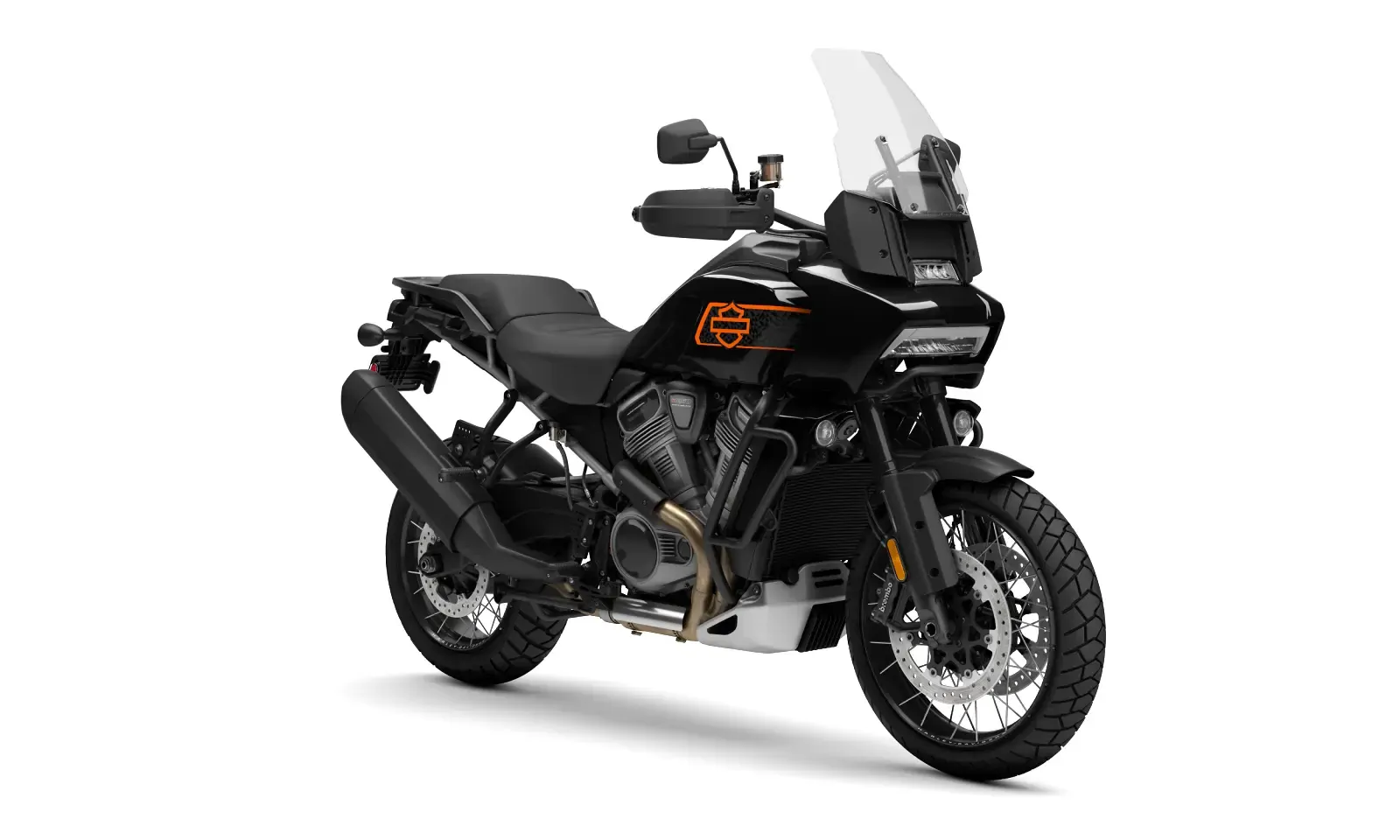

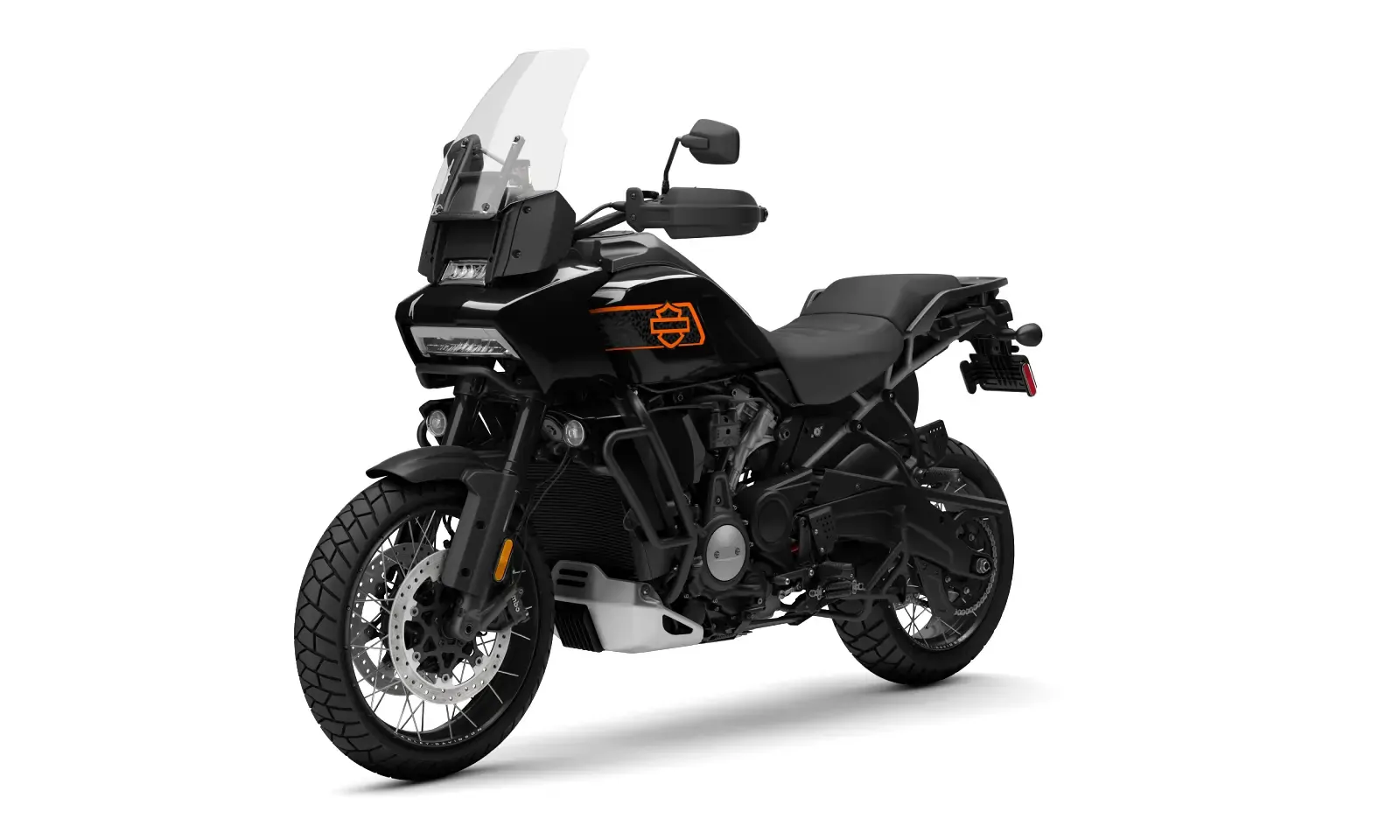

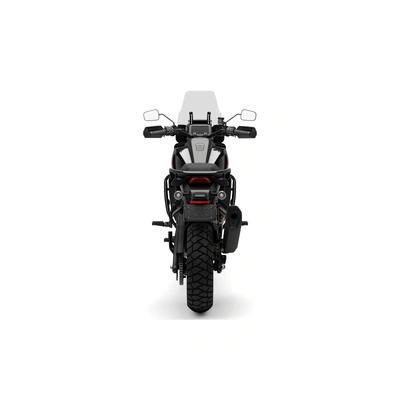

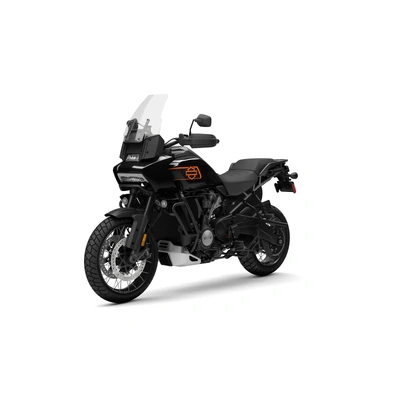

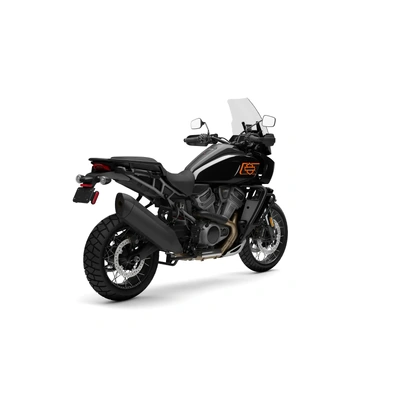

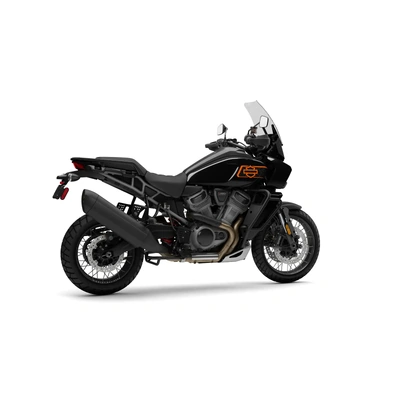

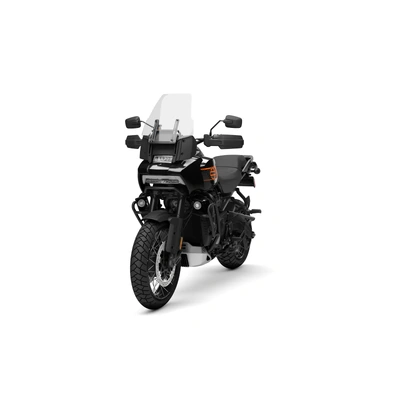

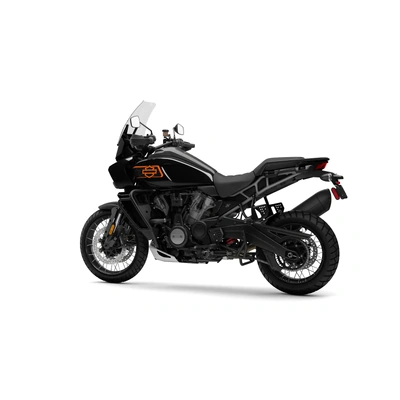

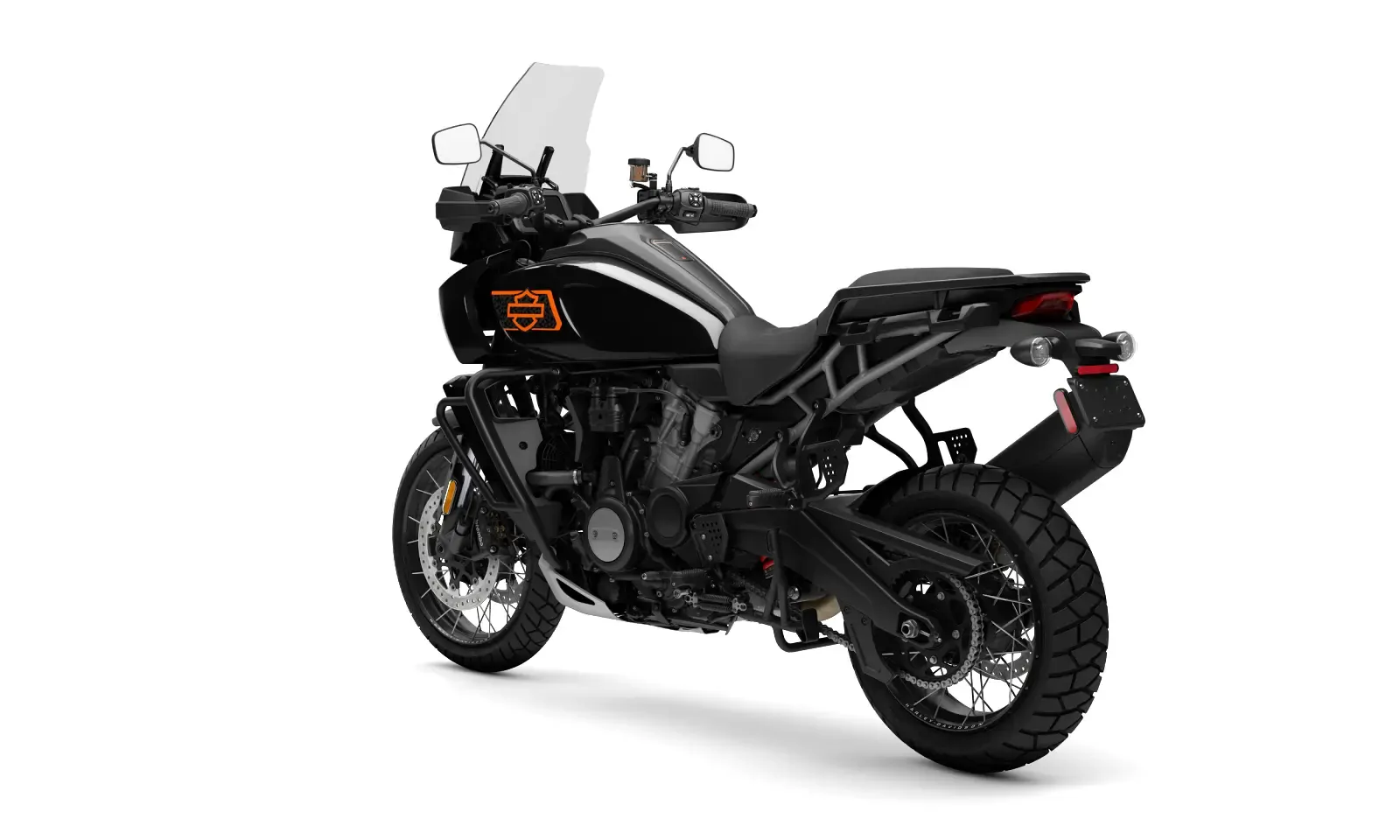

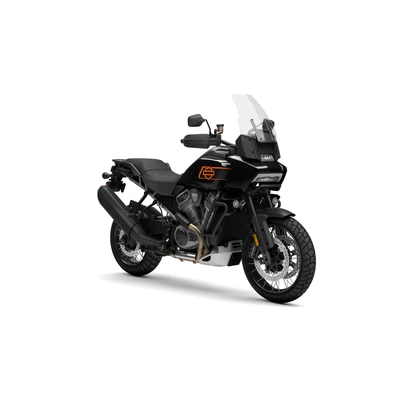

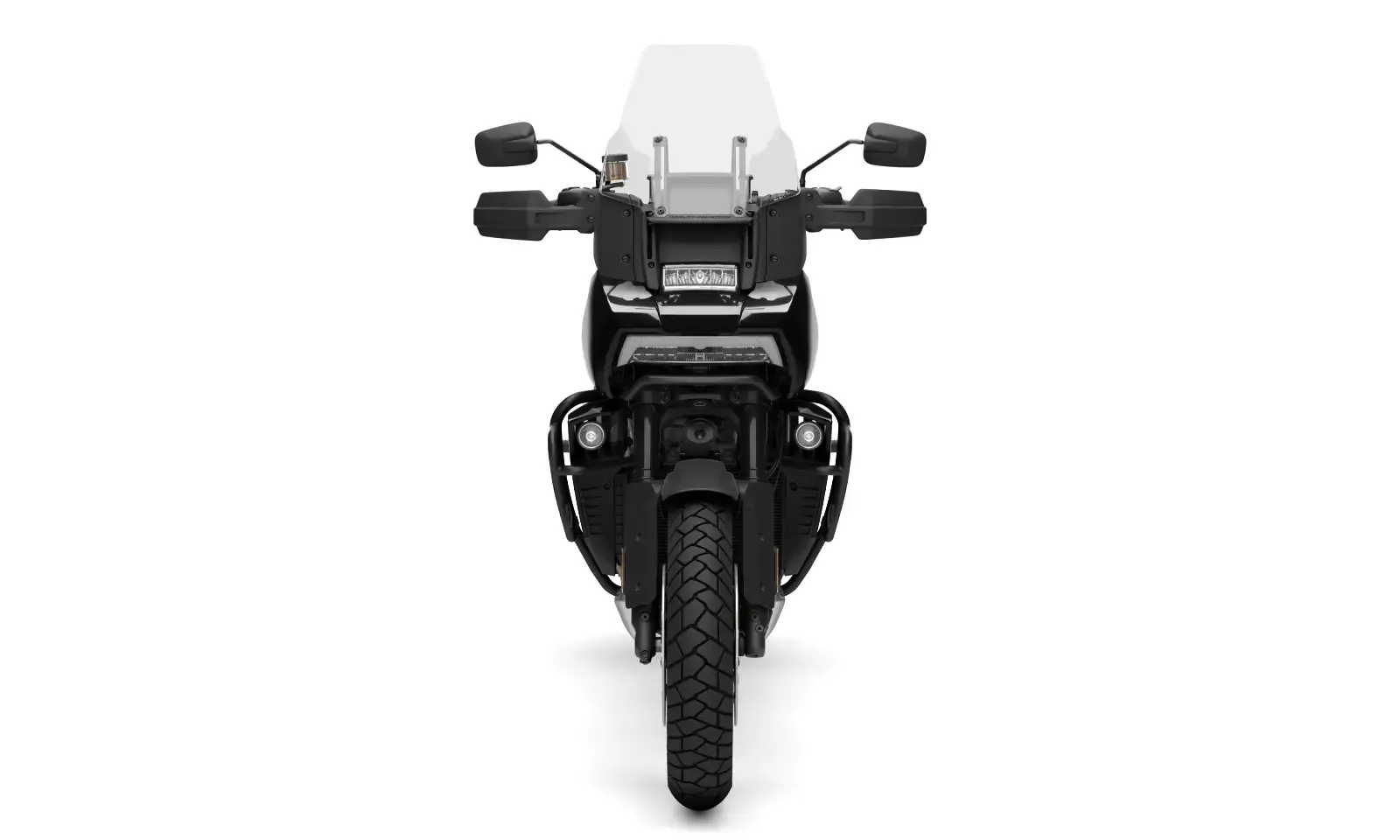

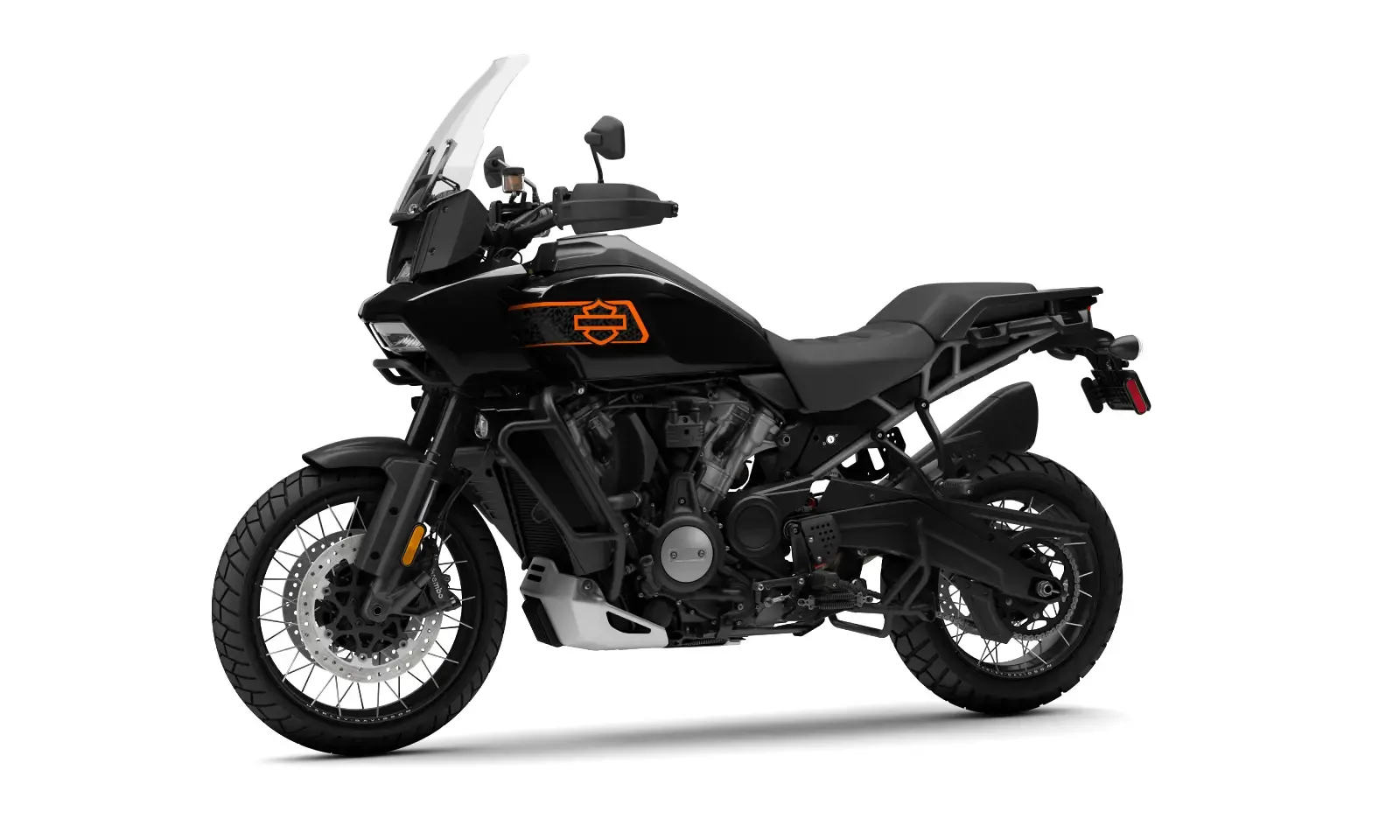

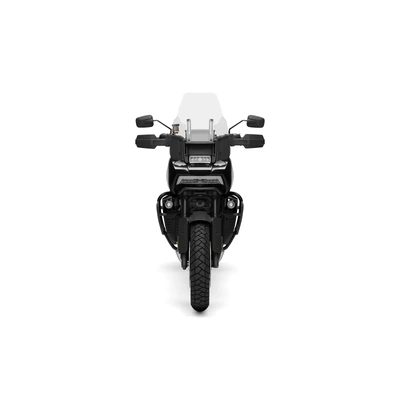

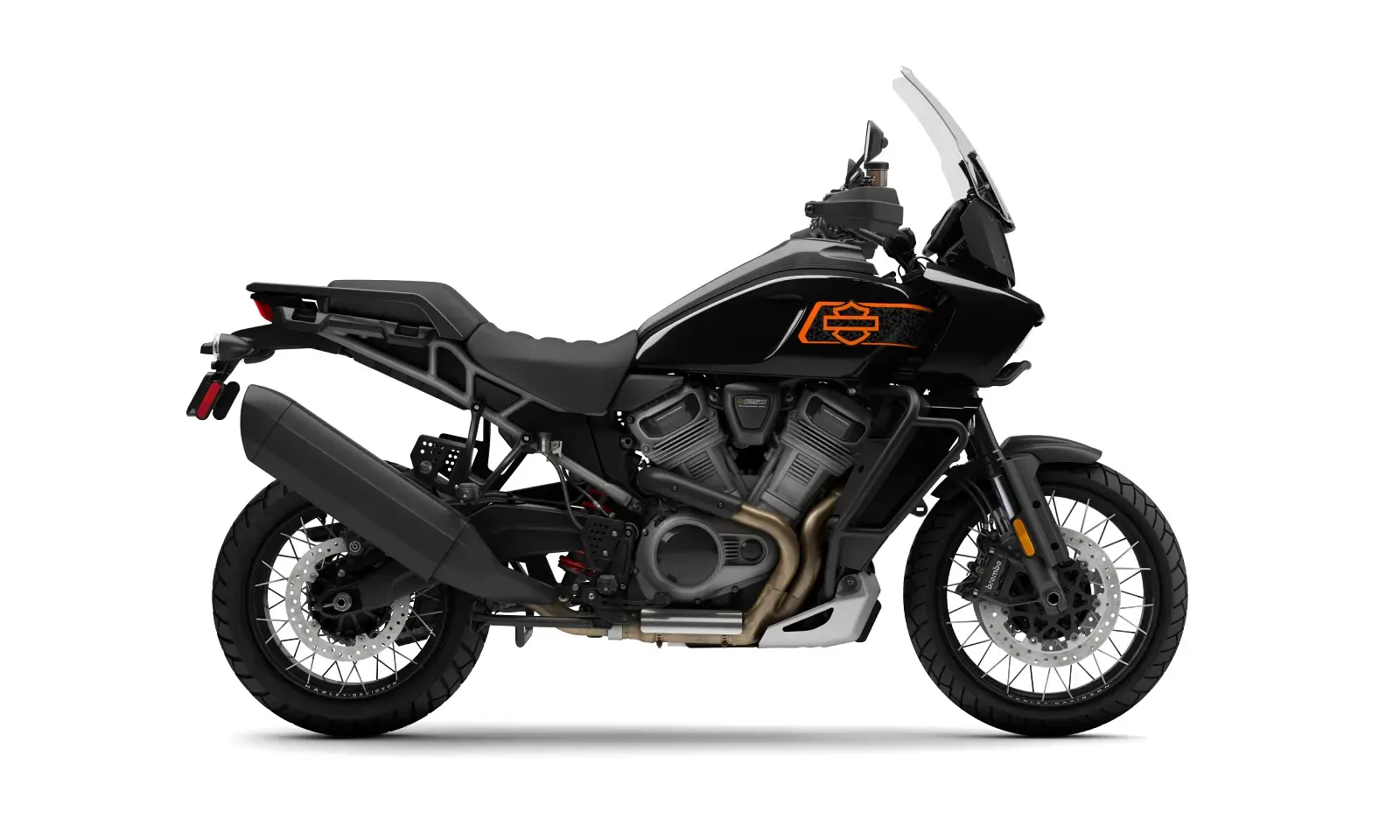

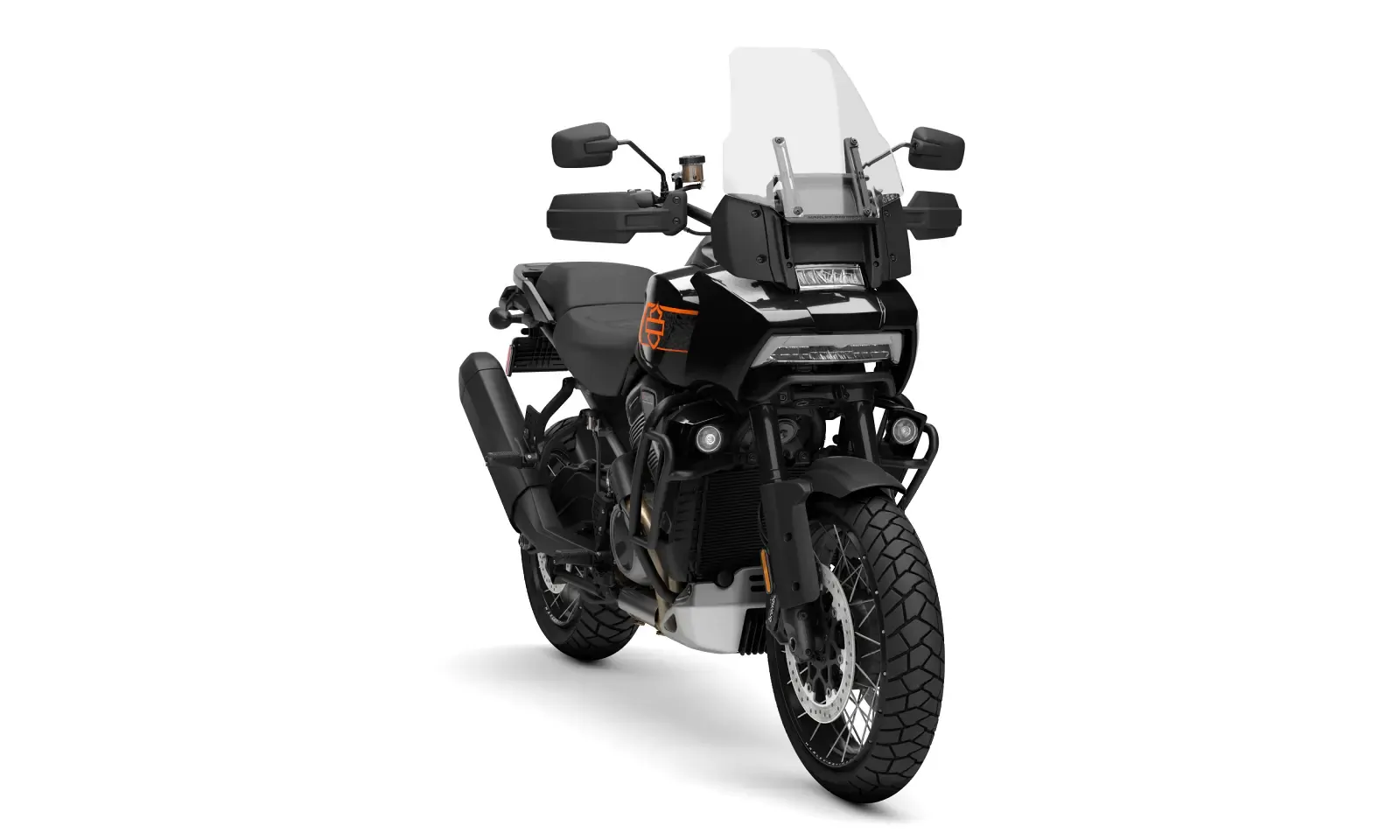

2026 Harley-Davidson Pan America 1250 Special - Vivid Black - Laced Wheels

STOCK #: RA1250S-BVBLW-26

Price On Application

Enquire Now

Year 2026 Condition New Colour Vivid Black Engine 1252cc Body Type Touring Stock # RA1250S-BVBLW-26

Available Options
Bike ID	Stock ID: RA1250S-BVBLW-26

Design

Adjustable Seat Height with Adaptive Confidence

Switch between 850 mm and 875 mm seat heights to fine-tune your riding position, then let available Adaptive Ride Height automatically lower the bike at stops for surer footing. The result: a fit that keeps you comfortable and in control from kickstand up to kickstand down.

Two-Tone Graphic with Inset Bar & Shield

A fresh fuel tank design features a two-tone stripe and inset H-D® Bar & Shield logo, with color-matched fairings across all paint options for a refined, adventure-ready look thats unmistakably Harley-Davidson®.

Adaptive Forward Lighting

LED headlights that adjust with your lean illuminate more of the road ahead, so the twists dont catch you by surprise

Wheels + Tires Ready for Any Surface

Michelin Scorcher Adventure radials deliver confident grip from city pavement to backcountry curves, while optional tubeless laced wheels open the door to even bigger miles and rougher roads.

A Signature Fat Front Tire

The wide front tire gives the Sportster S its aggressive stance and plants more rubber on the road for extra grip whether youre carving through traffic or setting the tone on the highway.

Performance

Revolution Max 1250 Motor Built to Go Beyond

The Revolution Max 1250 delivers 150 HP through a broad, flexible powerband for confident passing, low-speed control, and everything in between.

Premium Brembo Braking with TPMS

Brembo front calipers and Tire Pressure Monitoring System come standard, so youve got the stopping power and the real-time data to match your riding conditions.

Semi-Active Suspension That Adapts to the Ride

Semi-active suspension automatically fine-tunes itself as you ride, keeping the bike planted and composed whether the day takes you over smooth sweepers or down rough backroads.

Single Radial-Mount Brembo Front Brake

The radial-mount Brembo up front delivers the kind of precise, predictable stopping power you want when youre pushing harder, braking later, and aiming for the next corner. Its sharp-edged design looks just as aggressive as it feels.

High-Mount 2-1-2 Exhaust

Inspired by flat-track racers, the high-mount 2-1-2 exhaust tucks in tight for aggressive cornering, and fires off a deep, commanding note built for the paddock, not the parkway.

Innovation

172 mm Full-Color TFT Touchscreen

Navigation, bike data, and Bluetooth connectivity are just a tap away on the glove-friendly touchscreen, making it easy to stay informed without breaking your rhythm.

Performance-Tuned Ride Modes

Five factory-set ride modes and four custom slots let you tailor throttle response, braking, and traction control for whatever the day throws your way.

Advanced Charging + Battery Performance

A larger-capacity battery and improved charging system deliver faster charging at idle, reliable cold starts, and the power to run your accessories even if Mother Nature doesnt have an outlet for you.

Standard Rider Safety Enhancements

Lean-sensitive braking and traction control work with you in the twisties, the sweepers, and the surprises, giving you added confidence when the road gets interesting.

DIMENSIONS

Length

2,270 mm

Width

975 mm

Seat Height, Unladen

Low/High Seat Position; 850 mm/875 mm

Ground Clearance

175 mm

Rake

Trail

108 mm

Wheelbase

1,585 mm

Tire, Type

Michelin Scorcher Adventure, Radial

Tires, Front Specification

120/70R19 60V

Tires, Rear Specification

170/60R17 72V

Fuel Capacity

21.2 l

Oil Capacity (w/filter)

4.5 l

Weight, In Running Order

263 kg

ENGINE

Engine+

Revolution Max 1250

Bore

105 mm

Stroke

72.3 mm

Displacement

1,252 cc

Compression Ratio

13.0:1

Fuel System+

Electronic Sequential Port Fuel Injection (ESPFI)

Exhaust

2-into-1-into-1; catalyst in header

PERFORMANCE

Engine Torque Testing Method

EC 134/2014

Engine Torque+

128 Nm

Engine Torque (rpm)

6750

Horsepower

150 HP / 112 kW @ 8750 rpm

Lean Angle, Right (deg.)

Lean Angle, Left (deg.)

Fuel Economy Testing Method

EU 134/2014

Fuel Economy+

5.5 l/100 km

CO2 Emissions Testing Method

EU 134/2014

CO2 Emissions

125 g/km CO2

DRIVE TRAIN

Primary Drive

Gear, 49/89 ratio

Gear Ratios (overall) 1st

13.11

Gear Ratios (overall) 2nd

9.687

Gear Ratios (overall) 3rd

7.509

Gear Ratios (overall) 4th

6.057

Gear Ratios (overall) 5th

5.08

Gear Ratios (overall) 6th

4.436

CHASSIS

Front Fork

47mm inverted fork with electronically adjustable semi-active damping control and Adaptive Ride Height (ARH). Aluminum fork triple clamps

Rear Shocks

Linkage-mounted monoshock with automatic electronic preload control and semi-active compression & rebound damping

Wheels, Optional Style Type+

Annodized aluminum tubeless laced

Wheels, Front Type+

Aluminum cast, satin black

Wheels, Rear Type+

Aluminum cast, satin black

Brakes, Caliper Type

Front: radially mounted, monoblock, 4-piston caliper; Rear: floating, single piston caliper

Brakes, Rotor Type

Front: dual rotor, floating, tower- mounted; Rear: solid uniform expansion rotor

ELECTRIC

Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals

Headlamp: Daymaker Adaptive LED Headlamp with 6-segment LED banking lamp; Tail/Stop: All LED Tail/Stop lamp with signature tail lighting; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals

Gauges

173 mm viewable area TFT display with speedometer, gear, odometer, fuel level, clock, trip, ambient temp, low temp alert, side stand down alert, TIP over alert, cruise, range and tachometer indication BT capable - phone pairing to access phone calls, music, navigation (H-D App ONLY)

Infotainment

Screen Size

173 mm

Type

Color TFT w/ Touch

Headset Specifications (if equipped)

Bluetooth

Languages

Arabic, Chinese (Simplified/Traditional), Czech, Danish, Dutch, English (default), Finnish, French (Canada/France), German, Greek, Hungarian, Indonesian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese (Brazil/Portugal), Russian, Slovak, Spanish (Mexico/Spain), Swedish, Thai, Turkish, Vietnamese

Hands-free Mobile Phone - via Bluetooth

Standard

Voice Recognition Languages: Phone functions only

Phone dependent

Voice Recognition Languages: Tuner/Media/Navigation

Phone dependent

Rider/Passenger Intercom

Headset function only

Vehicle Information Screen (Air temperature, oil pressure and EITMS)

TPMS, Engine temp, Battery Voltage, Ambient Air Temp

Text-to-Speech (TTS) Languages

Phone dependent

USB

Charging and Instrument update, USB-C, 5V, 3A

Bluetooth

Phone/Media Supported

Stock #

RA1250S-BVBLW-26
