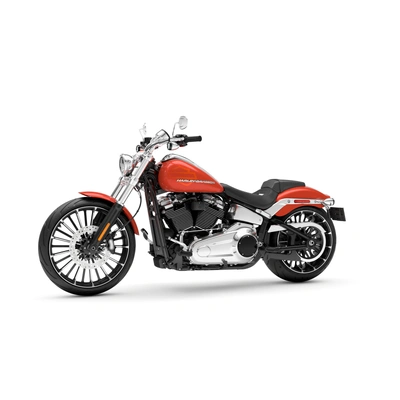

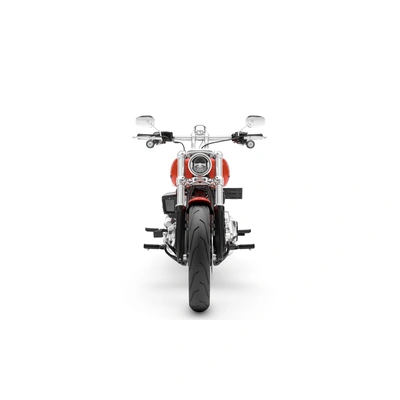

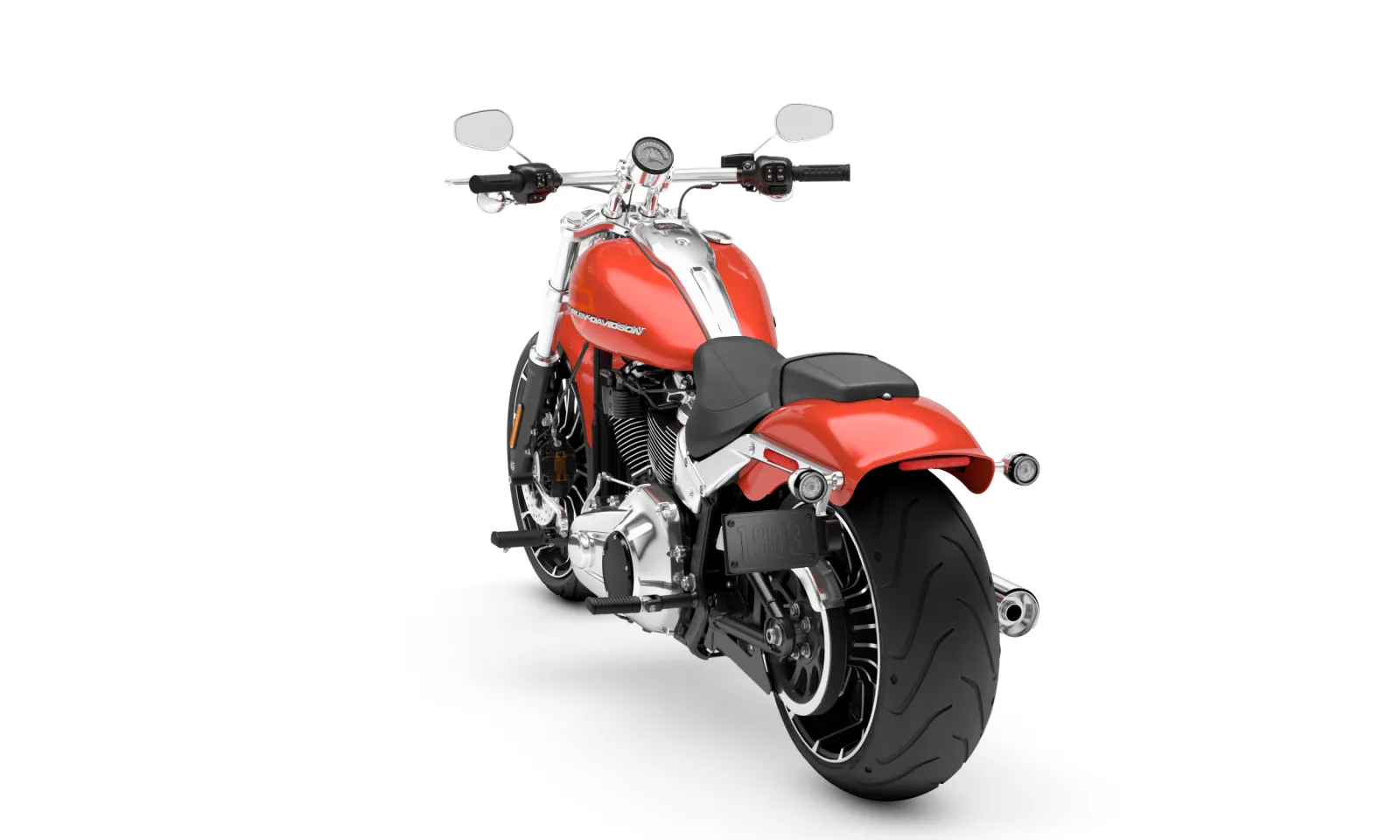

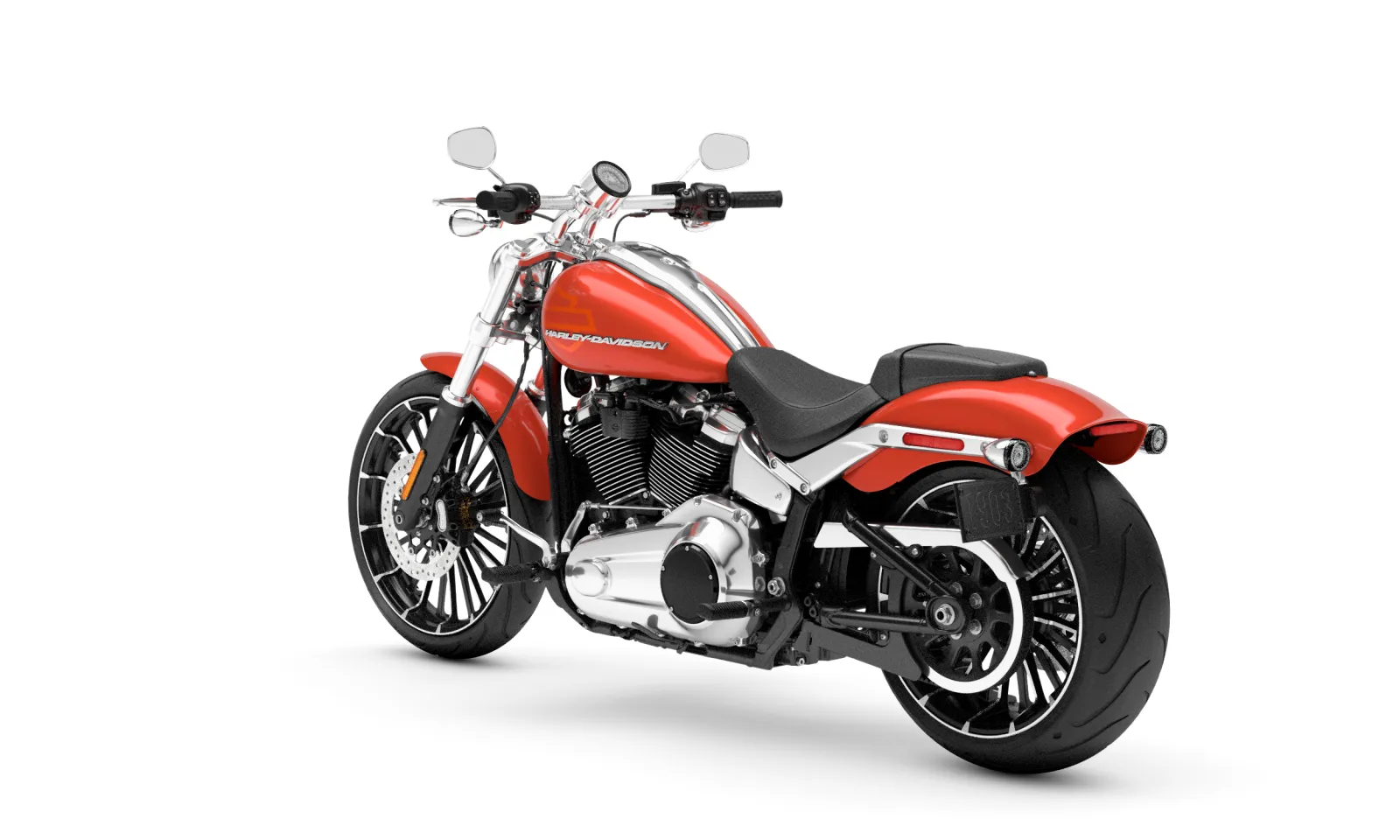

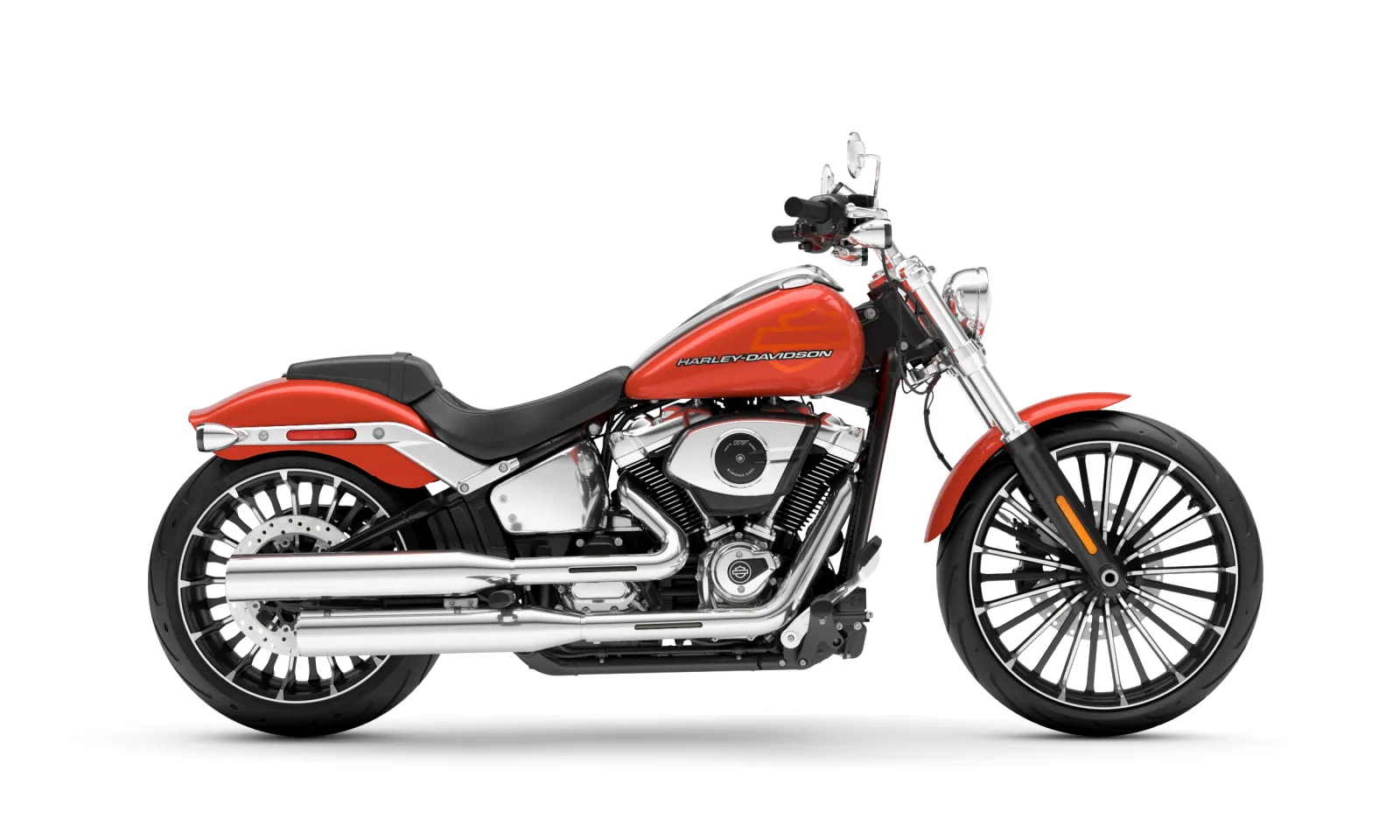

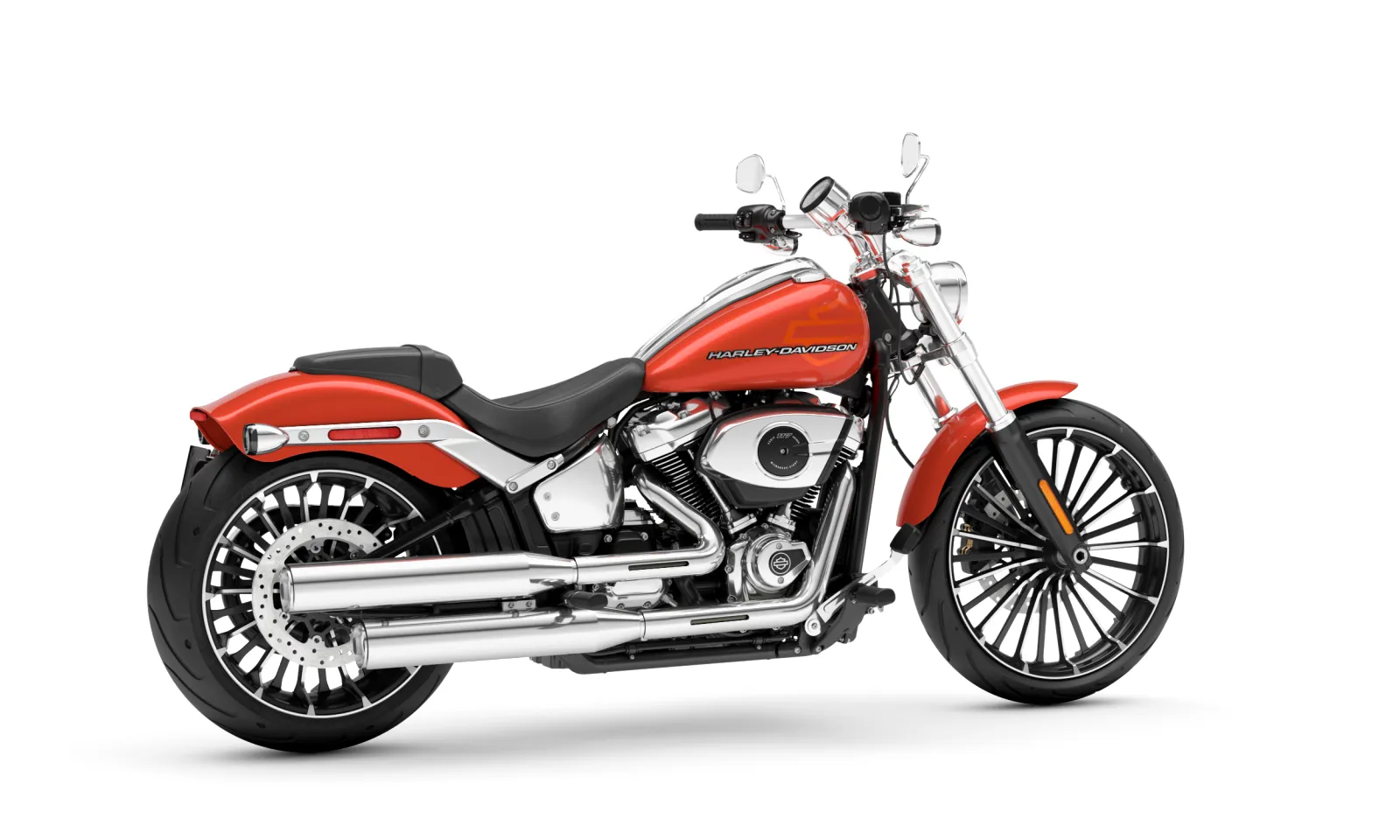

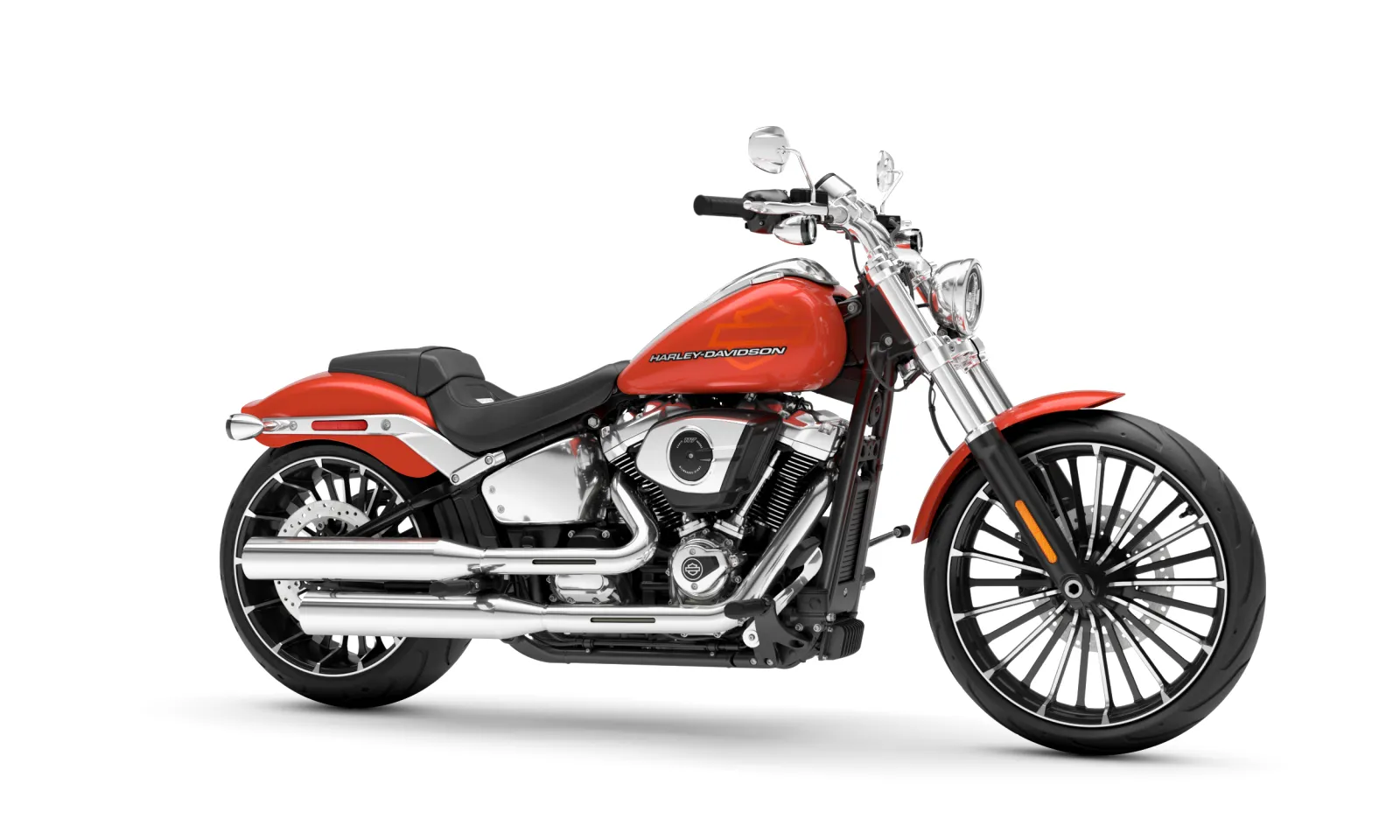

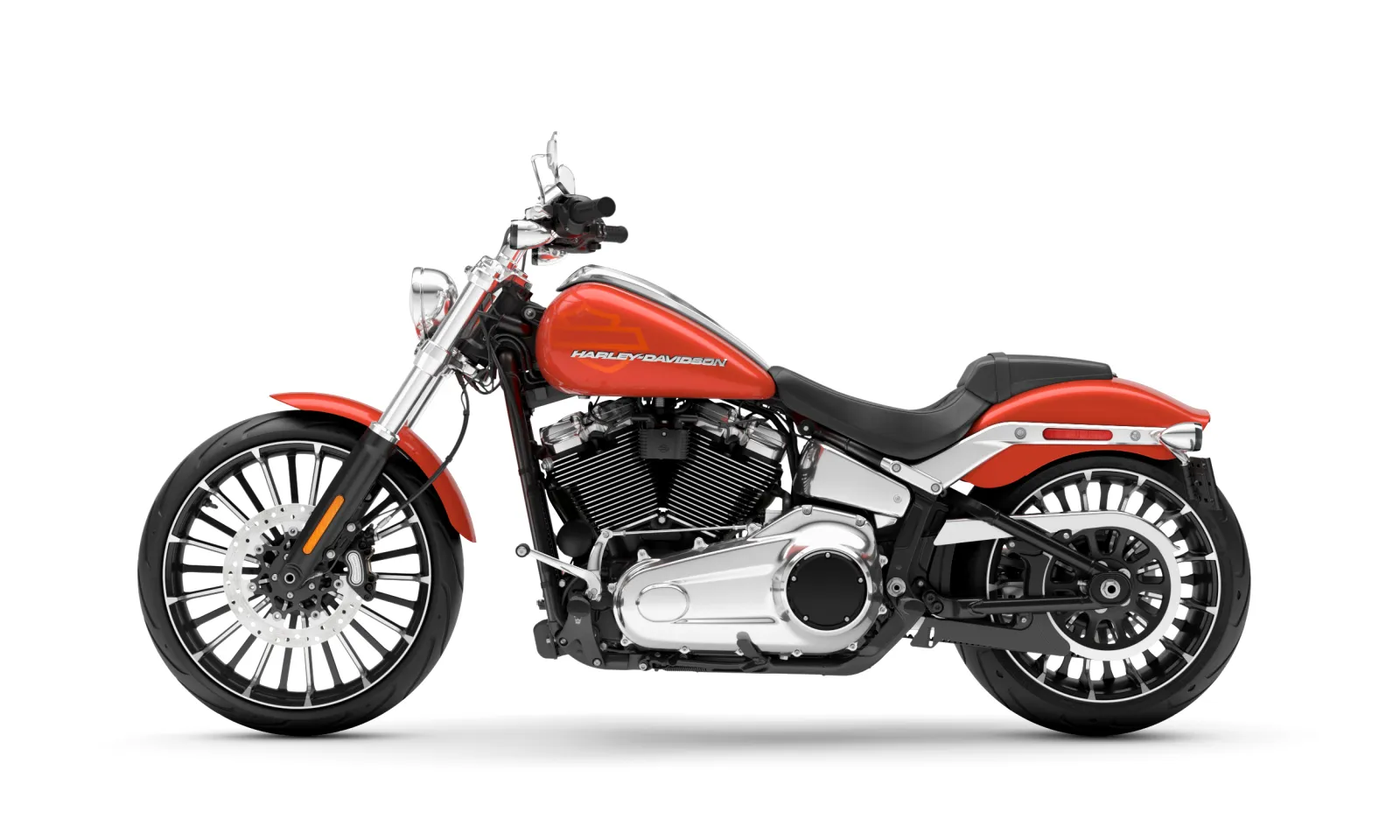

2026 Harley-Davidson Breakout - Blood Orange

STOCK #: FXBR-BOC-26
P.O.A
*Place a $250 Deposit and our team will be in contact in the next 3 business hours to secure the deal.
Key Features
Year:  2026 Primary Colour:  Orange Colour:  Blood Orange Body Type:  CRUISER
Description

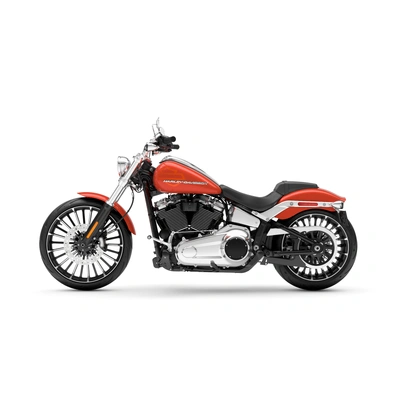

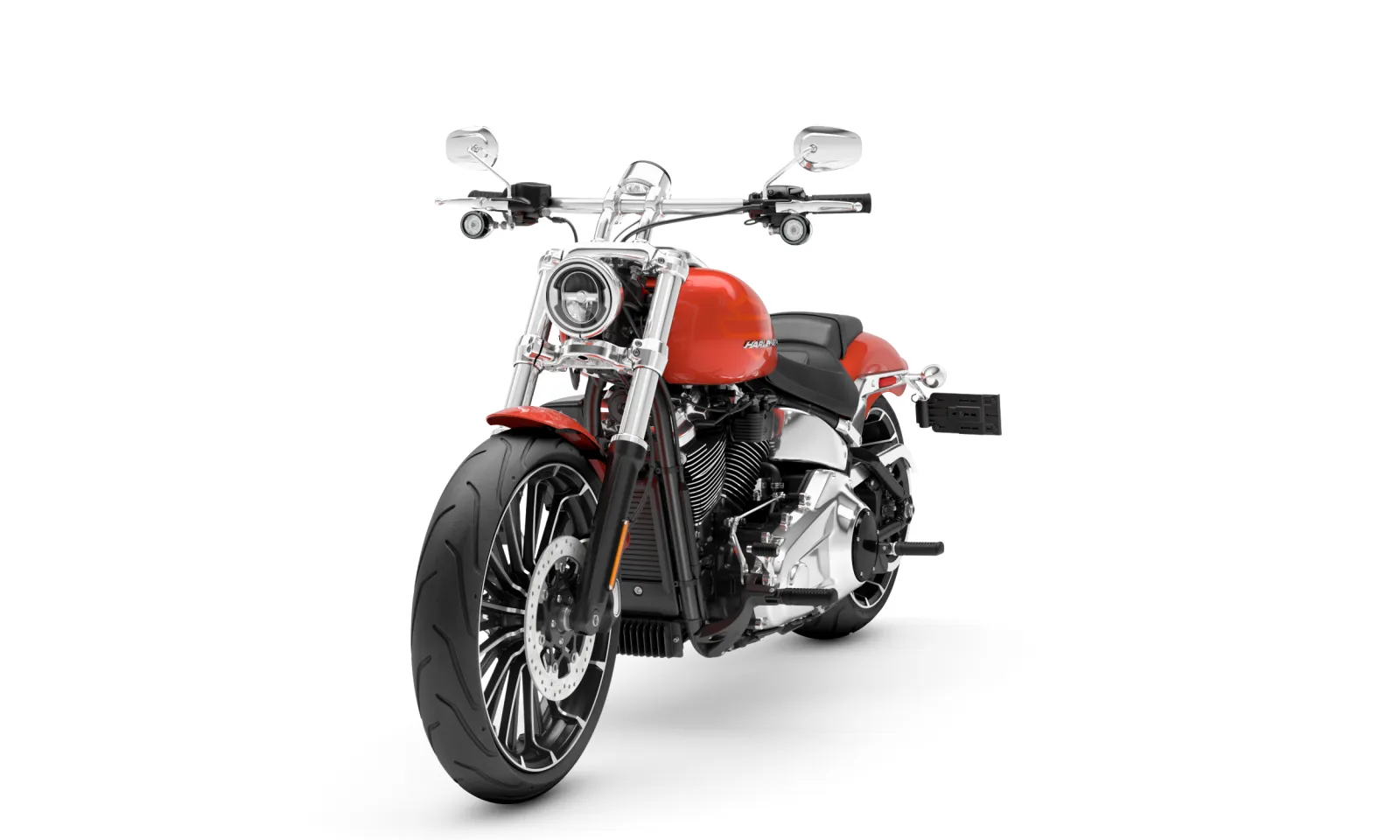

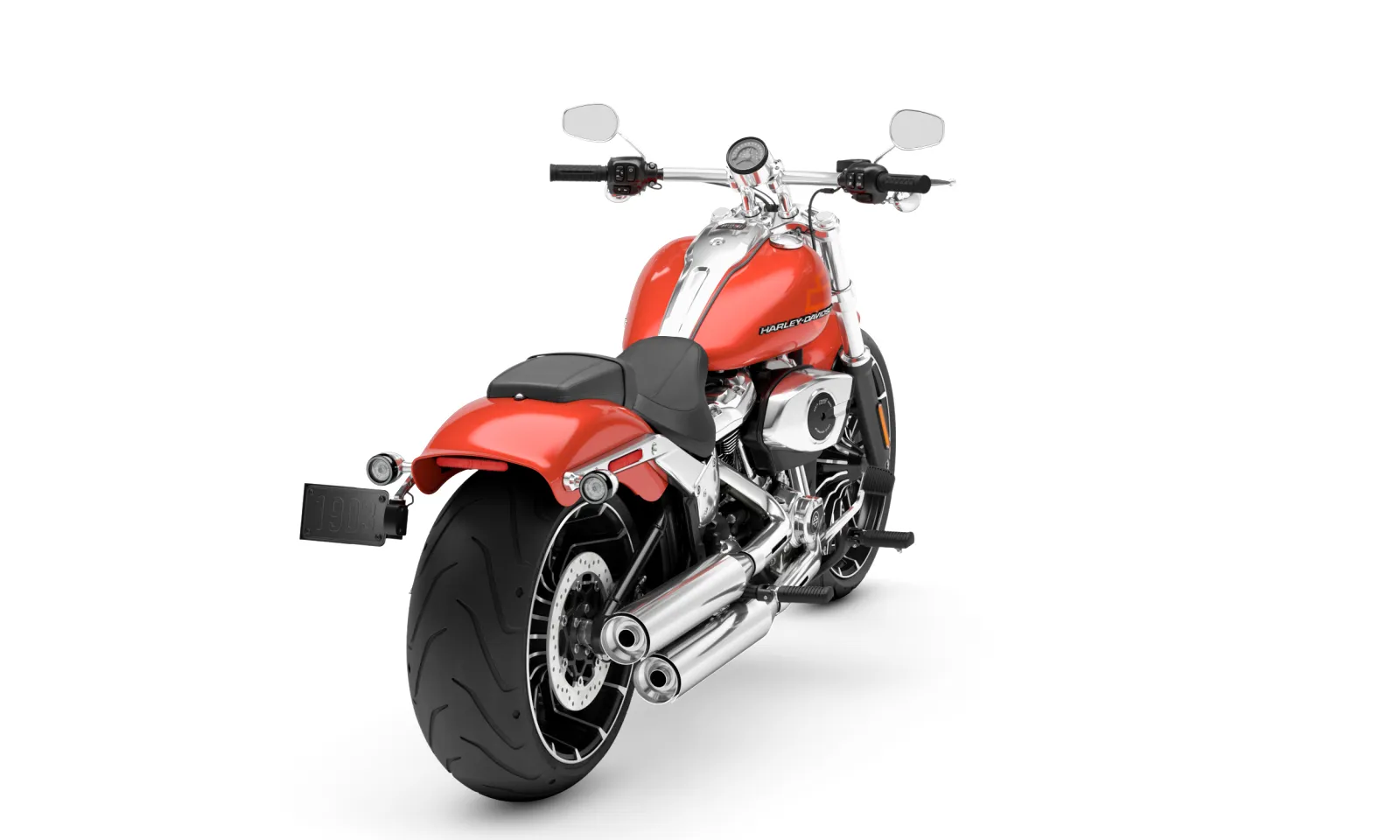

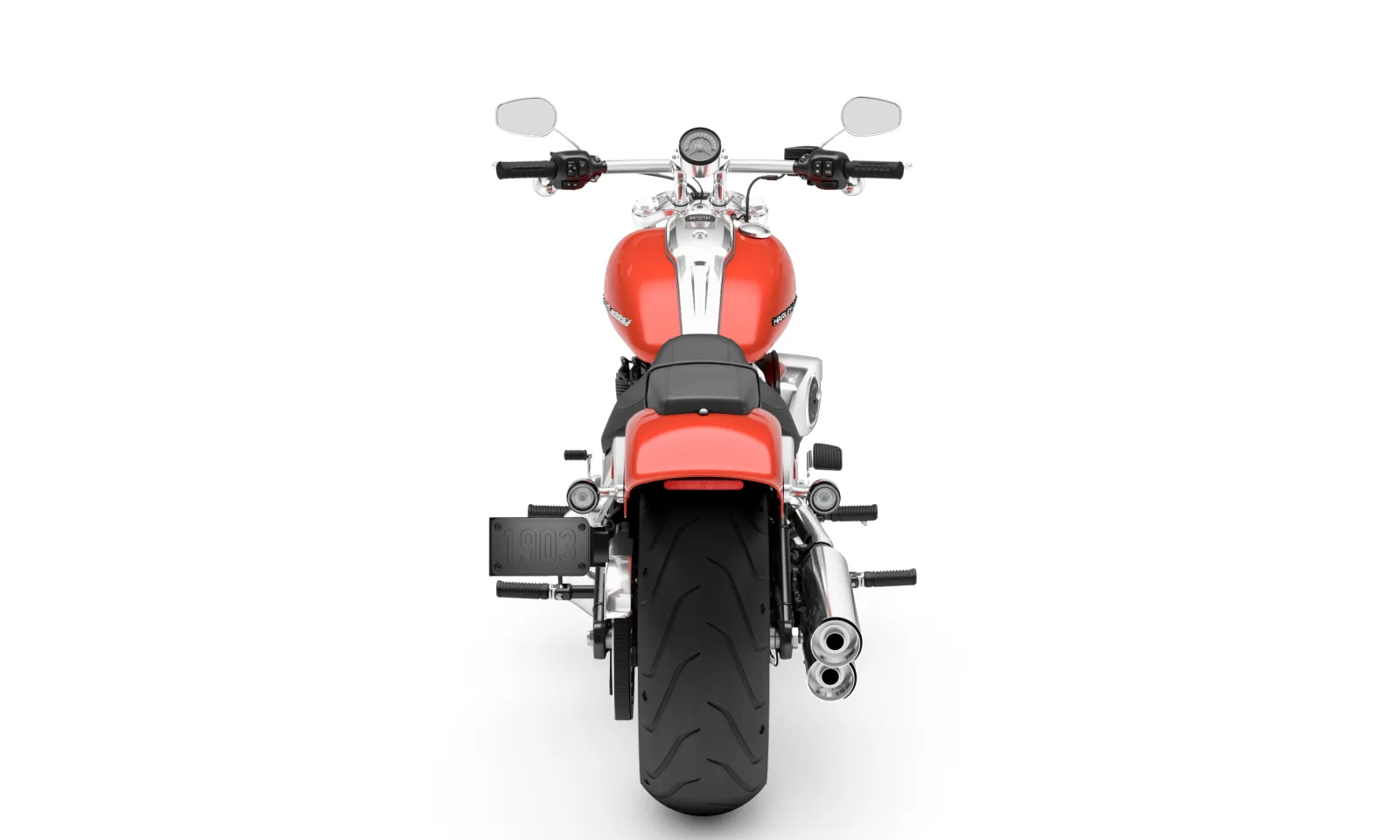

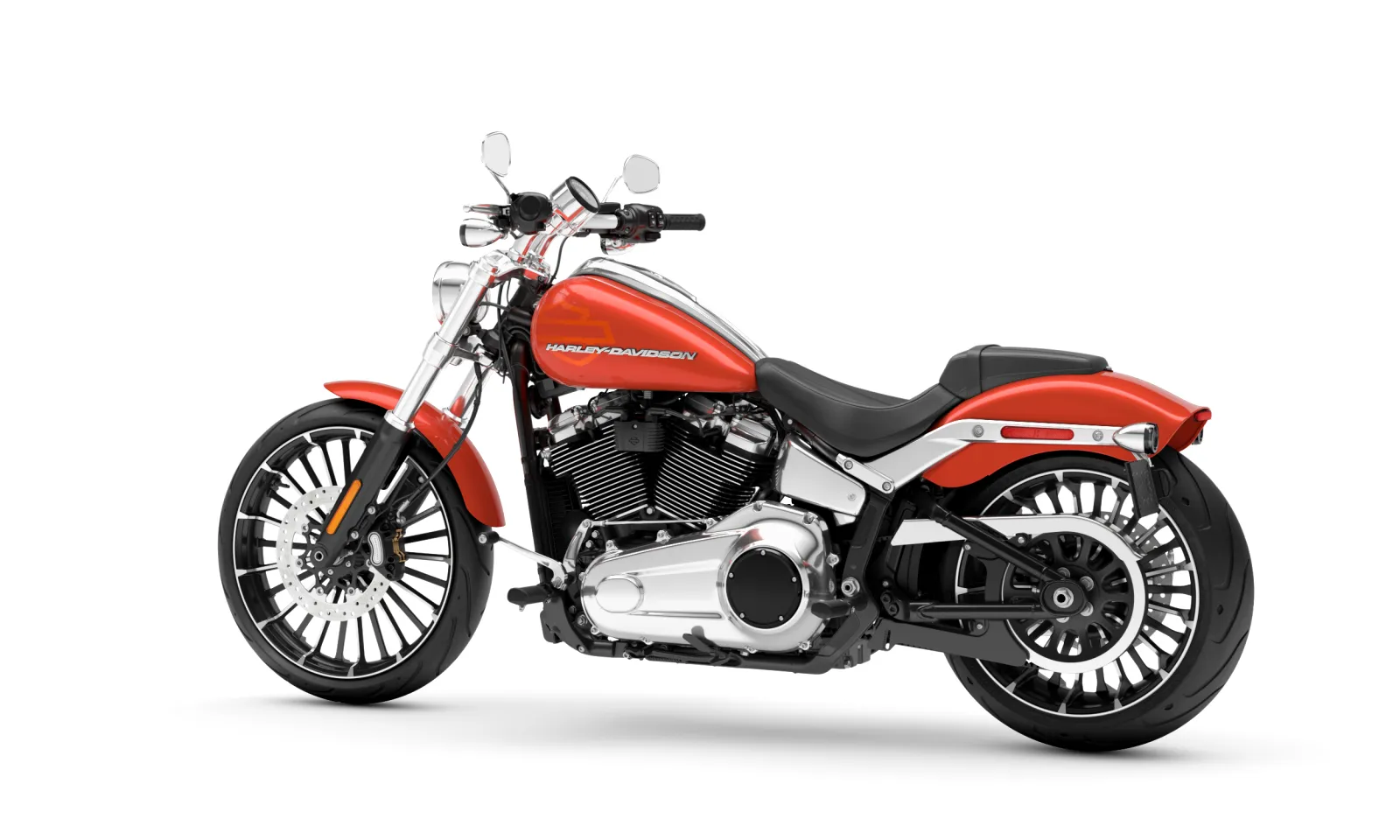

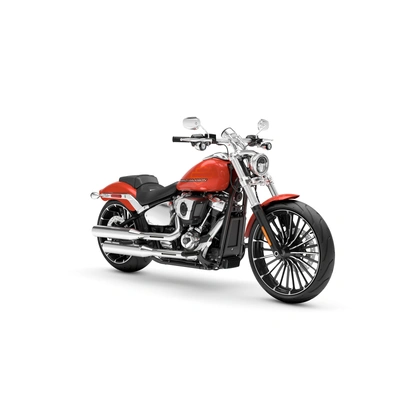

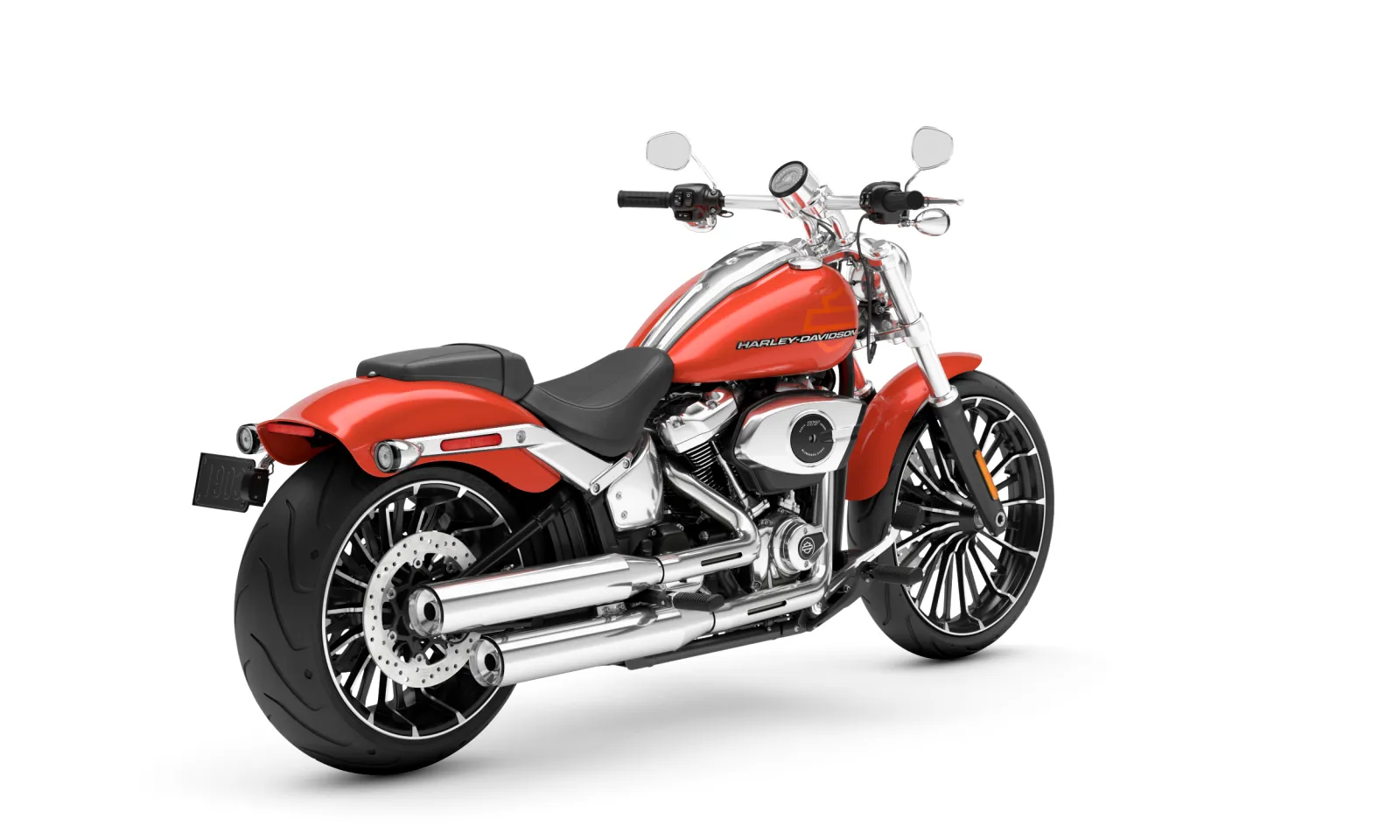

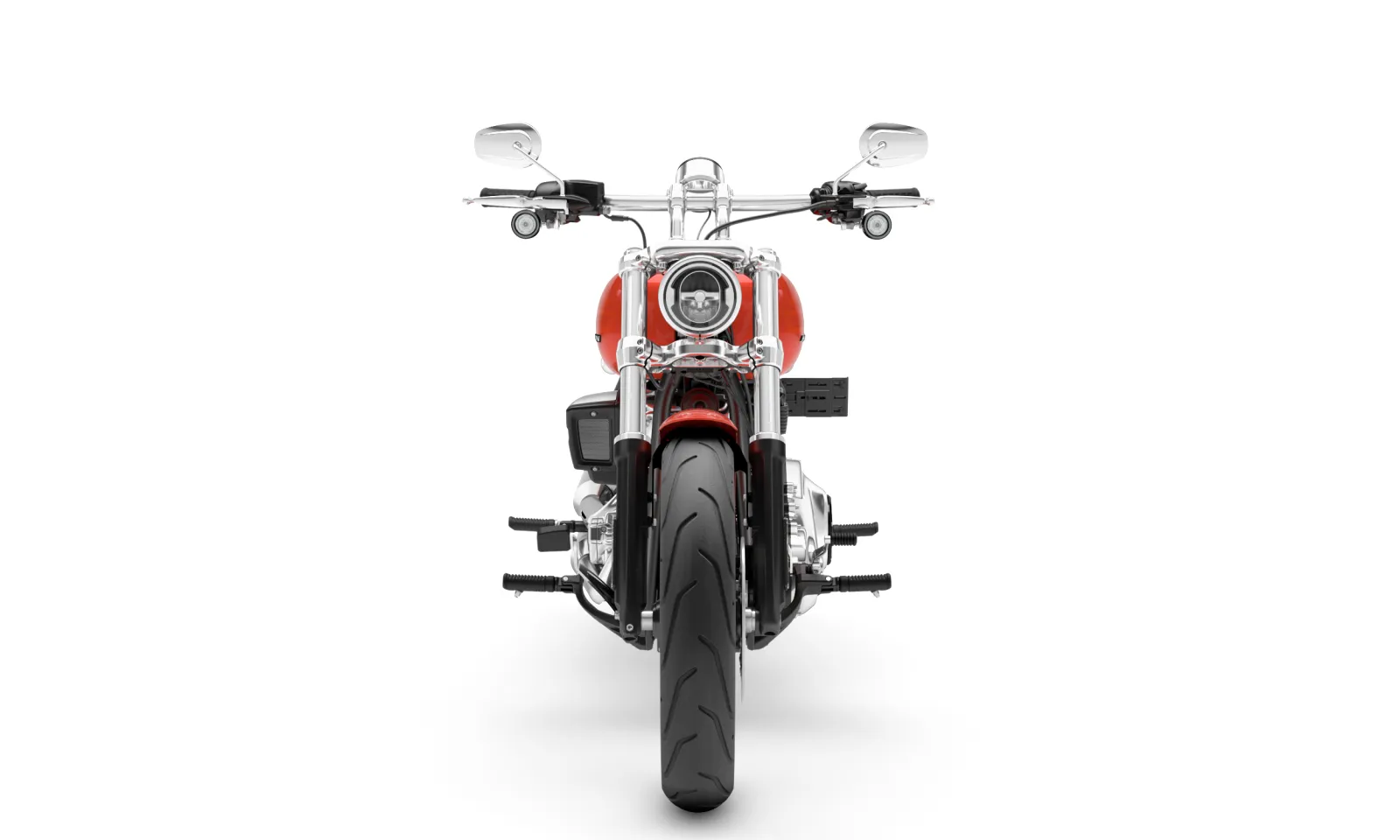

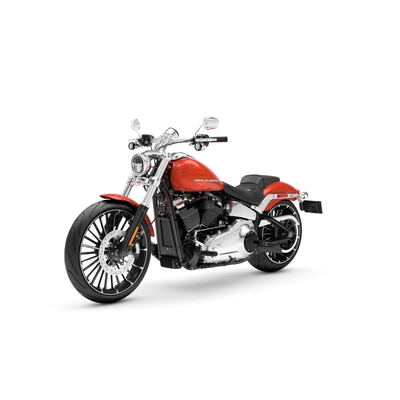

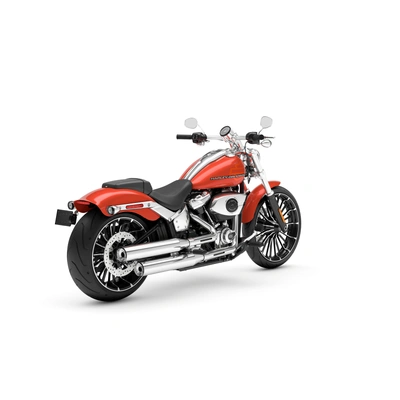

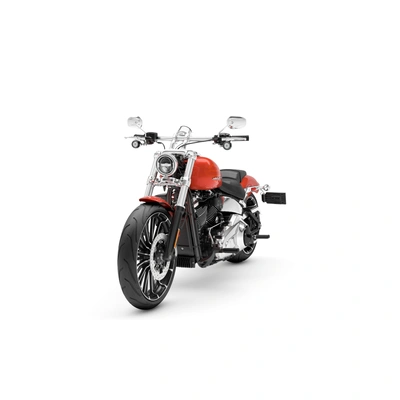

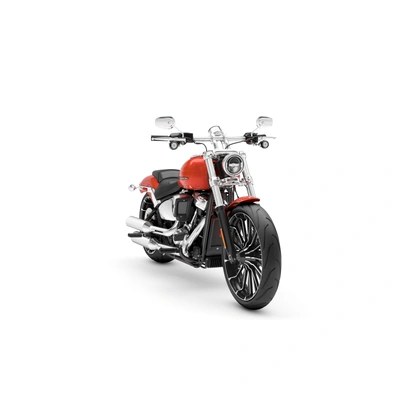

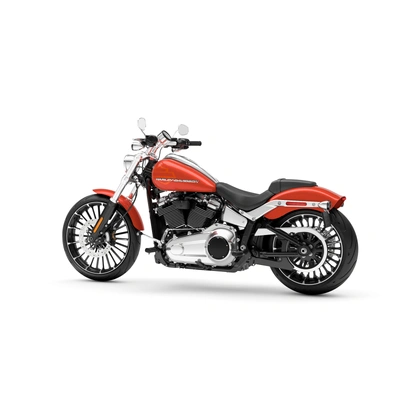

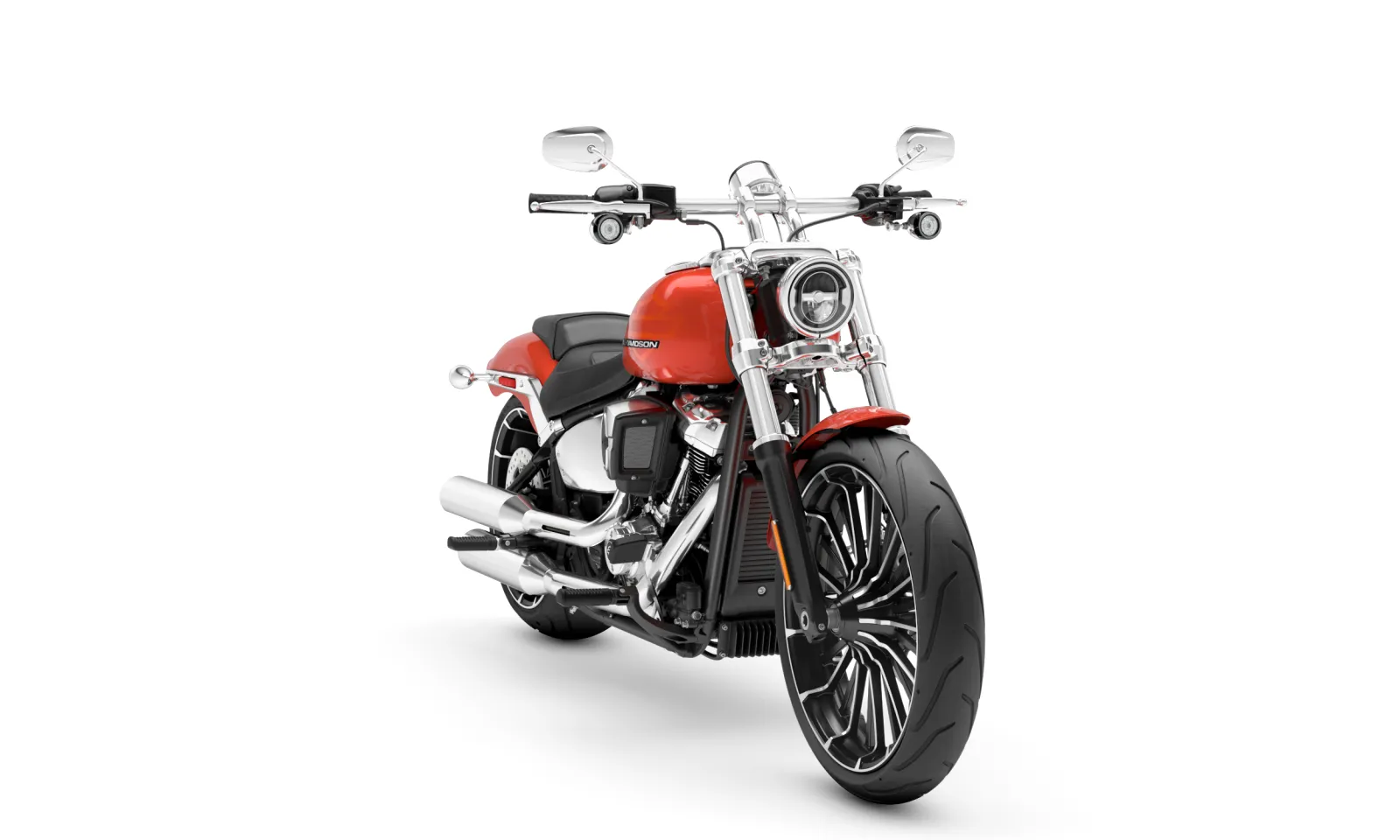

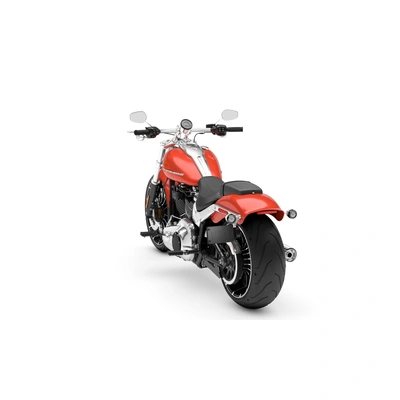

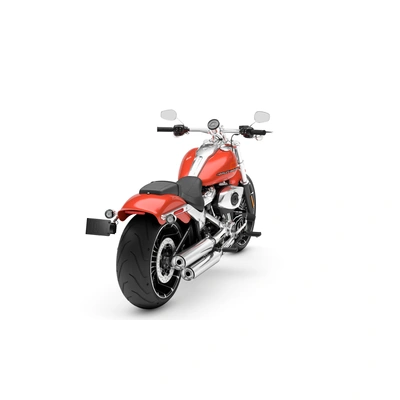

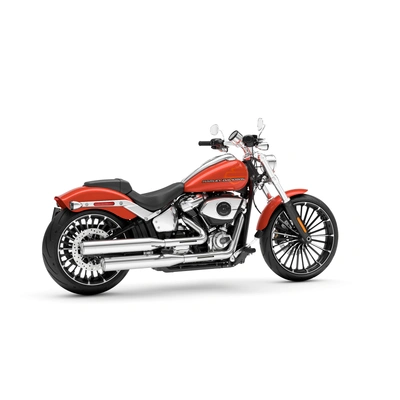

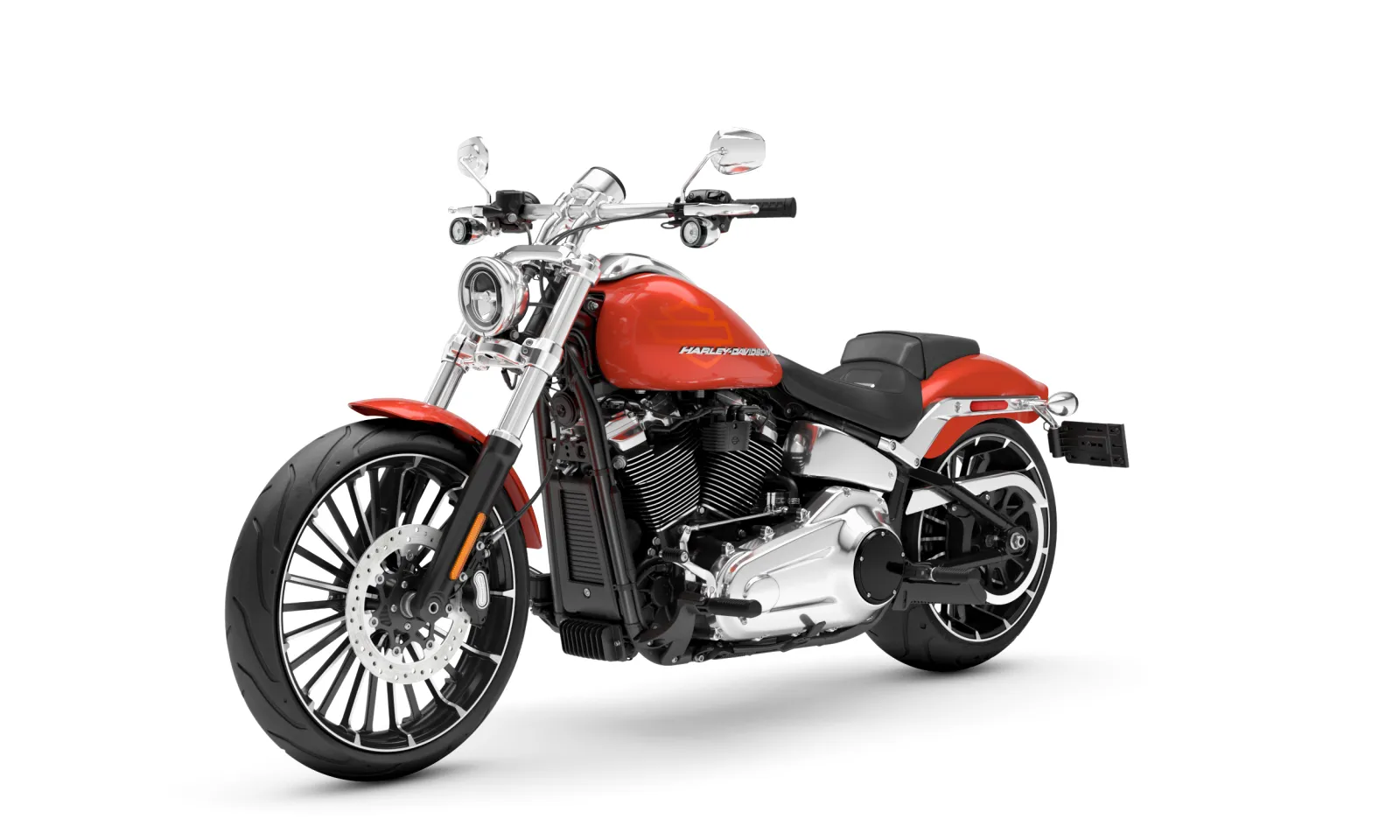

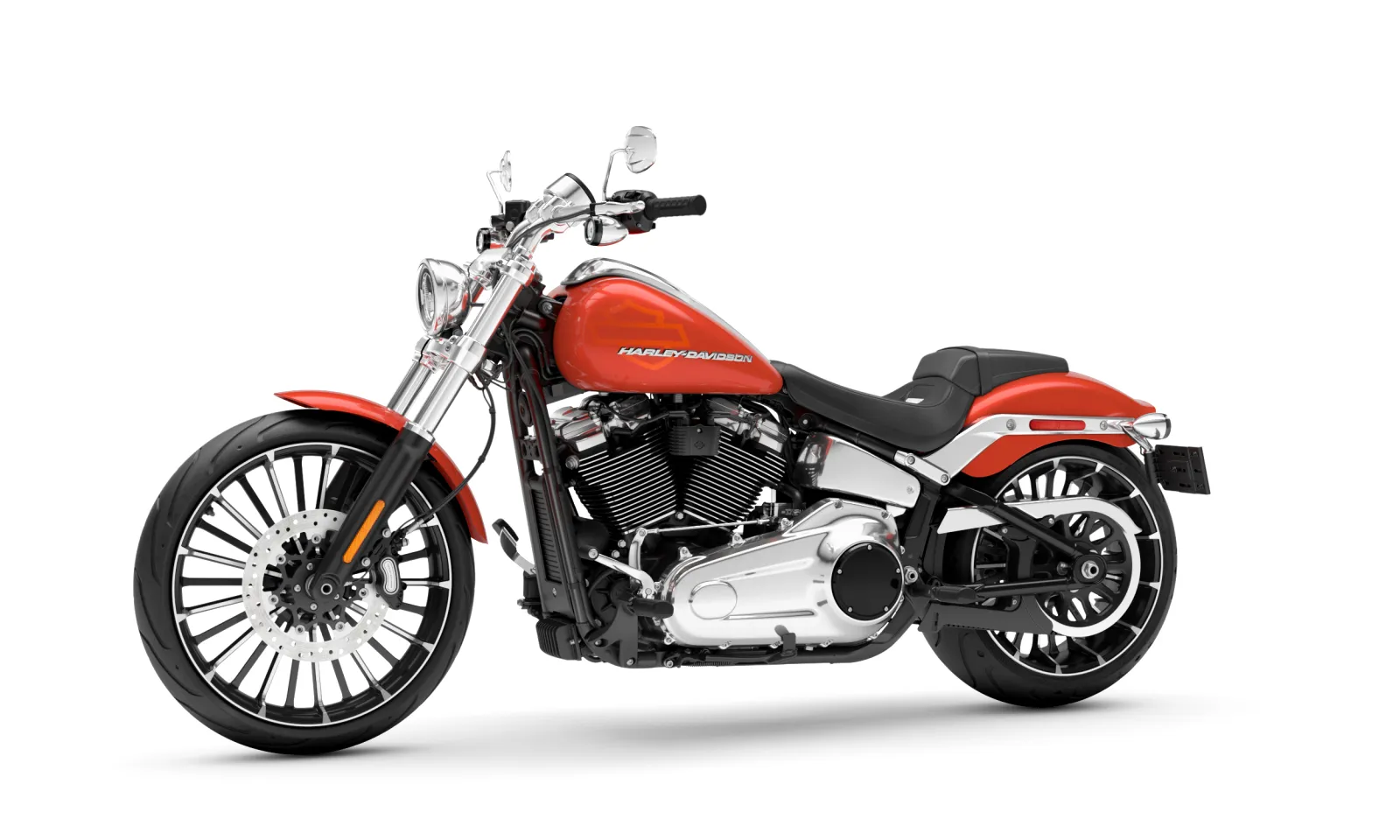

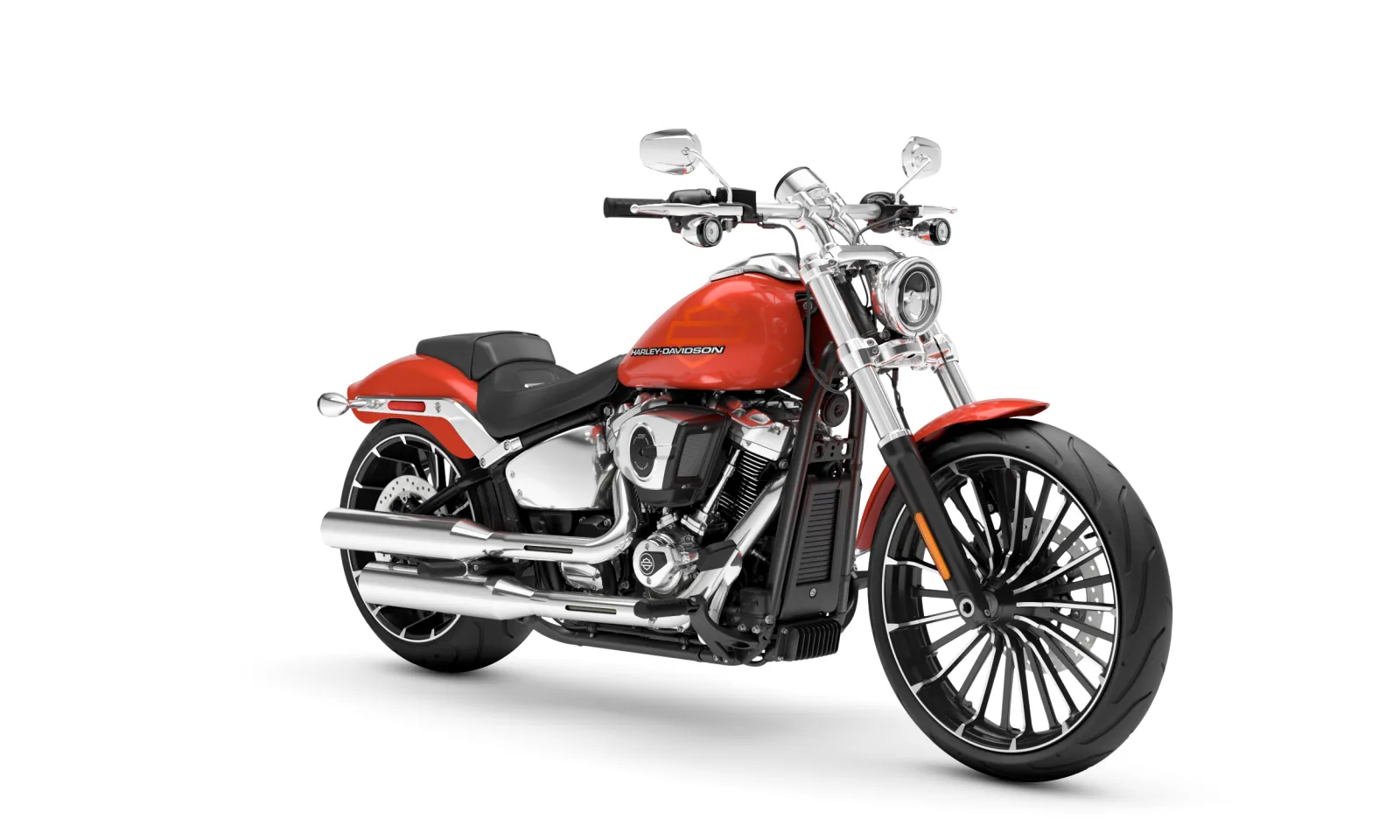

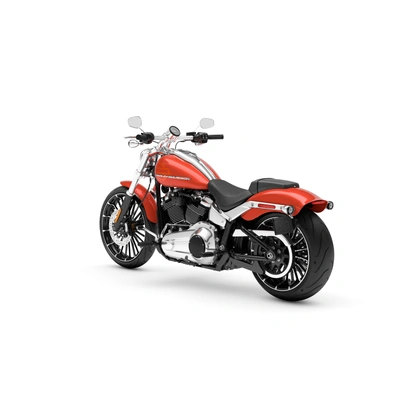

2026 Breakout™ - 360° View

Design

146 mm LED Headlamp + LED Turn Signals

Bright, clean, and impossible to ignore. A 146 mm LED headlamp lights your line, while matching LED turn signals keep your intentions clear from every angle.

Boldly Profiled 240mm Rear Tire

A massive 240mm rear tire plants the Breakout’s stance and delivers confidence that feels as solid as it looks.

34 Degrees of Pure Chopper Stance

That raked-out front end is a defining part of the Breakout silhouette and a nod to its custom heritage. It’s stretched and ready to stand apart from the factory.

Paint + Graphics Worthy of a Legend

The 2026 Breakout turns heads before the motor even fires, thanks to two new factory finishes: Blood Orange and Teal Thunder. They join Vivid Black, Dark Billiard Gray, and Iron Horse Metallic, each one bold enough to wear the Breakout name.

Performance

Big-Inch Milwaukee-Eight 117 Custom Motor

The most displacement you can get in a factory-installed, regular-production Harley-Davidson® powertrain. Torque-rich, smooth-running, and made to move.

Punchy 2-Into-2 Exhaust

Classic cruiser lines meet high-flow performance. The 2-into-2 exhaust and Touring Intake feed and free the Milwaukee-Eight 117 motor, giving it the breathing room to rip at its full potential.

Performance-Tuned Suspension

Suspension dialed for comfort and long-haul performance makes the Breakout ride as smooth as it looks, without softening its attitude.

300mm Front Disc + 533 mm Wheel

A single 300mm disc brake delivers confident stopping power while keeping the lines clean on that tall, bold 533 mm front wheel.

Innovation

102 mm Analog Gauge + Customizable Ride Modes

A clean 102 mm analog gauge with a built-in digital display delivers the info you need without clutter, keeping the view as sharp as the rest of the Breakout. Road, Rain, and Sport ride modes adjust throttle response and traction settings to match how and where you ride, giving you quick tuning that keeps it feeling exactly the way you want.

USB-C Charging to Get You There

USB-C charging comes standard, ready to keep your essentials powered from the first stop to the last. Because even a bike that owns the spotlight knows when to share a little juice.

Ride-Focused Rider Safety Enhancements

Straight Line & Cornering ABS, Straight Line & Cornering Traction Control, Straight Line & Cornering Drag-Torque Slip Control (C-DSCS), and TPMS come standard. It works in the background so you can focus on the ride.

Ergonomic Adjustable Brake Lever

Fine-tune lever reach for better control, whether you’re wearing thicker gloves or just dialing it to fit your style.

DIMENSIONS

Length
2,375 mm
Width
940 mm
Seat Height, Unladen
665 mm
Ground Clearance
115 mm
Rake
34
Trail
145 mm
Wheelbase
1,695 mm
Tire, Type
Michelin™ Scorcher 11, front and rear
Tires, Front Specification
130/60B21,63H,BW
Tires, Rear Specification
240/40R18,79V,BW
Fuel Capacity
18.9 l
Oil Capacity (w/filter)
4.7 l
Weight, In Running Order
309 kg

ENGINE

Engine+
Milwaukee-Eight™ 117 Custom
Bore
103.5 mm
Stroke
114.3 mm
Displacement
1,923 cc
Compression Ratio
10.3:1
Fuel System+
Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust
2-into-2 staggered; catalyst in muffler

PERFORMANCE

Engine Torque Testing Method
EC 134/2014
Engine Torque+
168 Nm
Engine Torque (rpm)
3000
Horsepower
103 HP / 77 kW @ 5020 rpm
Lean Angle, Right (deg.)
26.8
Lean Angle, Left (deg.)
26.8
Fuel Economy Testing Method
EU 134/2014
Fuel Economy+
5.5 l/100 km
CO2 Emissions Testing Method
EU 134/2014
CO2 Emissions
128 g/km CO2

DRIVE TRAIN

Primary Drive
Chain, 34/46 ratio
Gear Ratios (overall) 1st
9.311
Gear Ratios (overall) 2nd
6.454
Gear Ratios (overall) 3rd
4.793
Gear Ratios (overall) 4th
3.882
Gear Ratios (overall) 5th
3.307
Gear Ratios (overall) 6th
2.79

CHASSIS

Front Fork
Dual-bending valve 49 mm telescopic with aluminum fork triple clamps; dual rate spring
Rear Shocks
Hidden, free piston, coil-over monoshock; 43mm stroke; hydraulic preload adjustment
Wheels, Front Type+
Gloss black, 26-spoke cast aluminum
Wheels, Rear Type+
Gloss black, 26-spoke cast aluminum
Brakes, Caliper Type
4-piston fixed front and 2-piston floating rear
Brakes, Rotor Type
Front and rear black, Split 7-spoke floating rotors

ELECTRIC

Lights (as per country regulation), Headlamp, Tail/Stop, Front Signal Lights, Rear Turn Signals
Headlamp: All LED, low beam, high beam and signature position lamp; Tail/Stop: Bullet-style, LED stop/tail/turn signals; Front Signal Lights/Rear Turn Signals: LED Bullet Turn Signals
Gauges
102 mm analog speedometer with digital gear, odometer, fuel level, ride modes, heated gear, traction control, ABS, TPMS, cruise control, clock, trip, range and tachometer
