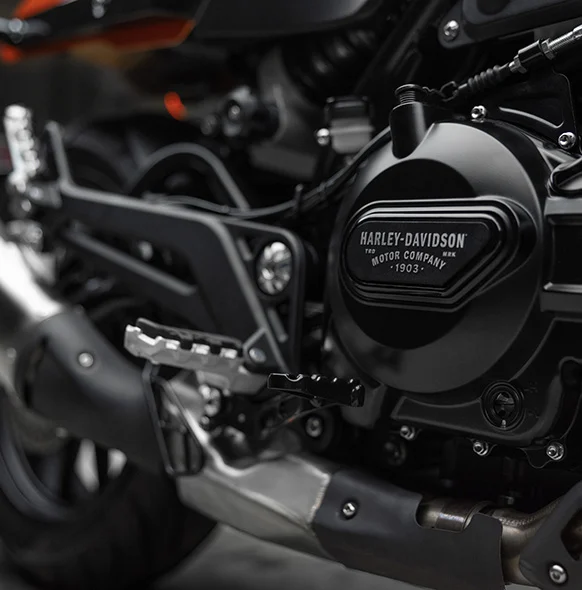

Rugged and reliable 500cc powertrain, liquid cooled for consistent and optimal performance in all riding situations.

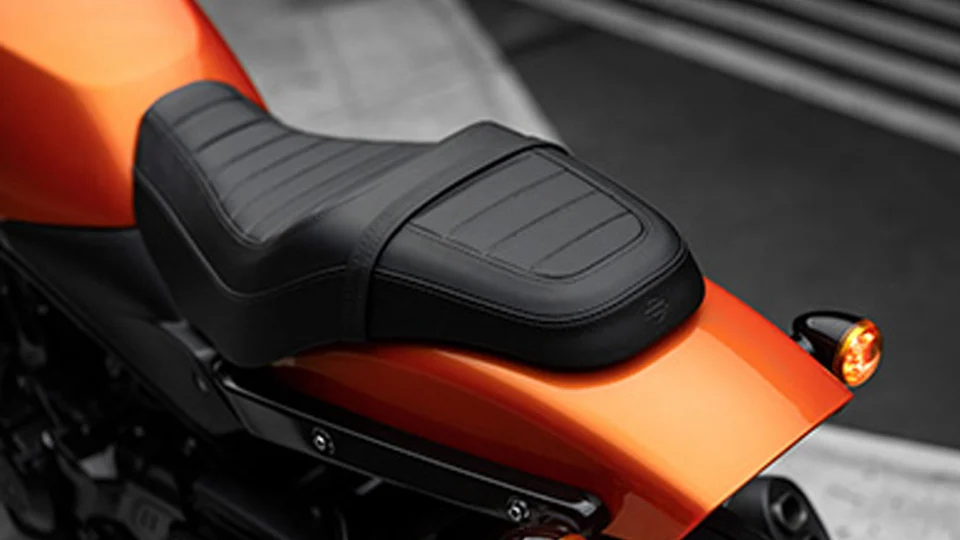

Seat width and pad thickness are designed to enhance comfort on longer rides.
Inspired by design cues from Harley-Davidson Sportster™ models
Lightweight and agile, with an engine tuned for strong mid-range torque.
Mid foot controls and a mid-rise handlebar puts the rider in a centered, comfortable posture on the bike.

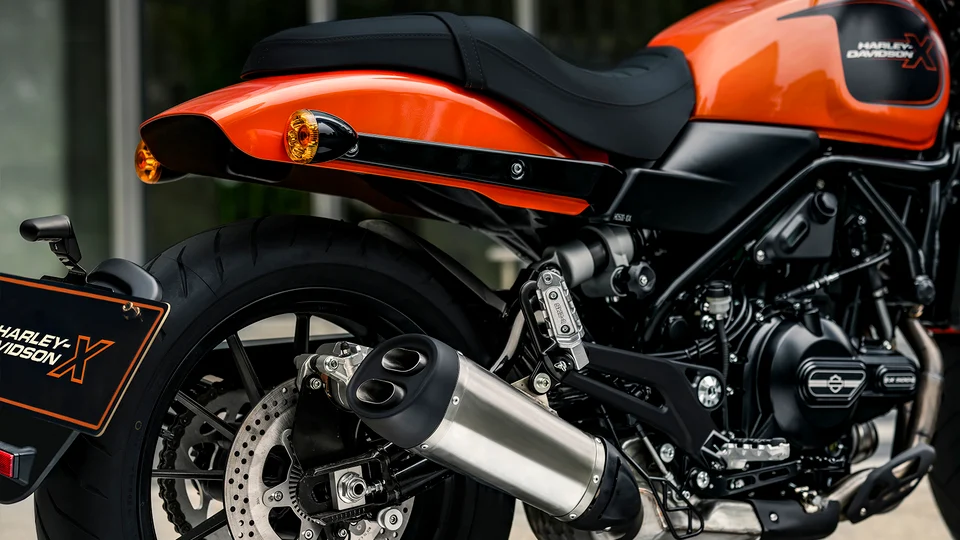

2-into-1 exhaust designed to produce a pleasing low-frequency tone.
| LENGTH | 2,135 mm |
| GROUND CLEARANCE | 153 mm |
| RAKE | 24.5 |
| TRAIL | 100.4 mm |
| WHEELBASE | 1,485 mm |
| TYRES, FRONT SPECIFICATION | 120/70-ZR17/58W |
| TYRES, REAR SPECIFICATION | 160/60-ZR17/69W |
| TYRE, TYPE | Maxxis Supermaxx ST |
| FUEL CAPACITY | 13.1L |
| OIL CAPACITY (W/FILTER) | 3.2L |
| WEIGHT, AS SHIPPED | 199 kg |
| WEIGHT, IN RUNNING ORDER | 208 kg |
| ENGINE | Liquid-cooled, Parallel-Twin, 500cc |
| BORE | 69 mm |
| STROKE | 66.8 mm |
| DISPLACEMENT | 500 cc |
| COMPRESSION RATIO | 11.5:1 |
| FUEL SYSTEM | Electronic Sequential Port Fuel Injection (ESPFI) |
| EXHAUST | 2 into 1 short single, 3 catalyst |
| ENGINE TORQUE TESTING METHOD | GB/T20076-2006, GB/T5363-2008 |
| ENGINE TORQUE | 46 Nm |
| ENGINE TORQUE (RPM) | 6000 |
| HORSEPOWER | 47 HP / 35 kW @ 8500 rpm |
| LEAN ANGLE, RIGHT (DEG.) | 46.9 |
| LEAN ANGLE, LEFT (DEG.) | 49.5 |
| FUEL ECONOMY TESTING METHOD | WMTC |
| FUEL ECONOMY | 4.85 l/100 km |
| CO2 EMISSIONS TESTING METHOD | WMTC |
| CO2 EMISSIONS | 112 g/km CO2 |
| PRIMARY DRIVE | Chain, 74/38 |
| GEAR RATIOS (OVERALL) 1ST | 2.85 |
| GEAR RATIOS (OVERALL) 2ND | 1.95 |
| GEAR RATIOS (OVERALL) 3RD | 1.56 |
| GEAR RATIOS (OVERALL) 4TH | 1.333 |
| GEAR RATIOS (OVERALL) 5TH | 1.33 |
| GEAR RATIOS (OVERALL) 6TH | 1.08 |
| FRONT FORK | 50mm upside down rebound adjustable |
| REAR SHOCKS | Oil and gas separation type, rebound damping adjustable, preload adjustable shock absorber |
| WHEELS, FRONT TYPE | Cast aluminium |
| WHEELS, REAR TYPE | Cast aluminium |
| BRAKES, TYPE | Front floating, rear solid |
| BRAKES, CALIPER TYPE | 4-piston fixed front and 1-piston floating rear |
| LIGHTS (AS PER COUNTRY REGULATION), INDICATOR LAMPS | All LED, low beam, high beam and signature position lamp. All LED Tail/Stop, front signal lights and rear turn signals. |
| GAUGES | Combined electronic instrument stepper motor indicating vehicle speed, digital indicates rpm, hour, total trip, two trips (A + B), km/mile indication |
