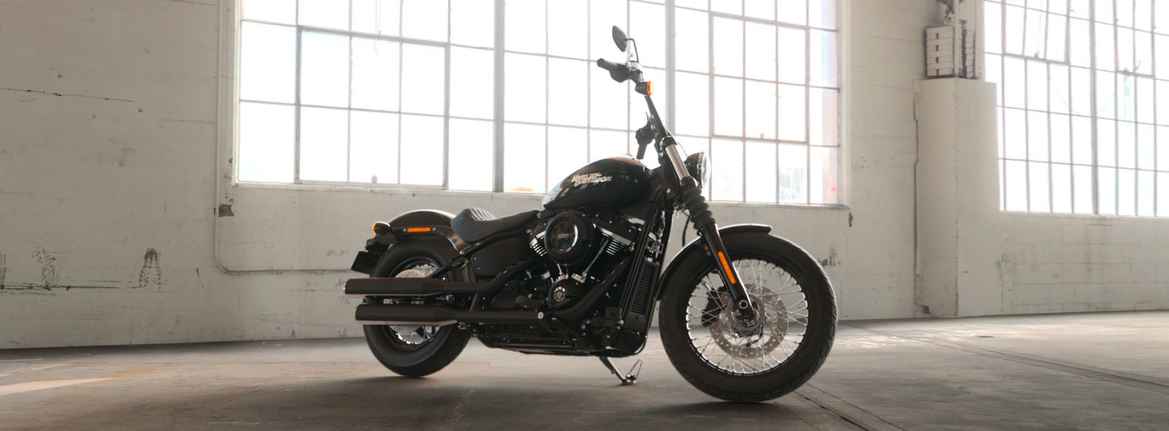

2019 Street Bob - Morgan & Wacker Harley-Davidson®

REBEL WITHOUT A PAUSE

Starting at $23,495AUD / $24,495NZD

*Price is for Vivid Black (or solid colour where Vivid Black is not offered). Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2018 and 2019 models.

High Performance Front Suspension

Sophisticated suspension technology provides the performance of a racing-style cartridge fork for reduced weight with linear damping characteristics.

High Performance Rear Mono Shock

Easily adjustable mono-shock rear suspension allows for dynamic cornering while preserving the hardtail look.

Milwaukee-Eight® 107 Engine

A powerful, smooth-running Big-Twin engine with crisp throttle response and a pure, soul-satisfying rumble.

Minimalist, Modern Technology

You get digital instrumentation, keyless ignition, a USB charging port, and Signature LED forward lighting.

Softail® Frame

The reinvented frame retains the classic Softail® lines, but its lightweight design and stiffness translate to a responsive ride unlike anything you've felt before.

Stripped-Down Raw Bobber Style

Features mini-ape handlebars, spoked wheels, hidden digital instrumentation, and chopped fenders.

Pricing⁵

Vivid Black $23,495^AUD

Engine

Engine ² Milwaukee-Eight^® 107
Bore 100 mm
Stroke 111.1 mm
Displacement 1,745 cc
Compression Ratio 10.0:1
Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
Exhaust 2-into-2 offset shotgun; catalyst in muffler

Dimensions

Length 2,320 mm
Seat Height, Unladen 680 mm
Ground Clearance 125 mm
Rake (steering head) (deg) 30
Trail 157 mm
Wheelbase 1,630 mm
Tyres, Front Specification 100/90B19,57H,BW
Tyres, Rear Specification 150/80B16,77H,BW
Fuel Capacity 13.2 l
Oil Capacity (w/filter) 4.7 l
Weight, As Shipped 286 kg
Weight, In Running Order 297 kg

Performance

Engine Torque Testing Method 134/2014
Engine Torque ³ 145 Nm
Engine Torque (rpm) 3,000
Lean Angle, Right (deg.) 28.5
Lean Angle, Left (deg.) 28.5

Drivetrain

Primary Drive Chain, 34/46 ratio
Gear Ratios (overall) 1st 9.311
Gear Ratios (overall) 2nd 6.454
Gear Ratios (overall) 3rd 4.793
Gear Ratios (overall) 4th 3.882
Gear Ratios (overall) 5th 3.307
Gear Ratios (overall) 6th 2.79

Chassis

Wheels, Front Type Gloss Black, Steel Laced
Wheels, Rear Type ⁷ Gloss Black, Steel Laced
Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear

Electric

Lights (as per country regulation), Indicator Lamps ⁶ High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
Gauges 2.14 inch viewable area LCD display with speedometer, gear, odometer, fuel level, clock, trip, range and tachometer indication

Availability of colours may vary from dealer to dealer and is subject to change without further notice.
Recommended 95 octane or higher fuel (R+M)/2.
Values shown are nominal. Performance may vary by country and region.
See motorcycle owner’s manual for complete details.
All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2018 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria.
Security system includes immobiliser and siren.
Standard and optional wheels may vary by country and region.
Model specifications, including fitted parts and accessories vary by country and region.
