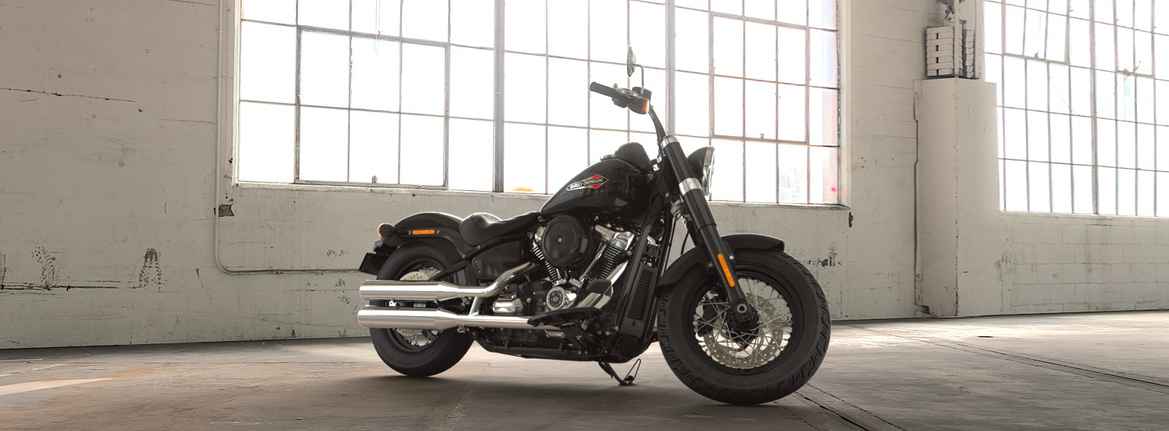

THE CLASSIC BOBBER HAS BEEN REBORN
*Overseas model shown. The visual appearance and specifications of vehicles may vary by market and may differ from vehicles manufactured and delivered. Please contact our Call Centre on 1800 464258 AU / 0800464258 NZ for details. All comparisons made are between original equipment 2017 and 2018 models.

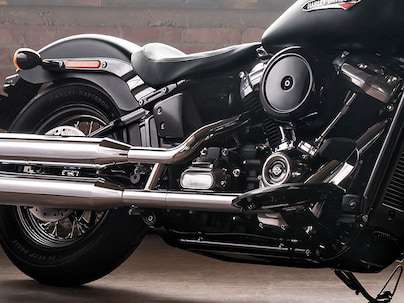

Dark Polished Finishes
Low-Slung Tuck-And-Roll Seat
Milwaukee-Eight® Big Twin Engine
All-New Softail® Frame
Signature LED Forward Lighting
High Performance Front Suspension
High Performance Rear Mono Shock
- Vivid Black $26,250AUD
- Engine 2 Milwaukee-Eight® 107
- Bore 100 mm
- Stroke 111.1 mm
- Displacement 1,745 cc
- Compression Ratio 10.0:1
- Fuel System Electronic Sequential Port Fuel Injection (ESPFI)
- Exhaust 2-into-2 shotgun; catalyst in muffler
- Length 2,310 mm
- Seat Height, Unladen 660 mm
- Ground Clearance 120 mm
- Rake (steering head) (deg) 30
- Trail 147 mm
- Wheelbase 1,630 mm
- Tyres, Front Specification 130/90B16,53H,BW
- Tyres, Rear Specification 150/80B1677H,BW
- Fuel Capacity 18.9 l
- Oil Capacity (w/filter) 4.7 l
- Weight, As Shipped 291 kg
- Weight, In Running Order 304 kg
- Engine Torque Testing Method J1349
- Engine Torque 3 145 Nm
- Engine Torque (rpm) 3,000
- Lean Angle, Right (deg.) 27.4
- Lean Angle, Left (deg.) 27.4
- Primary Drive Chain, 34/46 ratio
- Gear Ratios (overall) 1st 9.311
- Gear Ratios (overall) 2nd 6.454
- Gear Ratios (overall) 3rd 4.793
- Gear Ratios (overall) 4th 3.882
- Gear Ratios (overall) 5th 3.307
- Gear Ratios (overall) 6th 2.79
- Wheels, Front Type Gloss Black, Steel Laced
- Wheels, Rear Type 7 Gloss Black, Steel Laced
- Brakes, Caliper Type 4-piston fixed front and 2-piston floating rear
- Lights (as per country regulation), Indicator Lamps 6 High beam, turn signals, neutral, low oil pressure, engine diagnostics, ABS, security, low battery voltage, low fuel
- Gauges 5 inch analog speedometer with digital gear, odometer, fuel level, clock, trip, range and tachometer indication
- Availability of colours may vary from dealer to dealer and is subject to change without further notice.
- Recommended 95 octane or higher fuel (R+M)/2.
- Values shown are nominal. Performance may vary by country and region.
- See motorcycle owner’s manual for complete details.
- All models include security system *, 24 months Harley Assist, and 12 months International HOG membership. Price advertised is the maximum dealer ride away price. Offer ends Aug 31, 2017 unless extended. For Australia the ride away price includes 12 months private registration, 12 months Compulsory Third Party Insurance, Dealer Delivery and Stamp Duty ^. Optional extras not included. Full details on pricing can be obtained from your local authorised dealer. ^Ride Away pricing for Australia is based on a purchaser with a good riding record- may be higher for other purchasers that do not meet this criteria
- Security system includes immobiliser and siren.
- Standard and optional wheels may vary by country and region.
- Model specifications, including fitted parts and accessories vary by country and region.
Industrial Gray Denim
Bonneville Salt Denim
